Dual Spindle CNC Turning Centers

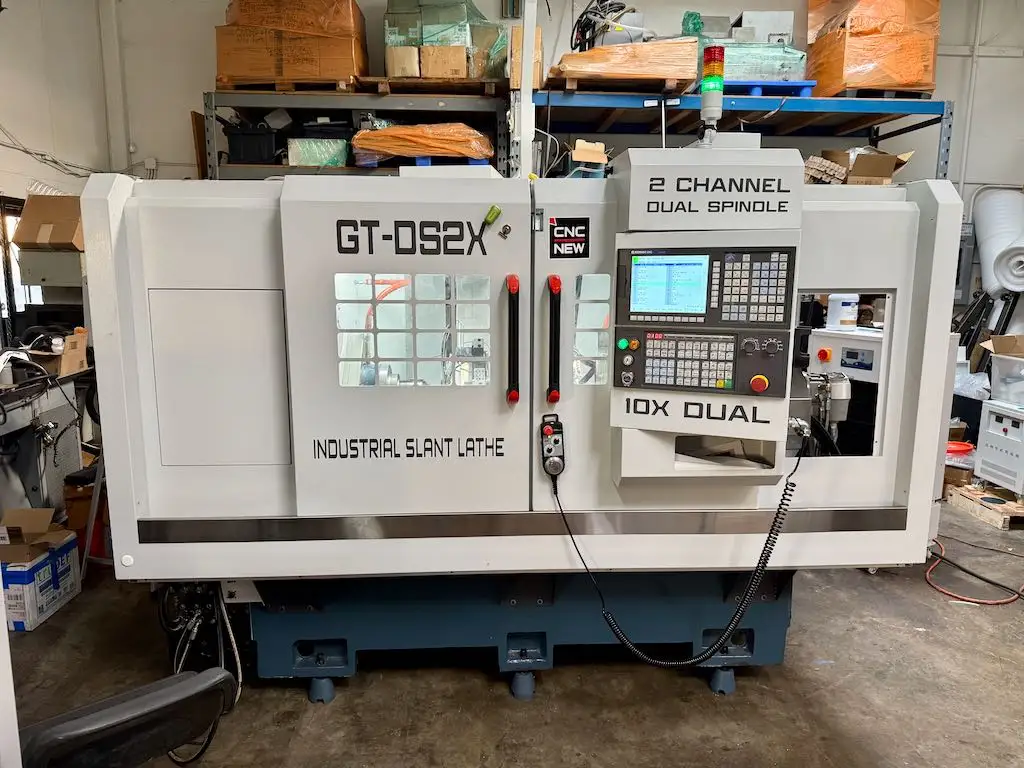

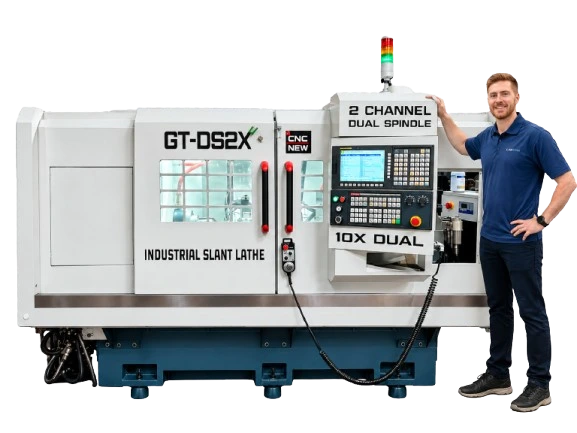

GT-DS2X DUAL SPINDLE LATHE
High-efficiency, twin-spindle CNC turning with independent sliding headstocks. Purpose-built to eliminate secondary operations on parts up to 2" (52 mm) diameter — powered by the advanced 10-axis, dual-channel GSK 988TD CNC control.
The GT-DS2X Difference: Dual-Spindle Speed, Rigidity & Done-in-One Versatility
Built to eliminate multi-setup handling, the GT-DS2X dual-spindle architecture delivers precision, speed, and versatility in one complete system — front and back work finished in a single cycle.
Simultaneous Machining
Twin independently programmable gang tool slides paired with programmable Z-axis sliding headstocks allow simultaneous OD/ID cutting and back-working on both spindles.

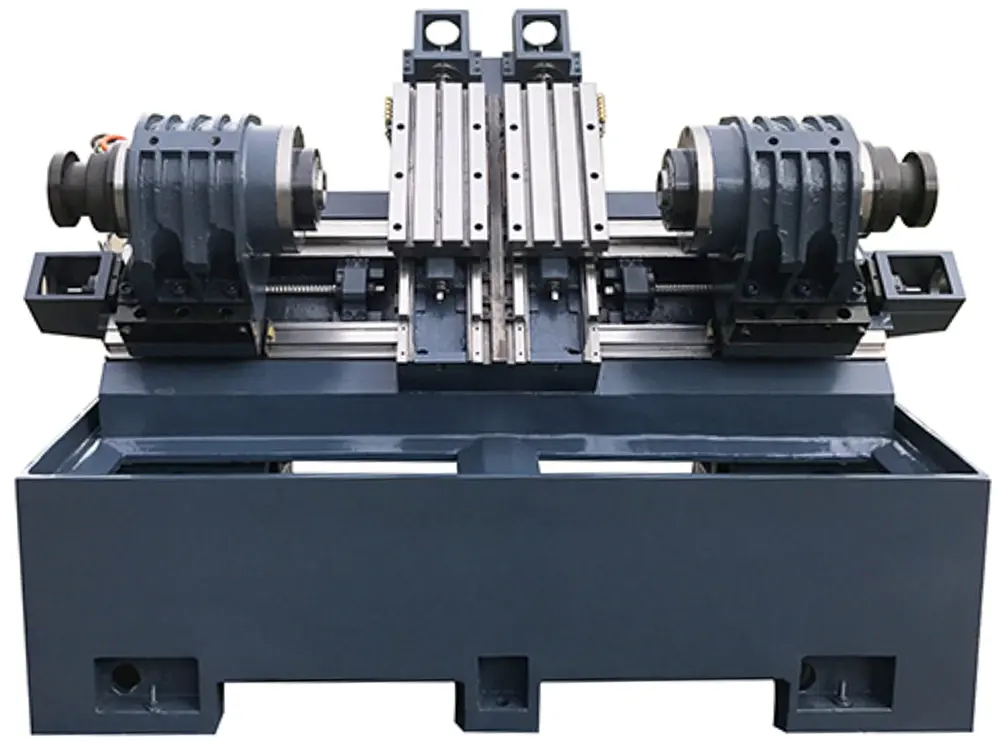

45° Slant Bed Casting
A single-piece heavy cast-iron base with a 14" rail span dampens vibration during aggressive cuts, providing extreme rigidity and thermal stability.
Twin 10 HP Spindles
Opposed A2-5 integral spindles run up to 4,500 RPM with hydraulic collet closers and full C-axis orientation down to 0.001° indexing.
GSK 988TD Control
Advanced dual-channel control supporting up to 10 axes and 4 spindles, built on an ARM+DSP dual-core architecture with high-speed GSK-Link bus communication.
Compact Footprint
Pack heavy-duty twin-spindle production into a lean 106" × 65" footprint — maximizing your shop's revenue per square foot.
24/7 Automation
Turnkey ready. Integrates with bar feeders, robotic arm loaders, and vibratory bowl feeders — because both sides are finished in the machine, automating the load runs complete parts lights-out.
Done-in-One Dual-Spindle Turning — The GT-DS2X 10-Axis Gang Tool Lathe
Cut cycle times by eliminating secondary operations. The GT-DS2X turns, bores, mills, and threads both sides of parts up to 2" diameter in one continuous cycle. It is not just a lathe; it's a fully capable 10-axis dual-spindle turning center designed for complete part machining without a second setup.
Why Manufacturers Trust CNC New Gang Tool Lathes — 30+ Years of Excellence
The industry's leading specialist in high-production gang tool lathes and turning centers.
Rapid-ship replacement parts and factory engineering support keep your machines running.
Industrial-grade motion systems integrated on heavy cast frames at a highly competitive price.
Direct sales, applications, service, and repairs backed by our Southern California headquarters.
General Questions About the GT-DS2X Dual Spindle Gang Tool Lathe
See more details: GT-DS2X Specifications, Gallery, FAQs, Support & Warranty, and Custom Options.
| GT-DS2X DUAL SPINDLE 10-AXIS GANG TOOL LATHE SPECIFICATIONS | ||
|---|---|---|
| Specification | Standard / S.A.E. | Metric |
| Capacities | ||
| Max. Turning Over Carriage | 7 in | 180 mm |
| Max. Swing Over Bed | 19.6 in | 500 mm |
| Max. Turning Length Between Spindles | 29.5 in | 750 mm |
| Bed Tilting Angle | 45° | 45° |
| Dual Spindles | ||
| Spindle Nose | A2-5 | A2-5 |
| Spindle Chuck | 6 in | 154.4 mm |
| Spindle Bore | 2.2 in | 56 mm |
| Bar Capacity | 2 in | 52 mm |
| Max. Spindle Speed | 4,500 RPM | 4,500 RPM |
| Collet Closer | Hydraulic Actuator | |
| Spindle Type | Integral Machine Spindle, 10 HP | 7.5 kW |
| Travels & Feed Rates | ||
| X1 / X2 Travel | 20.4 in | 520 mm |
| Z1 / Z2 Travel | 15.7 in | 400 mm |
| Rapid Traverse X & Z | 945 in/min | 24 m/min |
| Max. Axis Feed Rate | 400 in/min | 10.15 m/min |
| Base & Structure | ||
| Integral Casting | One-Piece Construction | 45° Slant Angle |
| Rail Span | 14 in | 362 mm |
| Auto Lubrication | Linear Rails & Ball Screws | |
| Headstock | Cast Iron | |
| Precision | ||
| Positional Repeatability | ±0.0001 in | ±0.00254 mm |
| Positional Accuracy | ±0.0001 in | ±0.00254 mm |
| Positional Resolution | ±0.00005 in | ±0.00127 mm |
| Spindle Runout | 0.00005 in | 0.00127 mm |
| C-Axis Indexing | 0.001° Increment | 360,000 Radial Positions |
| Coolant & Power Requirements | ||
| Coolant Capacity | 26 gallons | 100 Liters (Twin Tanks, Twin Pumps) |
| Coolant Pump | 3/4 HP | 0.5 kW |
| Power Required | 20 KVA, 208–240 VAC 3-Phase | |
| Chip Conveyor | Optional, Side or Rear Mount | |
| Machine Dimensions | ||
| Machine Height | 74 in (6.2 ft) | 1,890 mm |
| Sheet Metal Length | 106 in (8.8 ft) | 2,700 mm |
| Sheet Metal Width | 65 in (5.4 ft) | 1,670 mm |
| Machine Weight | 7,500 lbs. | 3,400 kgs |

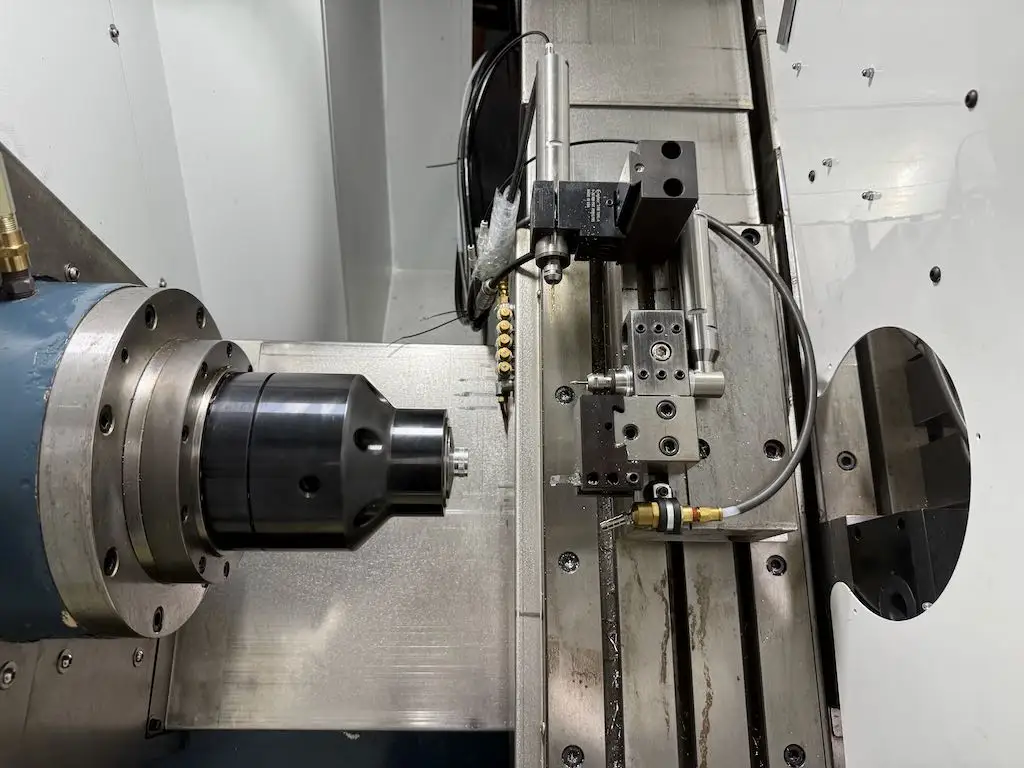

The GT-DS2X has two spindles on programmable Z-axis sliding headstocks, each with its own independently programmable gang slide. The part is machined on the front side in the first spindle, handed off, and finished on the back side in the second spindle — so a part that would normally need two setups or a second machine comes off complete in one cycle.
Both spindles have an A2-5 spindle nose, a 2.2″ (56 mm) spindle bore and a 2″ (52 mm) bar capacity, with a 6″ chuck and hydraulic collet closer. Each is a 10 HP integral machine spindle running up to 4,500 RPM.
The GT-DS2X runs the GSK 988TD dual-channel CNC control, which supports up to 10 axes and 4 spindles. It uses industry-standard G-code, so machinists who already know Fanuc-style programming pick it up quickly, and it is supported by our custom Autodesk Fusion 360 post-processors.
Yes. Optional servo-driven tool spindles are available as axial, radial or Y-axis modules. Combined with 0.001° C-axis indexing, they let the machine mill, drill, bore, broach, gear hob and tap features in the same cycle as the turning work.
The machine measures 106″ × 65″ (2,700 × 1,670 mm), stands 74″ tall and weighs 7,500 lbs. It requires 20 KVA at 208–240 VAC three-phase. A chip conveyor is optional and can be mounted on the side or the rear to suit your floor layout.
The maximum turning length between spindles is 29.5″ (750 mm), with a 19.6″ swing over the bed and 7″ maximum turning diameter over the carriage. X travel is 20.4″ and Z travel is 15.7″ on each side, with 945 in/min rapids.

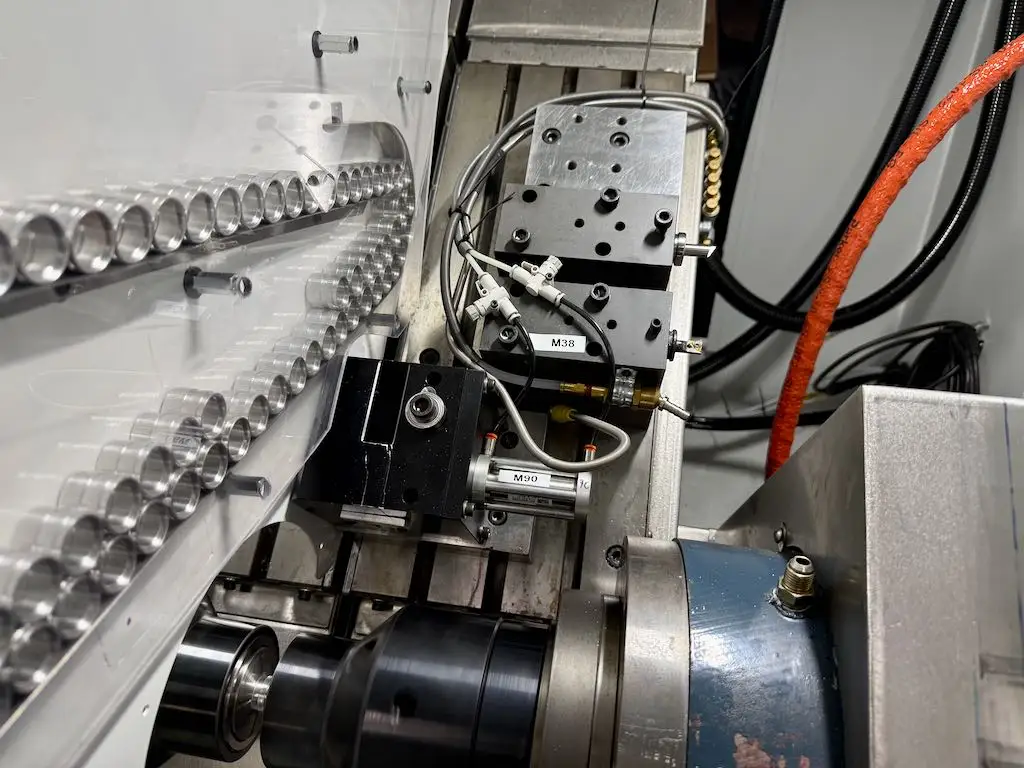

Yes. The GT-DS2X can be quoted as a turnkey cell with a vibratory bowl feeder, a robotic arm loader or a bar feeder. Because both sides of the part are finished inside the machine, automating the load is all it takes to run complete parts unattended.
It lists ±0.0001″ positional repeatability and accuracy, ±0.00005″ positional resolution and 0.00005″ spindle runout, built on a single-piece 45° slant casting with auto-lubricated linear rails and ball screws.
Every GT-DS2X purchase includes hands-on training from our engineering team in Santa Ana, California — the same people who built, configured, and programmed your machine. We cover control operation, G-code programming, tooling setup for both gang slides, and maintenance. Post-sale, our local SoCal team provides direct phone and remote diagnostic support, and we maintain a large on-site spare parts inventory for rapid dispatch.
Iron-Clad Warranty & Lifetime Support
Your production doesn't stop, and neither do we. Every GT-DS2X is backed by our comprehensive warranty and supported directly from our Santa Ana, California headquarters — no overseas time zones, no outsourced call centers.
The CNC New Commitment
"Purchasing a machine from an importer often means you are on your own after the sale. We have over 30 years of PLC development and CNC integration experience under one roof. We build them. We warrant them. We support them for life."
