Robot Workstation — The GSK RB08Q1 6-Axis CNC Machine Loader
The GSK RB08Q1 brings high-speed automation to your shop floor with a highly durable, compact design. Engineered for the rapid loading and unloading of disk and shaft workpieces, it seamlessly integrates with your choice of GSK, Haas, or Fanuc controls.
- 1,440 mm Maximum Reach: A lightweight 75 kg frame and massive 1,440 mm working radius deliver lightning-fast, highly repeatable part handling.
- IP65 Shop-Floor Ready: Fully sealed against dust and cutting fluids to reliably withstand the harshest manufacturing environments.
- Smart Part Loading: Features a rotary lifting table and three-point inner/outer positioning that allows for on-the-fly adjustments without replacing parts.
- Intuitive Teach-In Programming: Manually move the arm to memorize positions, allowing for complete setup and pick-and-place automation in as little as a single day.
GSK RB08Q1 ROBOTIC WORKSTATION
High-Speed, Seamless Automation for CNC Applications
Overview
Keep your spindle running and your operators safe with the GSK RB08Q1. Purpose-built for CNC machine tending, this high-velocity system easily manages payloads up to 8 kg (17.6 lbs) while boasting a massive 1,440 mm working reach.
Engineered for the harsh realities of the shop floor, the RB08Q1 carries an IP65 rating for superior dust and water resistance. It is available in specialized models tailored for either disk-shaped or shaft workpieces. The integrated rotary lifting table supports both single-part lifting and continuous conveyor lines, while the intelligent three-point inner/outer positioning method allows you to make rapid, on-the-fly adjustments without ever needing to swap out parts.
Main Features
- › High-Speed Agility: The lightweight 75 kg (165 lbs) frame is engineered for incredibly fast, highly repeatable movements.
- › IP65 Durability: Fully sealed against shop dust and cutting fluids, making it the perfect solution for demanding machining environments.
- › Flexible Mounting: Can be installed directly on the floor, ceiling, or wall to maximize your available workspace.
Programming & Integration
The RB08Q1 is built for rapid deployment. It interfaces effortlessly with a variety of machines and controls, allowing you to complete programming from scratch in as little as a single day. By using the intuitive “teach-in” mode, you can simply move the robotic arm manually, and the system will instantly memorize the exact path. Because both the CNC control and the robot are engineered by GSK, communication between the two is flawlessly seamless — giving you the ultimate reliability of a single-source provider.
Get a GSK RB08Q1 Quote →
Ready to eliminate bottlenecks and empower lights-out production?
How It Works — Plug In, Program & Produce
From Unboxing to Lights-Out Production in as Little as One Day
Single-Day Setup
Unlike complex robotic systems that demand weeks of integration work, the RB08Q1 is engineered for rapid deployment. Using the intuitive teach-in mode, an operator physically guides the arm through each pick-and-place position — the system memorizes the path instantly. Most customers complete full programming from scratch within a single shift.
Universal Compatibility
The RB08Q1 interfaces seamlessly with GSK, Haas, and Fanuc CNC controls, eliminating costly proprietary lock-in. Because the robot and the CNC controller are both engineered by GSK, communication is flawlessly synchronized — giving you the reliability of a single-source provider without sacrificing flexibility.
Runs 24/7, Fully Unattended
With IP65 sealing against dust and cutting fluids, a rotary lifting table for continuous conveyor integration, and three-point inner/outer positioning for on-the-fly adjustments, the RB08Q1 is built to keep your spindle running through every shift — no operator required.
Get a GSK RB08Q1 Quote →Why Manufacturers Trust CNC New Gang Tool Lathes — 30+ Years of Excellence
- 30+ Years of Expertise: The industry's most complete line of high-production gang tool lathes and turning centers.
- Maximized Uptime: Rapid access to spare parts and expert service to keep your production running.
- Premium Builds, Better ROI: World-class components, including Japanese NSK ball screws, at a highly competitive price.
- Lifetime Local Support: Direct sales, service, and repairs backed by our Southern California headquarters.
General Questions About GSK RB08Q1 Robotic Workstation
See more details: GSK RB08Q1 Gallery, FAQs, Support & Warranty, and Custom Options.
| GSK RB08Q1 TECHNICAL SPECIFICATIONS | |
|---|---|
| Specification | Value |
| General | |
| Model | GSK RB08Q1 |
| Axes | 6-Axis |
| Payload Capacity | 8 kg / 17.6 lbs |
| Machine Weight | 75 kg / 165 lbs |
| Drive Method | AC Servo Motors & Drives |
| Installation Options | Floor, Ceiling, or Wall Mount |
| Reach & Accuracy | |
| Standard Work Reach | 1,440 mm / 56.7" |
| Max. Horizontal Reach | 1,500 mm |
| Max. Vertical Reach | 1,600 mm |
| Repeated Positioning Accuracy | ±0.05 mm |

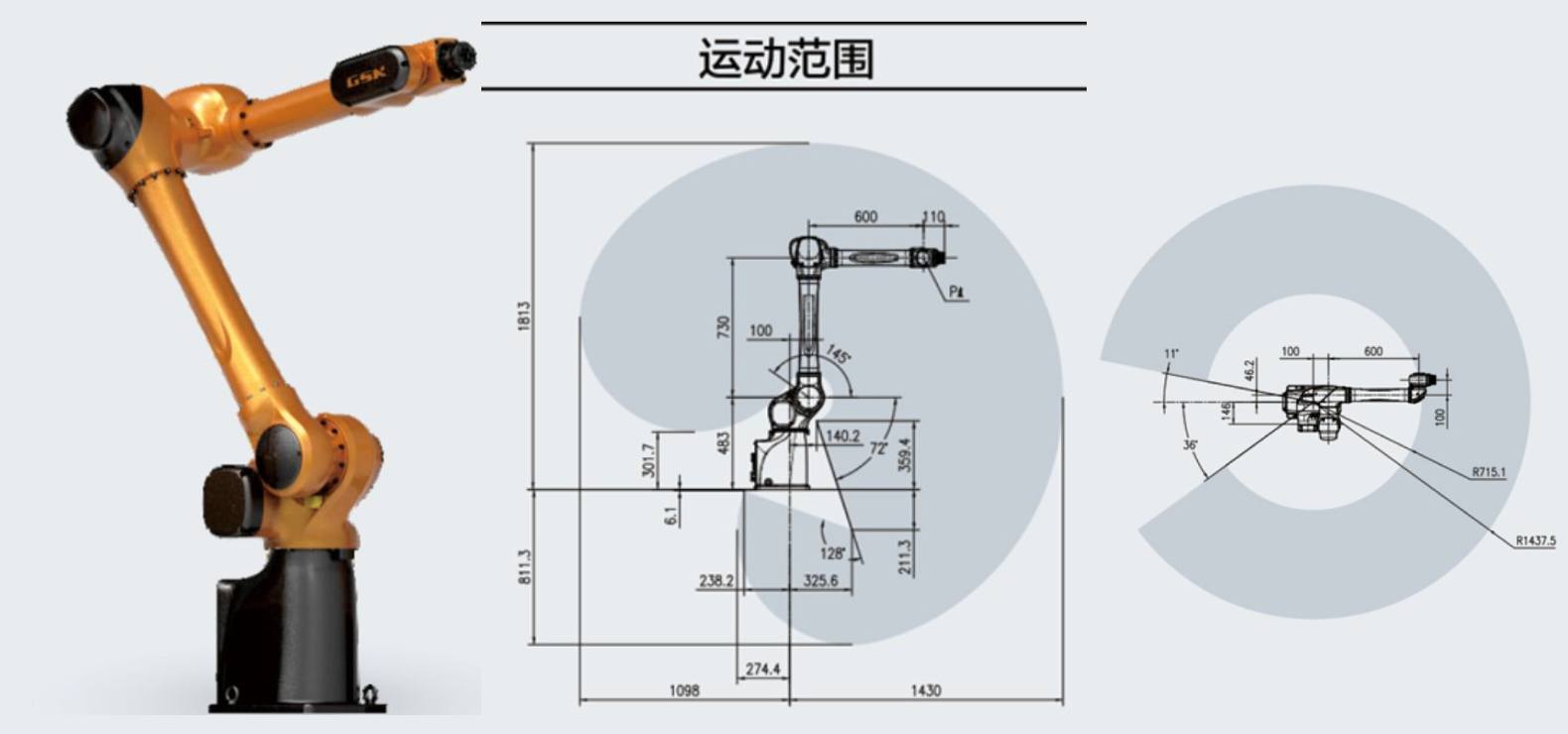

| Joint Motion Range | |
|---|---|
| Joint | Range |
| J1 — Base Rotation | ±170° |
| J2 — Lower Arm | +120° / -85° |
| J3 — Upper Arm | +75° / -155° |
| J4 — Wrist Roll | ±180° |
| J5 — Wrist Up/Down | ±135° |
| J6 — Wrist Twist | ±360° |
| Maximum Speed | |
|---|---|
| Joint | Speed |
| J1, J2, J3 | 130°/s |
| J4 | 420°/s |
| J5 | 252°/s |
| J6 | 620°/s |
The RB08Q1 is designed to handle payloads of up to 8 kg (17.6 lbs) and boasts a massive working reach of 1,440 mm. It also features a maximum horizontal reach of 1,500 mm and a vertical reach of 1,600 mm.
Programming is incredibly fast and user-friendly. Using the intuitive “teach-in” mode, an operator can physically guide the robotic arm through its pick-and-place path, and the system instantly memorizes the exact movements. Because of this, full programming from scratch can easily be completed in just a single shift.
Yes! The RB08Q1 eliminates proprietary lock-in by interfacing readily with Haas, Fanuc, and GSK CNC controls. When paired with a GSK-controlled machine, the communication between the controller and the robot is flawlessly synchronized, giving you the reliability of a single-source provider.
Absolutely. The RB08Q1 carries an IP65 rating, meaning it is fully sealed against shop dust and cutting fluids. It is engineered for relentless, 24/7 unattended operation on the shop floor.

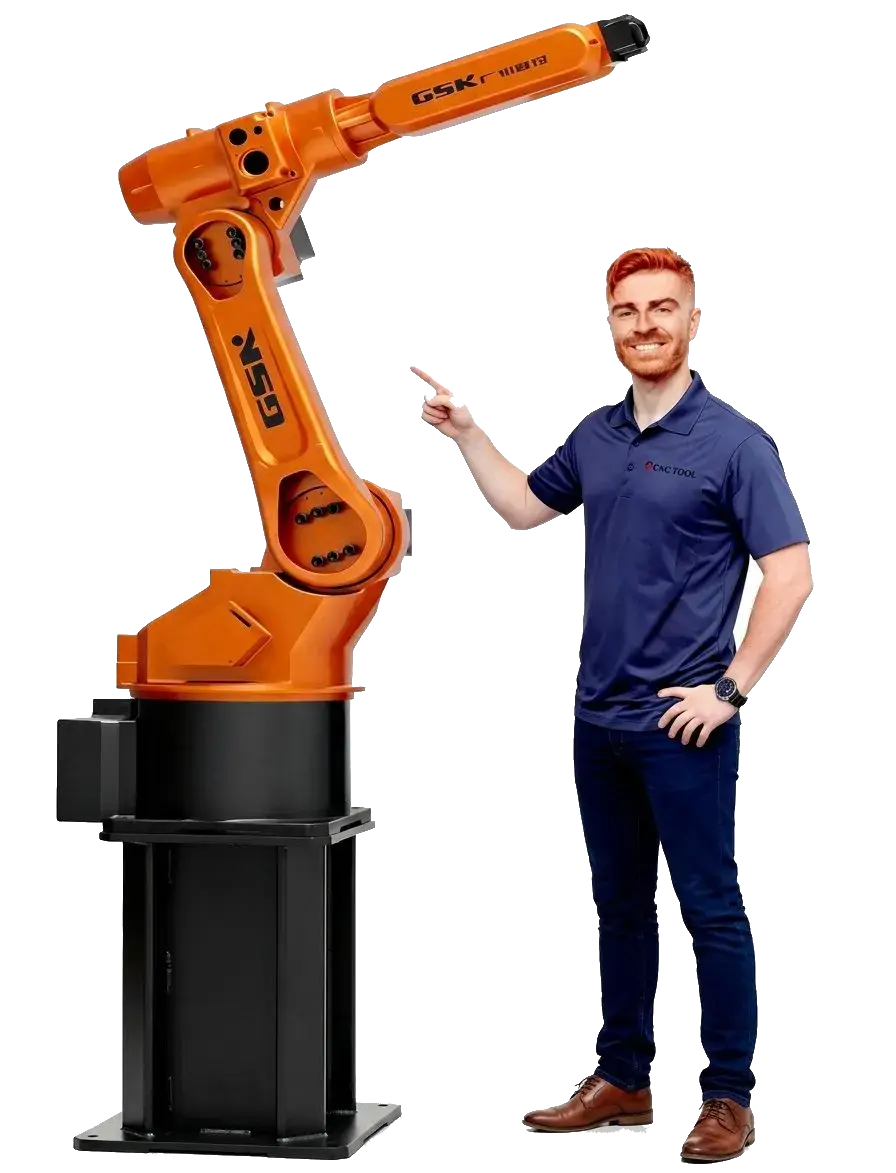

The robot arm itself is built on a nimble, lightweight 75 kg (165 lbs) frame. To maximize your available workspace, the robot offers flexible installation and can be mounted directly on the floor, ceiling, or wall.
The $29,995 base price gets your automation journey started with the GSK RB08Q1 6-Axis Robot Arm, the Electrical Cabinet & Controller System, standard installation, and one (1) day of on-site training. (Note: Travel/per diem, specialized grippers, and auxiliary conveyor equipment are quoted separately.)

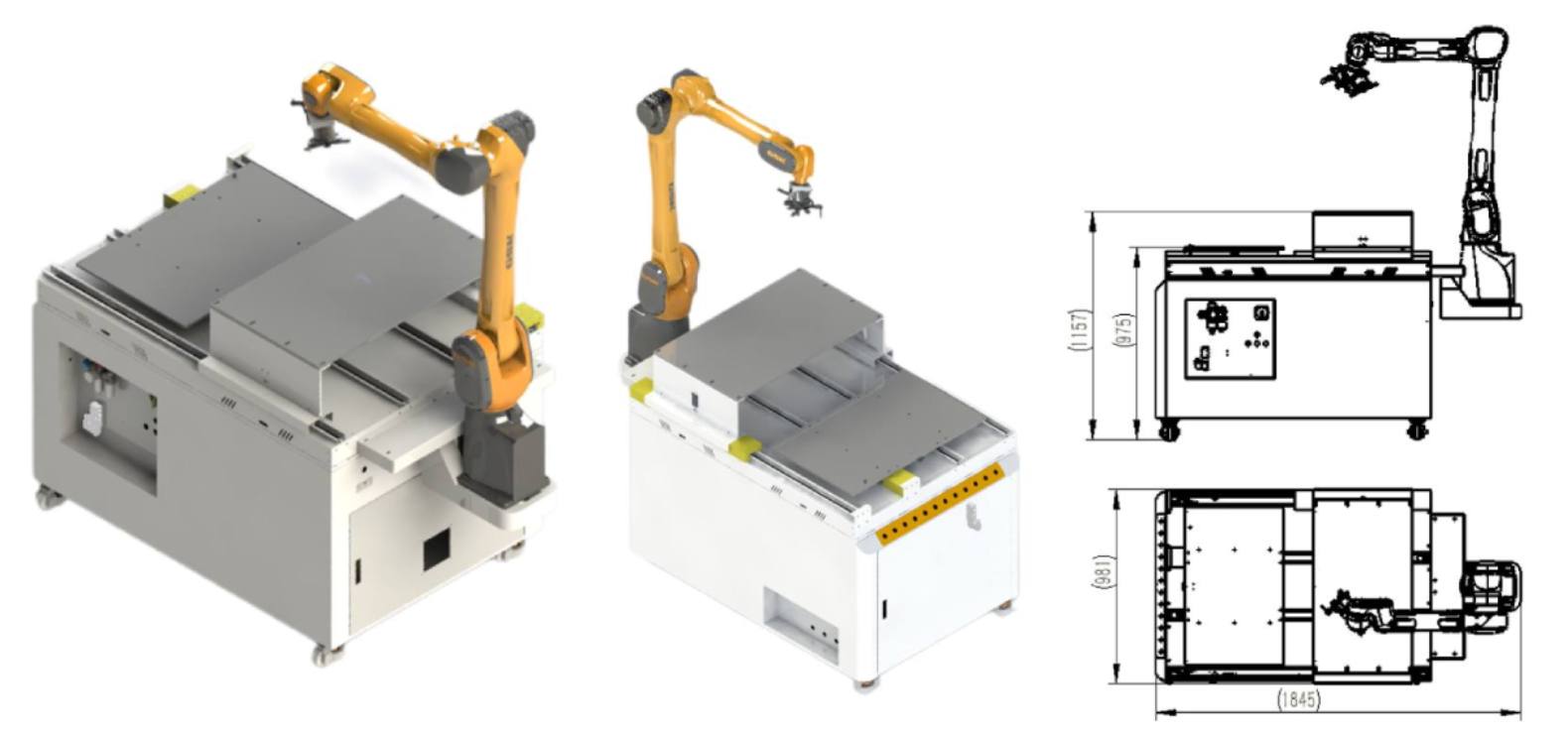

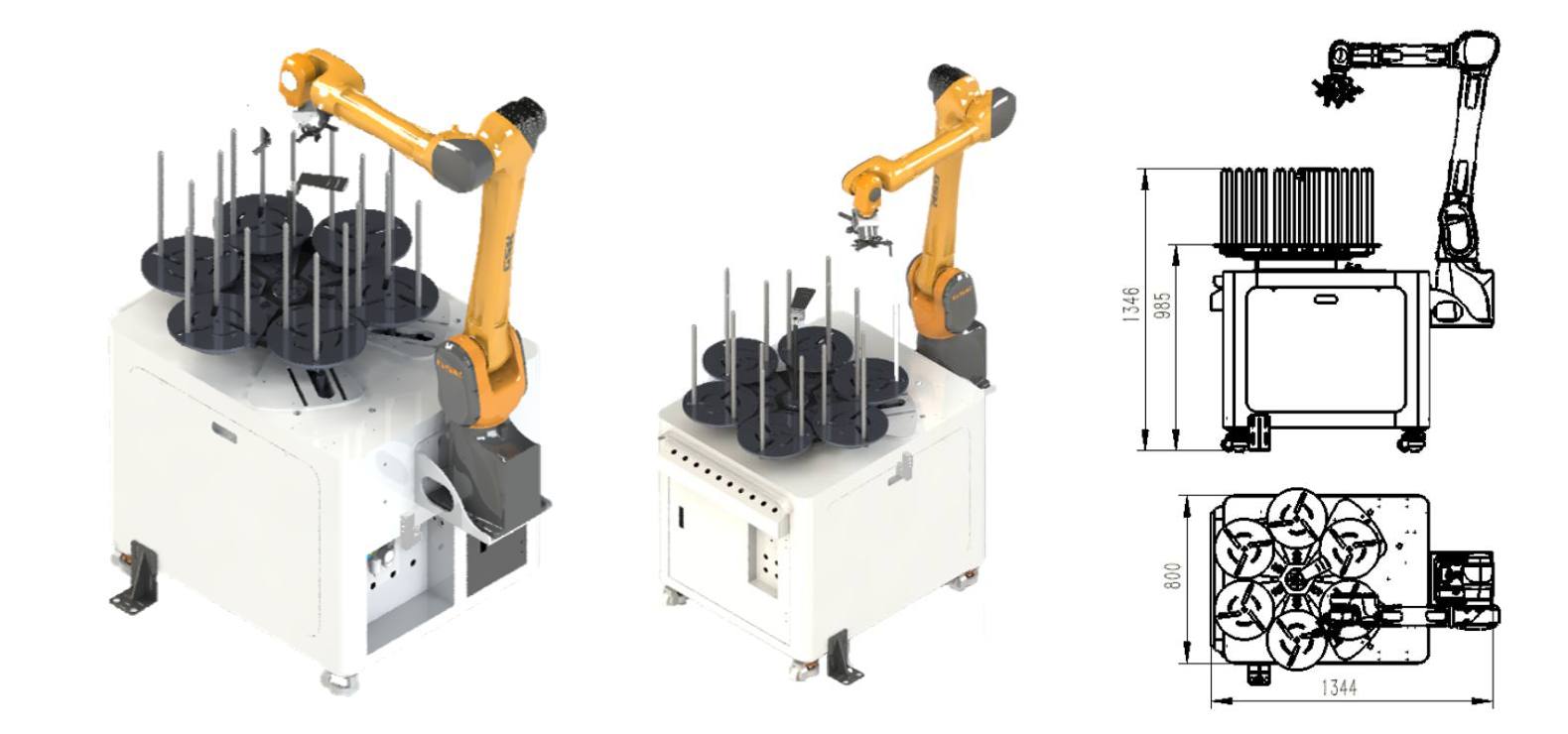

The workstation is currently available in specialized models that are optimized for tending disk-shaped workpieces and shafts. It utilizes a smart three-point inner/outer positioning method, which allows operators to make rapid, on-the-fly adjustments without needing to replace parts.

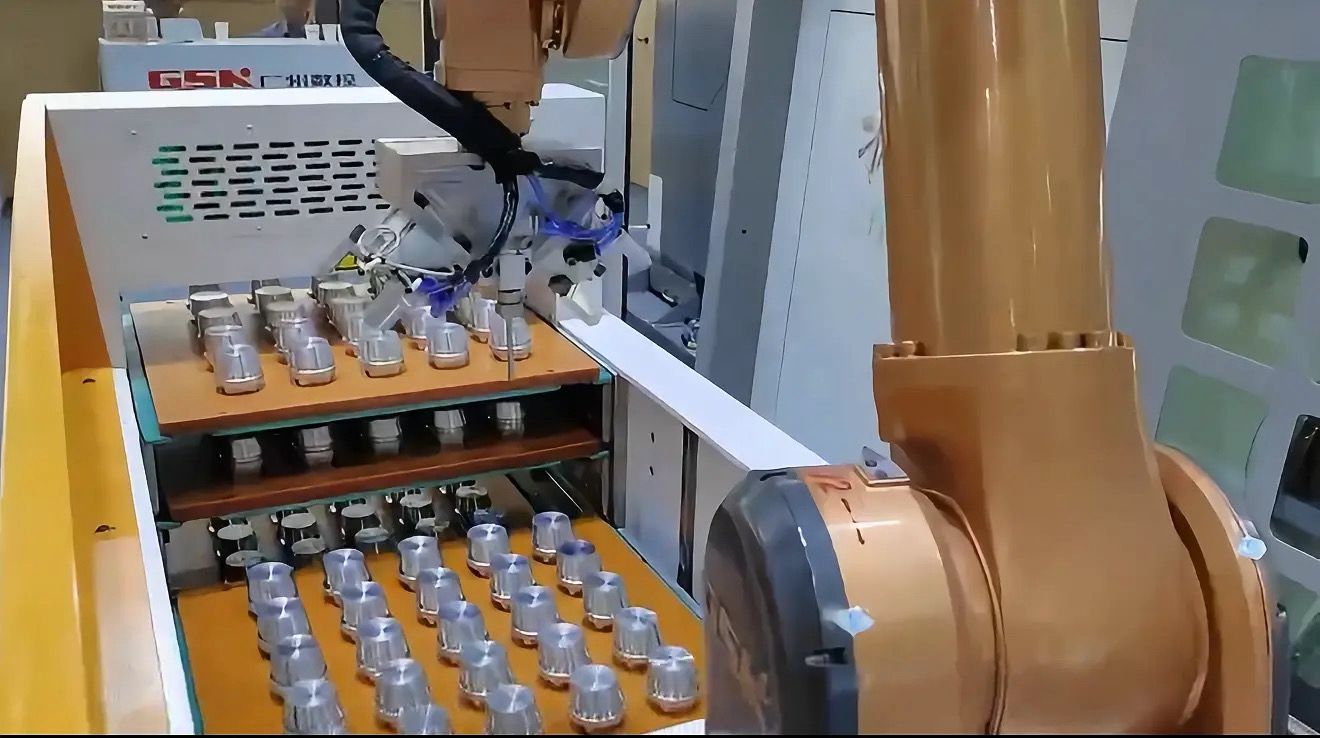

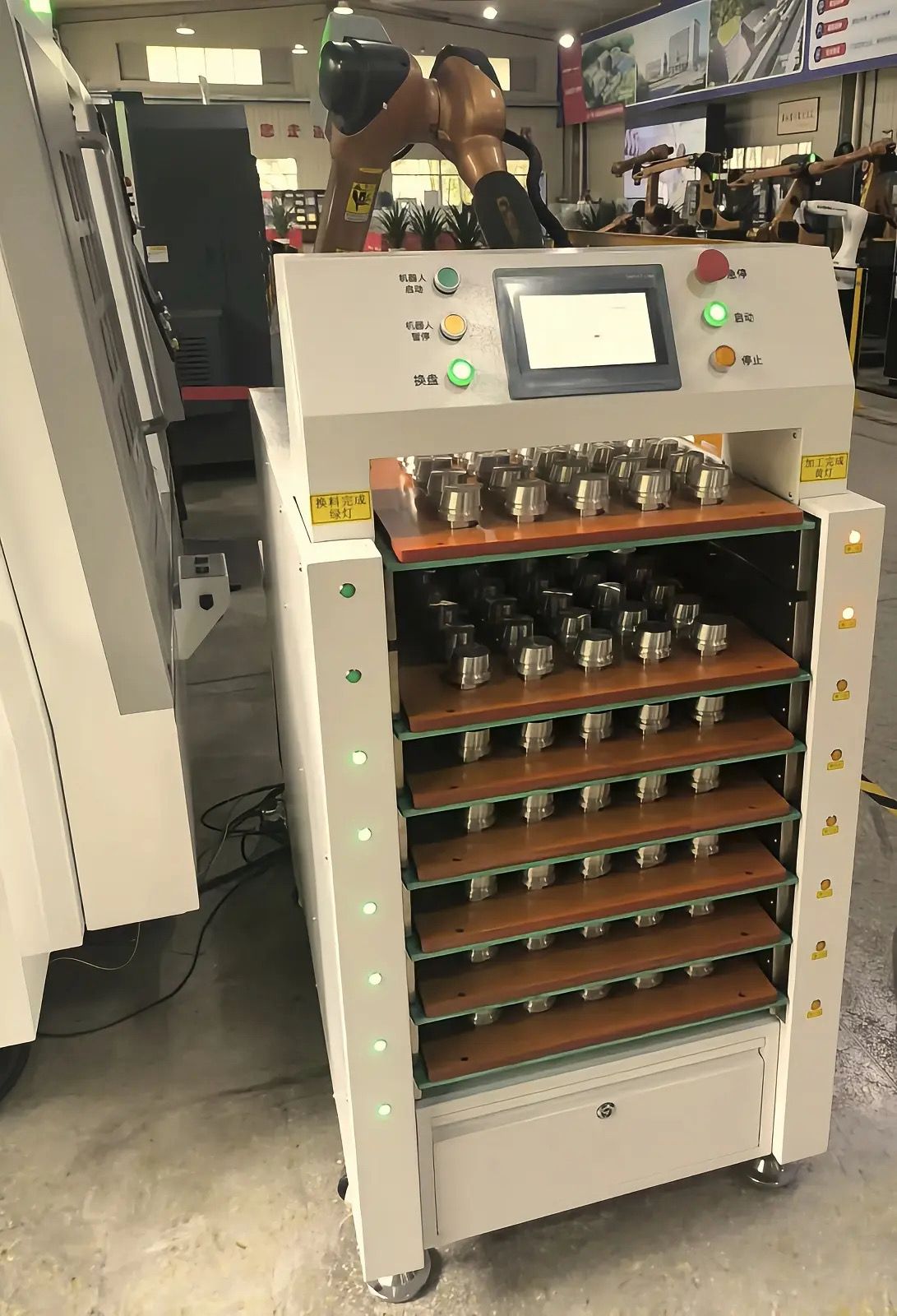

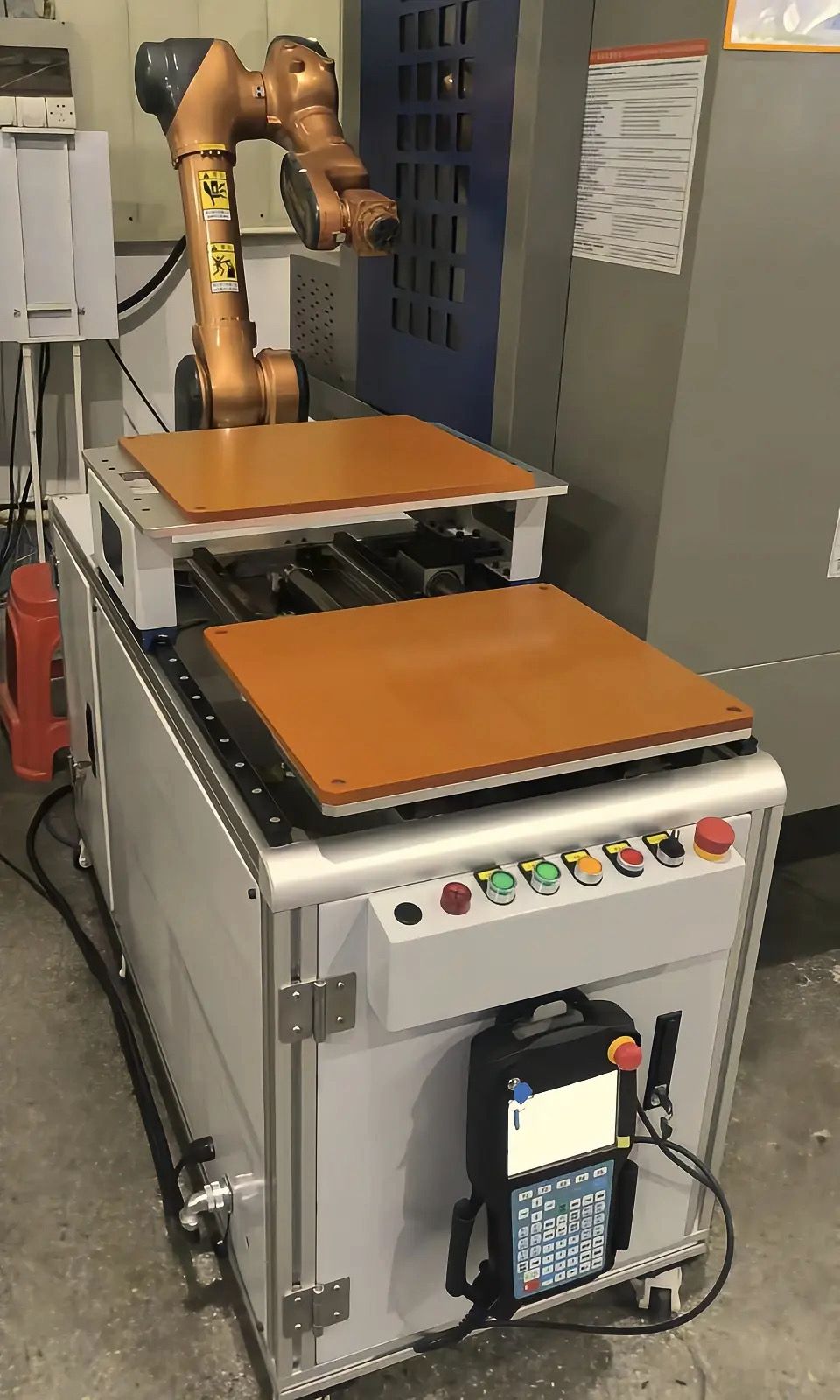

Yes. The system features a rotary lifting table that fully supports both single-part lifting and continuous conveyor line integration. This makes it an ideal drop-in solution for true lights-out manufacturing.
Warranty & Direct Support
Your production doesn’t stop, and neither do we.
Every GSK RB08Q1 Robotic Workstation is backed by our comprehensive warranty and supported directly from our Santa Ana, California headquarters — no overseas time zones, no outsourced call centers. We stand firmly behind the rugged durability of our automation systems. All warranty support and parts dispatch are handled directly from our SoCal facility.
- 1-Year Mechanical Warranty: Every GSK RB08Q1 comes with one year of comprehensive coverage on all mechanical components, ensuring your automation investment is fully protected from day one.
- 2-Year Electrical Warranty: An industry-leading two years of coverage on all electrical components — drives, servo motors, cables, and controllers — because electronics are where most post-sale surprises occur.
- Extended Warranty Available: For added peace of mind, we offer custom extended warranties upon request. Contact our Santa Ana team for details.
- OEM Manufacturer Warranty: Enjoy added coverage directly from GSK — global warranties backed by the robotics manufacturer itself.
- Direct U.S.-Based Support: When you call CNC New, you speak directly to the automation engineers and technicians who configure, integrate, and program these robotic cells. No third parties, no delays.
- Massive On-Site Parts Inventory: We maintain a large inventory of robotic spare parts, end-of-arm tooling components, and electronics at our Southern California facility — ready for immediate dispatch.
- Remote Diagnostics & Integration: Our technicians can troubleshoot, optimize robotic motion paths, and resolve programming issues remotely to get you back to lights-out production fast.
The CNC New Commitment
"Purchasing automation from an importer often means you are on your own after the sale. We have over 30 years of PLC development and robotic integration experience under one roof. We integrate them. We warrant them. We support them for life."
GT-15 & GSK RB08Q1
The Ultimate Palletized System for Lights-Out Production
Take your production floor to the next level with our fully integrated, palletized automation cell. By combining the heavy-duty milling and turning power of the GT-15 Industrial Slant Gang Tool Lathe with the high-speed precision of the GSK RB08Q1 Robotic Workstation, we have created a seamless, drop-in solution for true lights-out manufacturing.
This turnkey package eliminates the bottleneck of manual part loading. The GT-15’s massive 18 inches of X-axis travel easily accommodates complex multi-tool setups, while the IP65-rated GSK robot automatically tends the machine with rapid, repeatable precision. Whether you are machining disk-shaped workpieces or heavy shafts, this bundled system drastically reduces cycle times, lowers labor costs, and maximizes your spindle uptime.

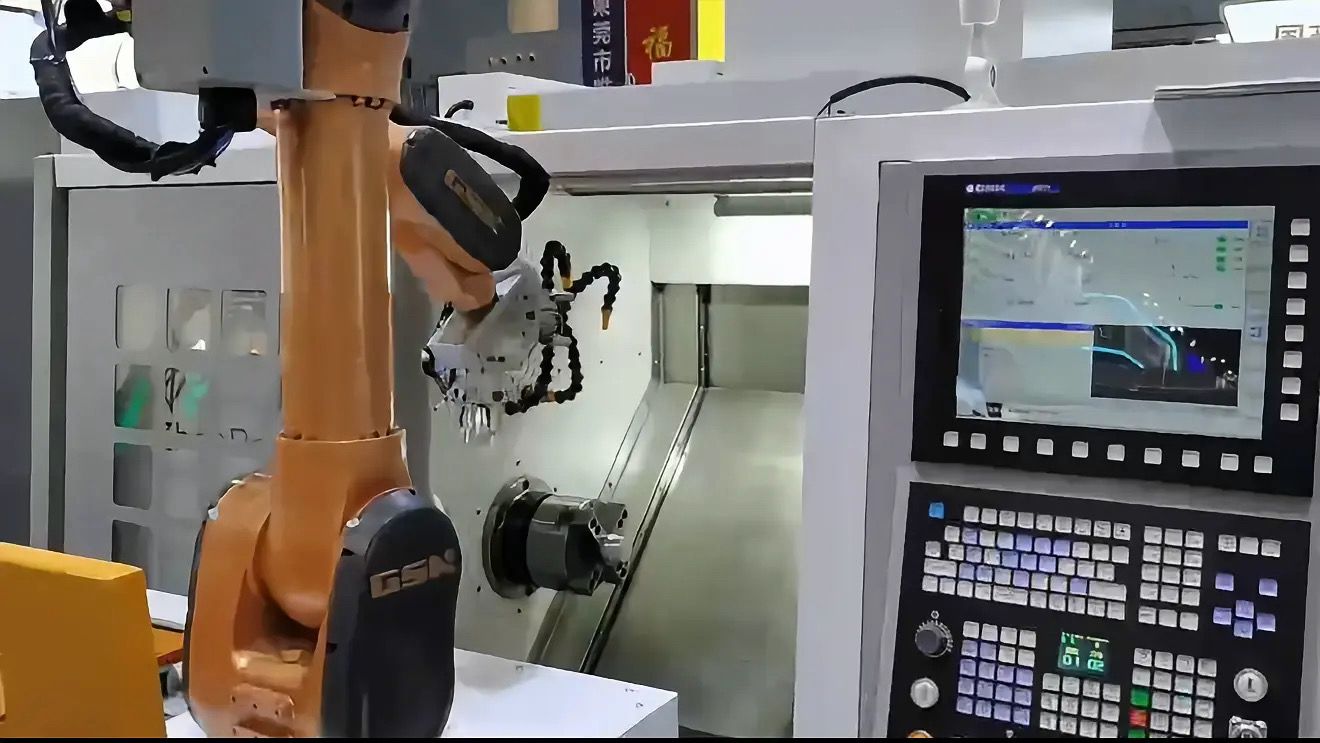

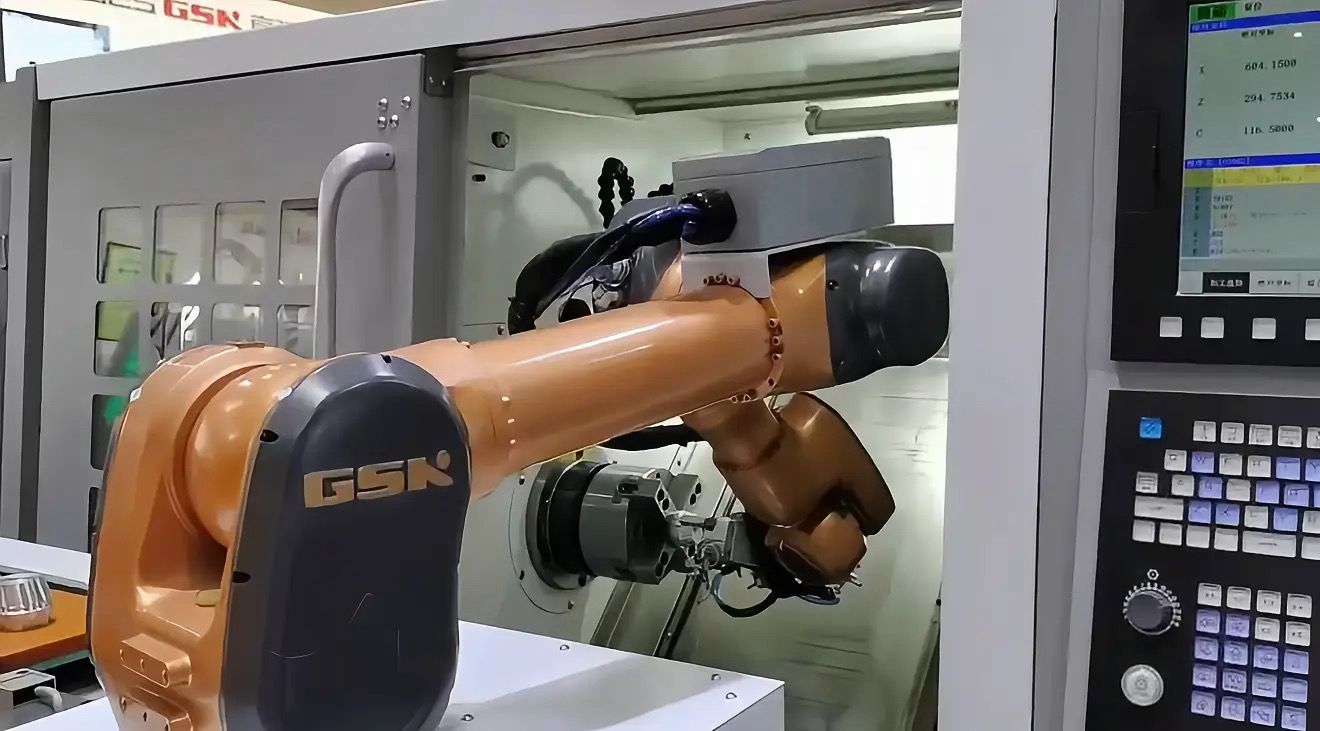

The GSK RB08Q1 effortlessly handles payloads up to 8 kg (17.6 lbs), loading and unloading parts from its integrated rotary lifting table directly into the GT-15’s chuck.
When paired with the GT-15’s available GSK CNC controls, communication between the machine and the robotic arm is highly intuitive and flawlessly seamless. Fanuc control integration is also fully supported.

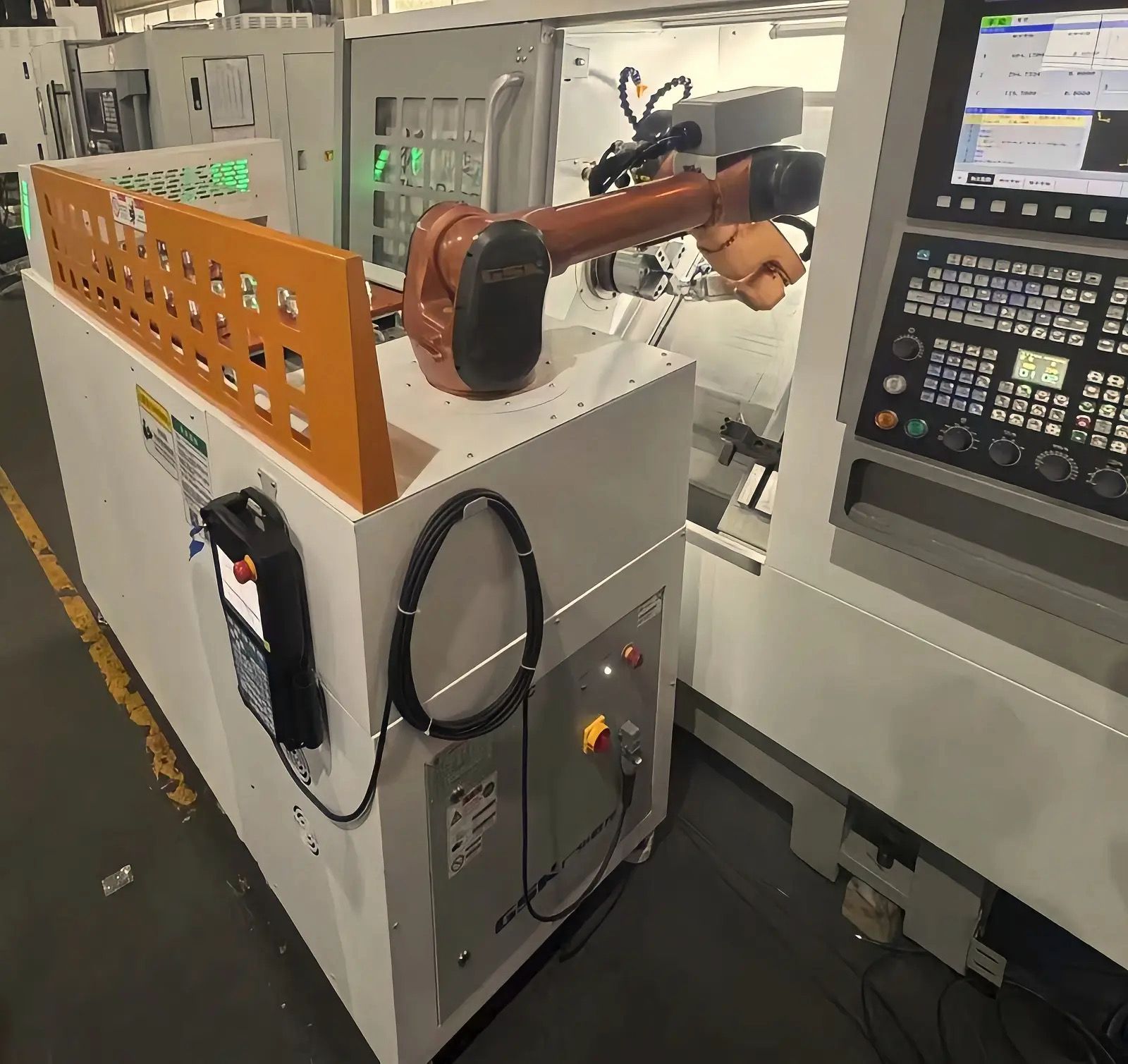

Engineered so the robotic workstation sits perfectly next to the GT-15, allowing for rapid installation and segregated human-robot safety zones.
The GT-15 features a 97 mm center height, giving you the clearance to run traditional gang tools alongside Y-axis modules and live tooling (Axial, Radial, and Vertical).
Built on a highly rigid, single-piece heavy slant casting, the GT-15 pairs with the IP65-rated robot for relentless reliability in the harshest machining environments.

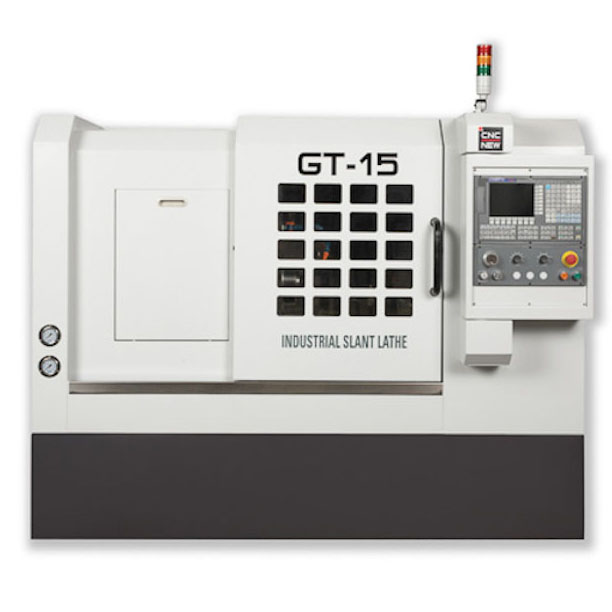

GT-15 Slant Gang Tool Lathe
- StructureSingle-Piece Heavy Slant Casting
- X-Axis Travel18.0″ — Ideal for multi-tool setups
- Bore Capacity2.40″ (61 mm) Spindle / 1.96″ (50 mm) Drawtube
- ToolingGang Tools, Turrets, Y-Axis, & Live Tooling
GSK RB08Q1 Robot
- Axes & Reach6-Axis with 1,440 mm working reach
- Payload8 kg / 17.6 lbs
- Accuracy±0.05 mm Positioning Repeatability
- ProgrammingIntuitive “Teach-In” Mode — setup in ~1 day
Call us today to discuss your production requirements and let our engineering team quote a complete, automated turnkey system for your shop floor.
