CNC New, Inc. is based in Southern California and offers top-selling gang tool lathes, CNC machines.

Kill Turret Index Time. Cut Your Cycle On Every Part You Run.

Stationary gang tooling means 0.0-second tool changes and 787 in/min rapids — seconds saved on every cycle, on every part, every shift. $30,000–$80,000.

Heritage30+ Yrs Direct

FoundationMeehanite Iron

SLA Response<2-Hr Quotes

DispatchIn-Stock Today

No obligation. We send a written quote, not a sales call queue.

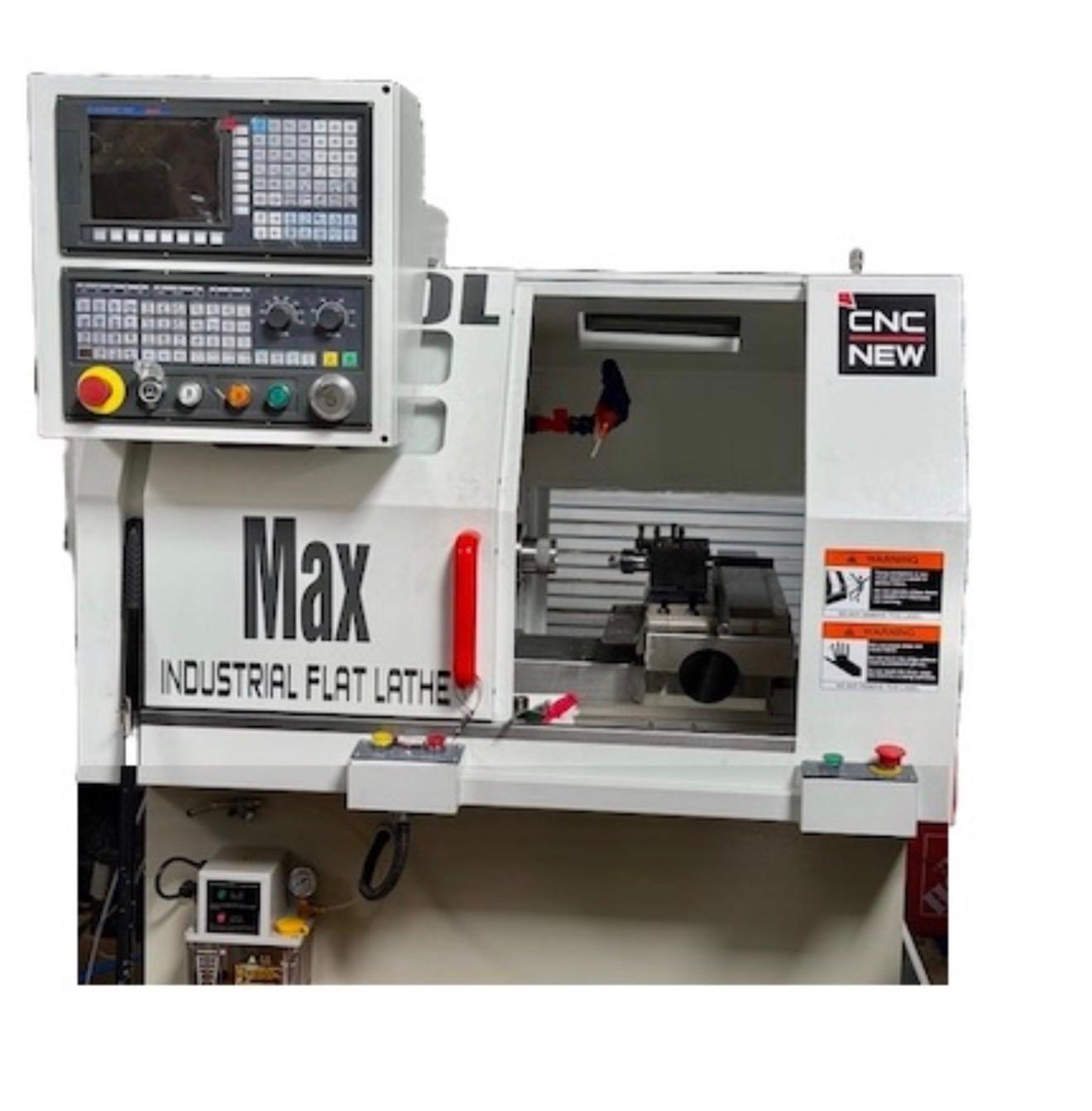

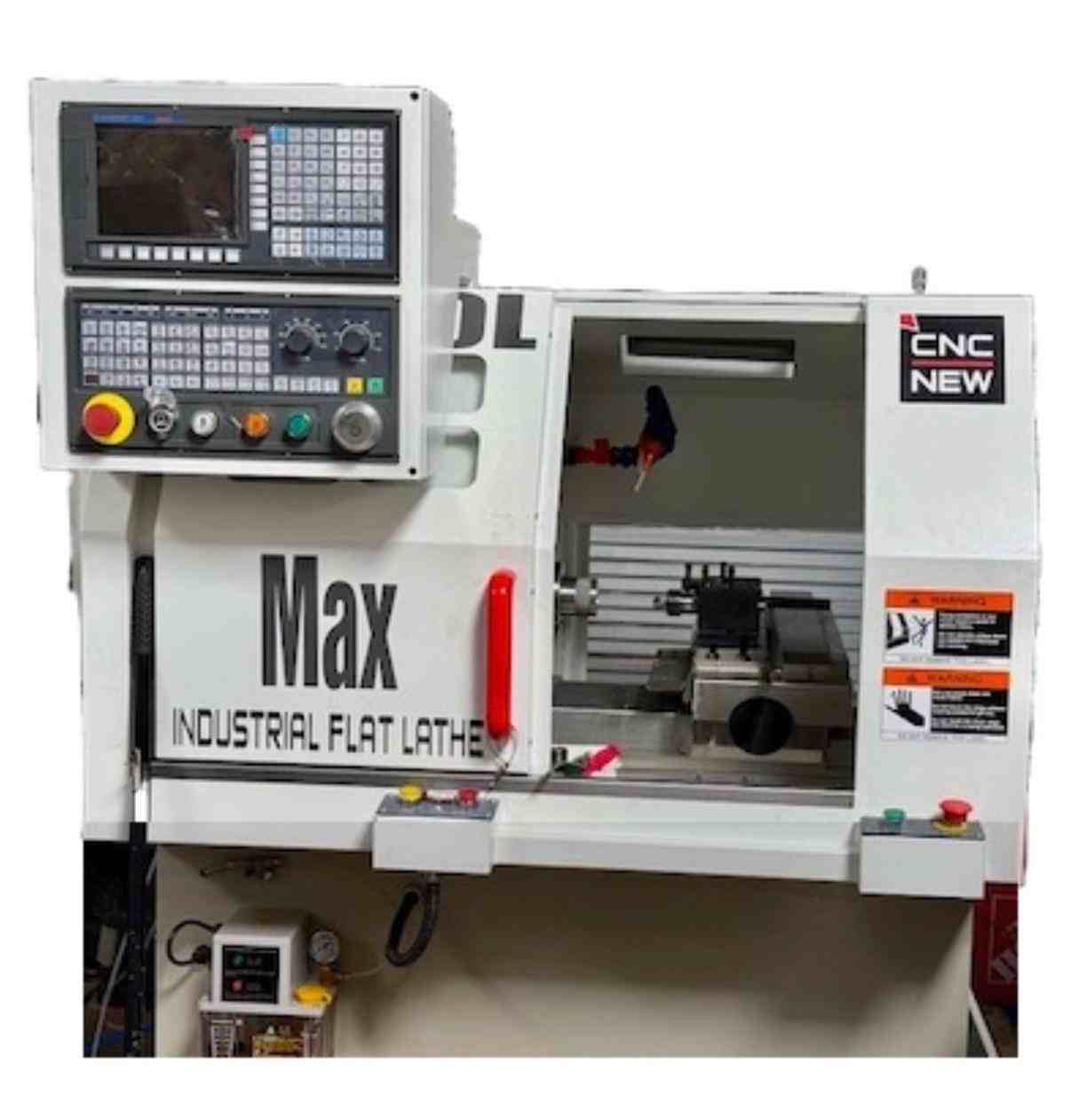

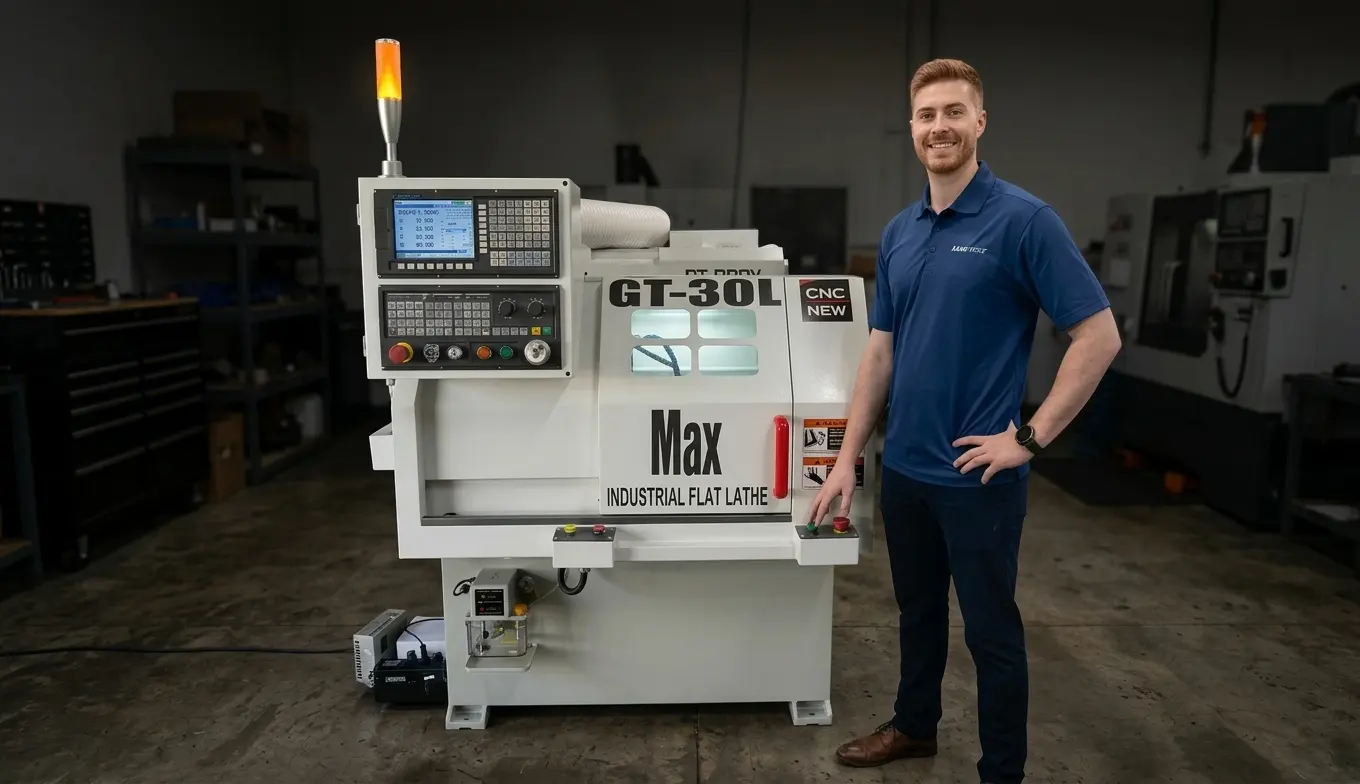

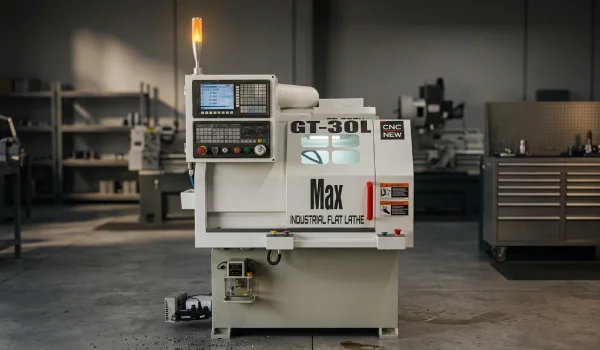

Series // 5-Axis Multi-Tasking

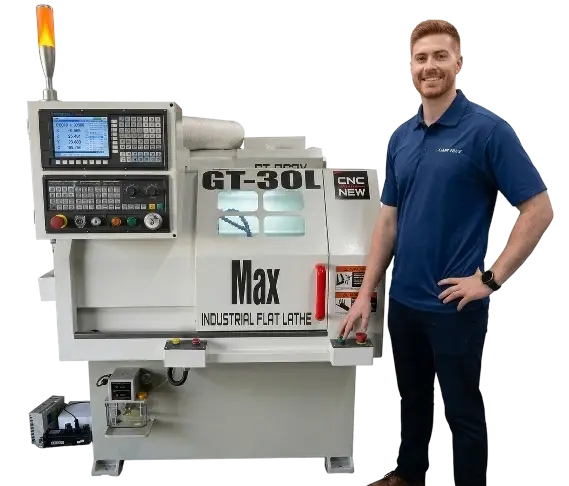

GT-30L MAX

Ready to Ship

Footprint: 59" × 55"

Live Tooling4 Axial / Radial

Tool Change0.0 Sec Gang

Rapid Travel787 IPM (X/Z)

Max Turning1.50" / 38.1mm

PDF Brochure View Specs

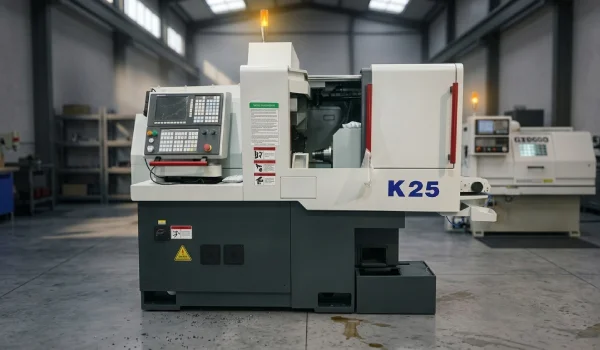

Series // 7-Axis Sliding Headstock

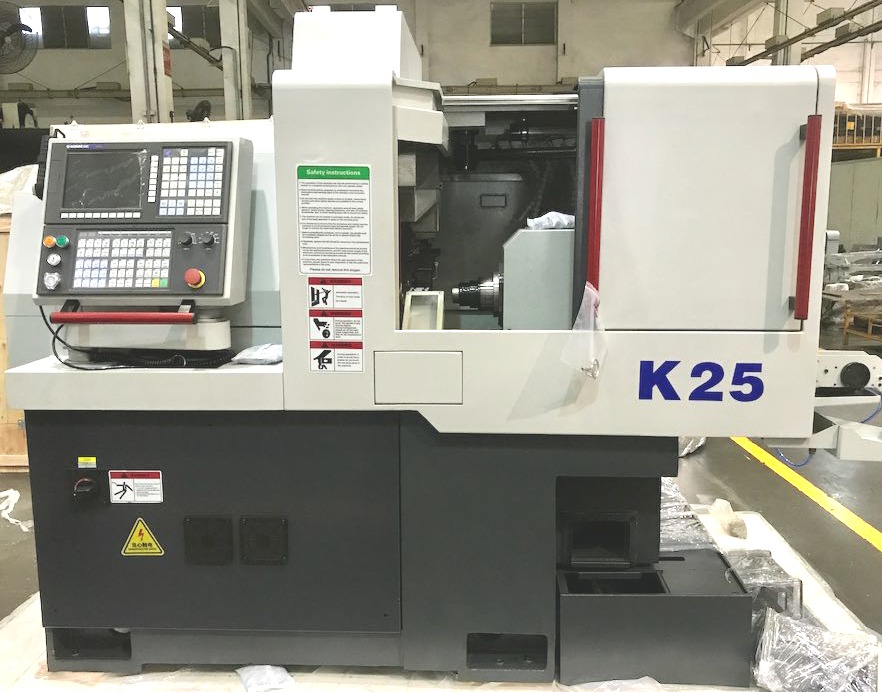

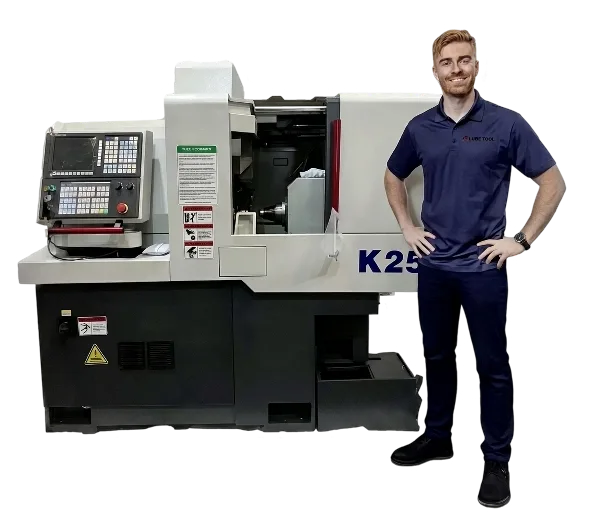

K25 Swiss

In Stock

Footprint: 78" × 50"

Live ToolingUp to 14 Spindles

Spindle Speed10,000 RPM

Rapid Travel1,260 IPM

Repeatability±0.002 mm

PDF Brochure View Specs

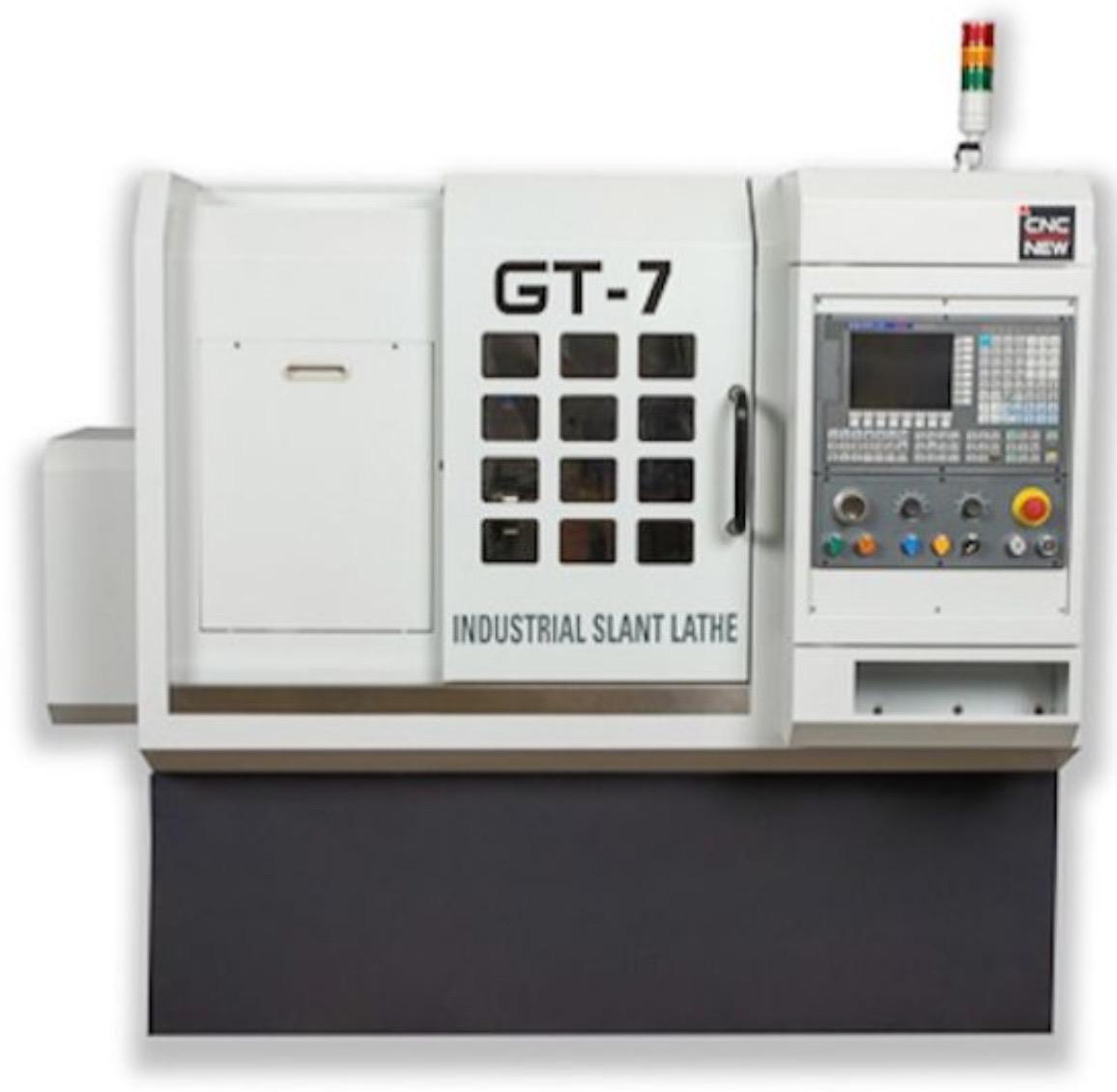

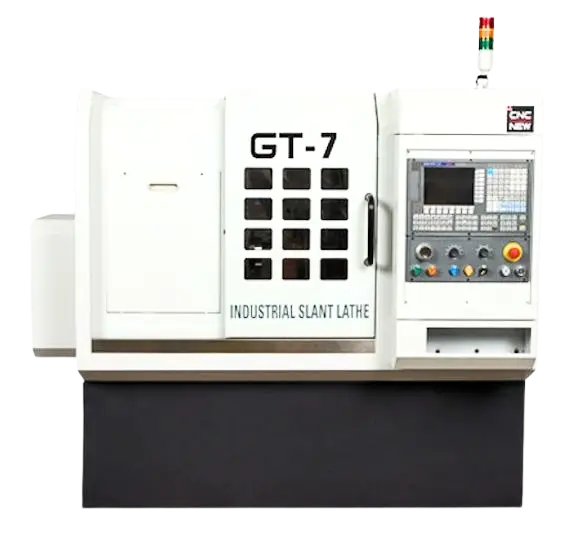

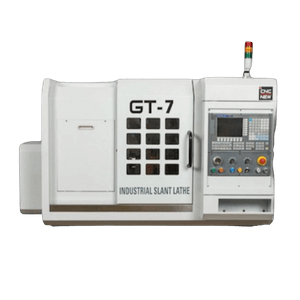

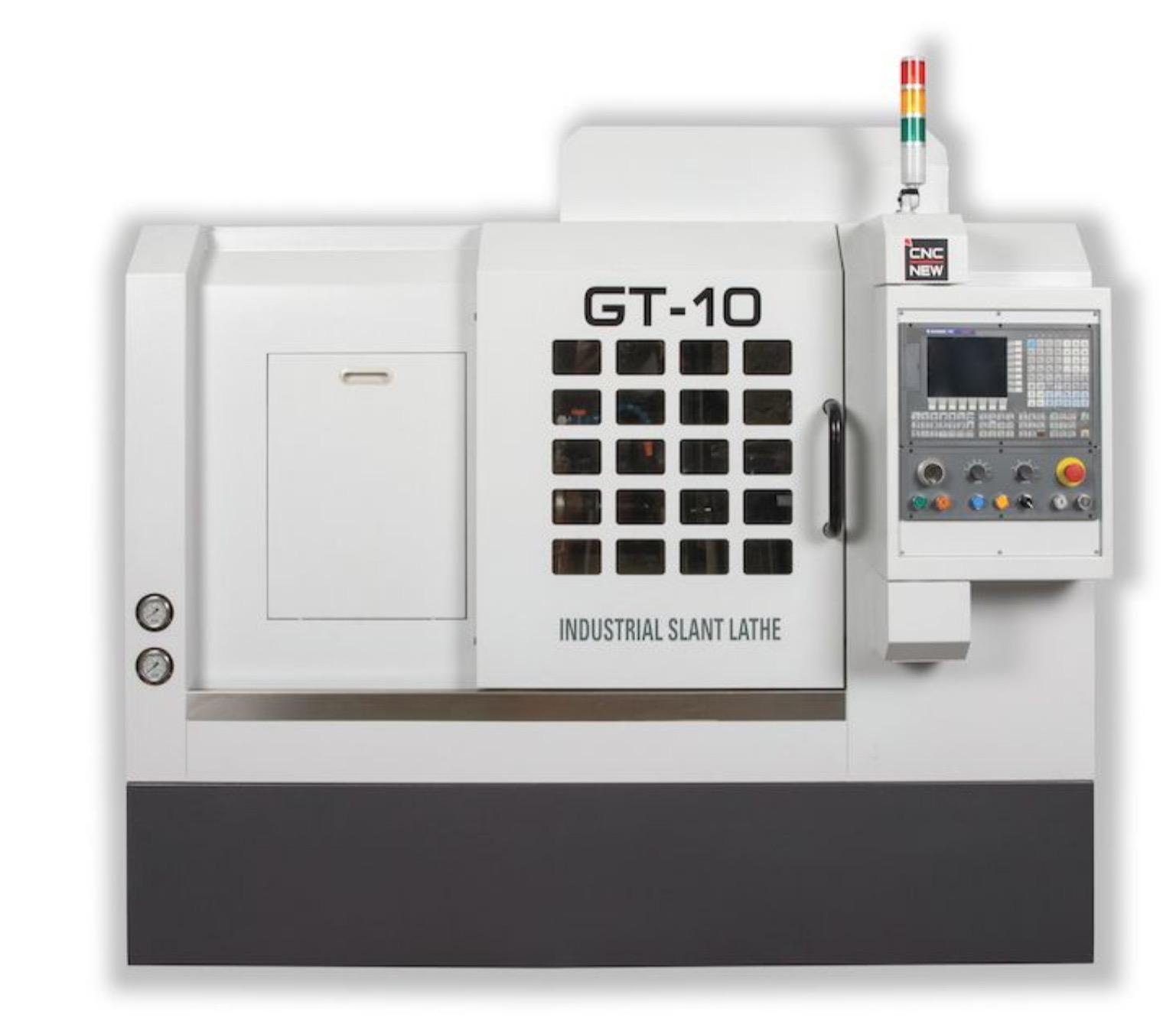

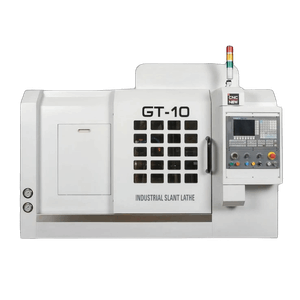

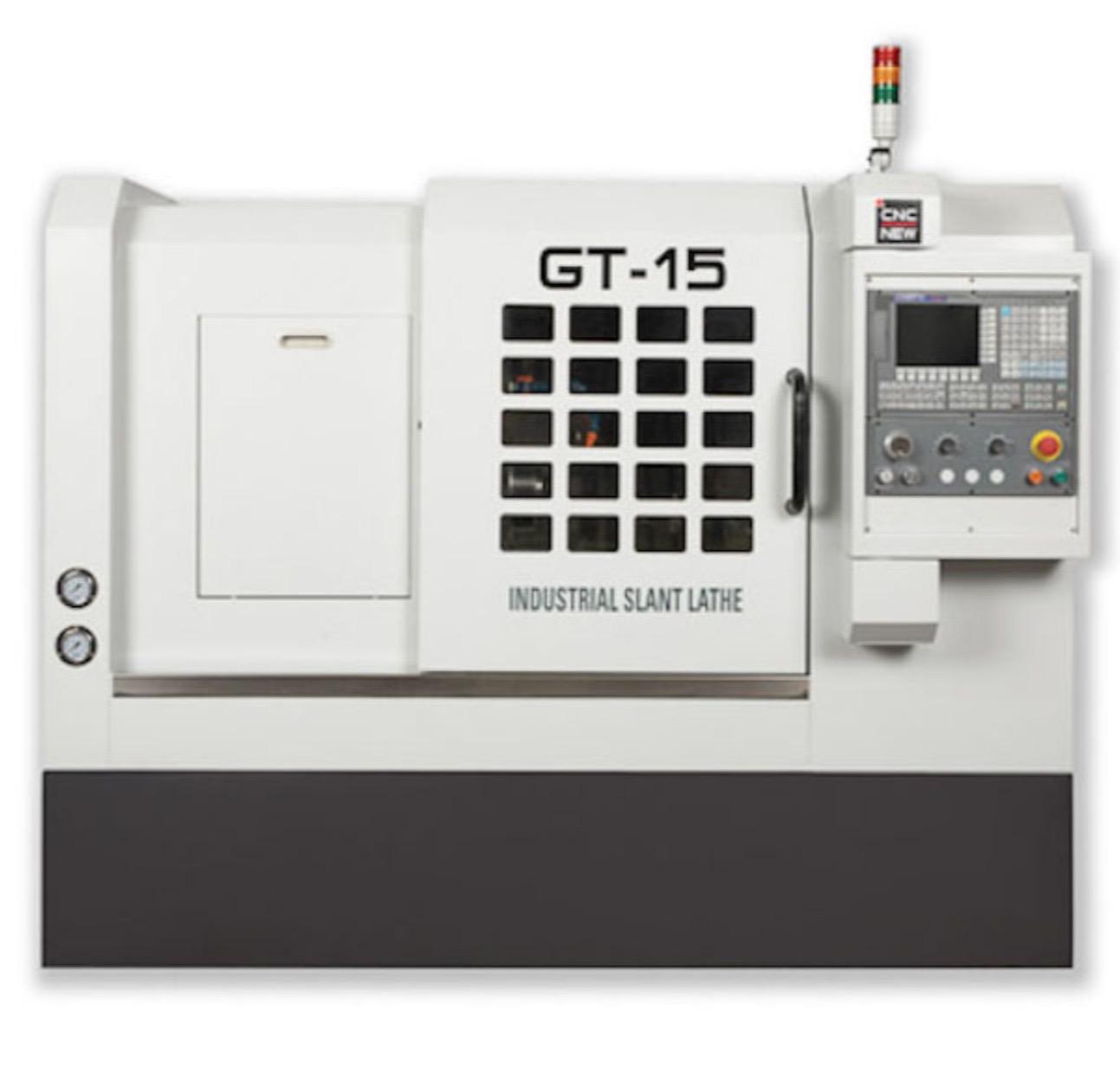

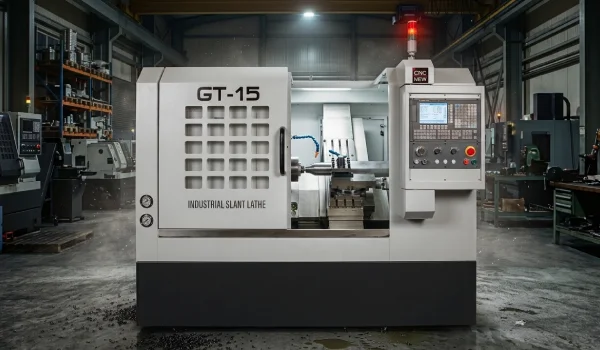

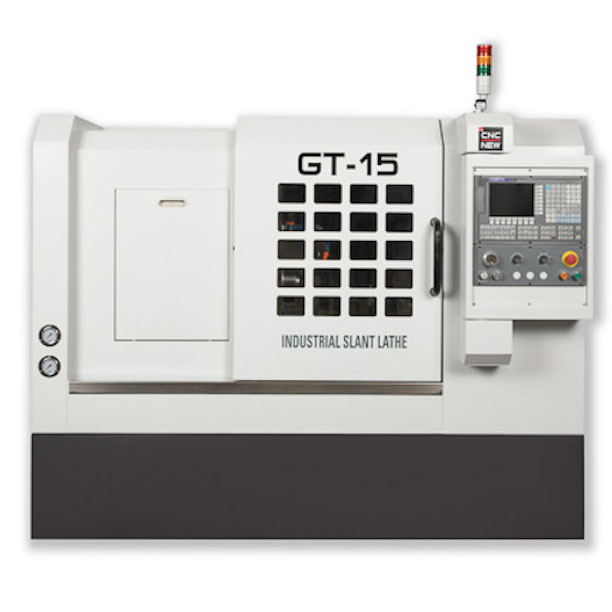

Series // GT-15 / GT-10 / GT-7 Slant Bed

GT Series

Ready to Ship

Footprint: 75" × 60"

Base Casting3,300 lb Meehanite

Spindle Motor10 HP Vector

Rapid Travel600 IPM (X/Z)

Bar Capacity1.375" – 2.00"

PDF Brochure View Specs

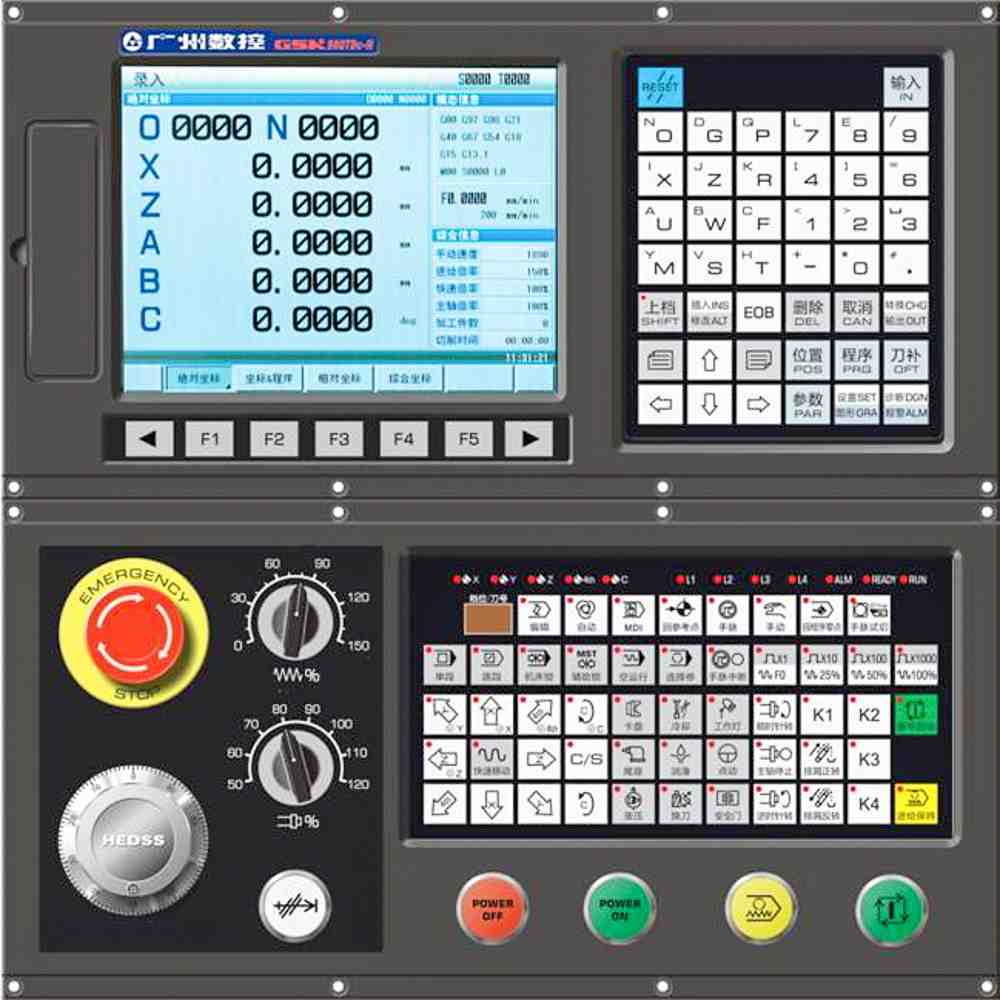

Series // CNC Controller Package

GSK Control

Build to Order

Retrofit or New Build

ControllerGSK 980TDi

InterfaceMDI + Handwheel

ProgrammingISO G-Code

SupportUS Factory Direct

PDF Brochure View Specs

GT-30L MAX Specs & FAQs

01 Footprint & Specs

02 GT-30L MAX Gallery

03 FAQs

04 Support & Warranty

05 Custom Options

GT-30L MAX SPECIFICATIONS
Specification	Standard / S.A.E.	Metric
Capacities
Max. Swing Over Bed	10.6 in	270 mm
Max. Turning Diameter	4.3 in	110 mm
Max. Swing Over Table	4.3 in	110 mm
Bar Capacity	1.181 in	30 mm
Max. Turning Length	7.87 in	200 mm
Travels & Feed Rates
X-Axis Travel	11.8 in	300 mm
Z-Axis Travel	11.8 in	300 mm
Rapid on X-Axis	787 in/min	20,000 mm/min
Rapid on Z-Axis	787 in/min	20,000 mm/min
Spindle
Power Rating	3 HP	2.2 kW
RPM	100 – 5,000 RPM	100 – 5,000 RPM
Spindle Bore	1.41 in	36 mm
Drawtube Bore	1.181 in	30 mm
Spindle Nose	A2-4	A2-4
Collet Actuator	Pneumatic	Pneumatic
Base & Structure
Integral Casting	One Piece Construction	Flat Bed
Rail Span	14.25 in	362 mm
Casting Weight	1,984 lbs	900 kgs
Linear Rails	0.98 in (P3 Accuracy)	25 mm (P3 Accuracy)
Ball Screws (Precision Ground)	0.98 in (C3 Accuracy)	25 mm (C3 Accuracy)
Precision
Positional Repeatability	±0.00015 in	0.004 mm
Positional Accuracy	±0.00027 in	0.007 mm
Spindle Runout	0.00005 in	0.00127 mm
Requirements
Coolant Capacity	15 gallons	60 Liters
Power Required	2.5 kVA (30 amps)	208–240 VAC 3-Phase
Machine Dimensions
Machine Height	69 in	1,760 mm
Sheet Metal Length	59 in	1,510 mm
Sheet Metal Width	55 in	1,410 mm
Machine Weight	2,590 lbs	1,175 kgs

The primary difference is capacity and versatility. The GT-30L MAX features a larger interior work envelope designed specifically to accommodate live tooling and a C-Axis spindle. Coupled with extended axis travels, this makes it an incredibly versatile powerhouse, especially for job shops that need the flexibility to run a wide variety of complex, multi-operation parts.

While it offers significantly more machining capacity, the footprint remains highly compact at just 59" × 55". This allows you to fit a highly versatile, heavy-duty production machine into a space where traditional lathes simply wouldn't fit.

Yes. The 55 mm tool table height and extended 11.8" travels make it fully compatible with axial and radial live tools for milling, drilling, and tapping. Combined with full C-axis interpolation, the GT-30L MAX becomes a complete mill-turn center capable of producing complex parts done-in-one.

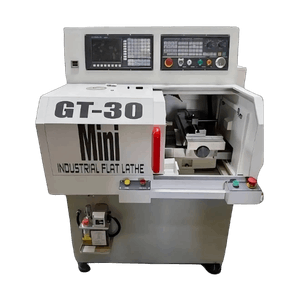

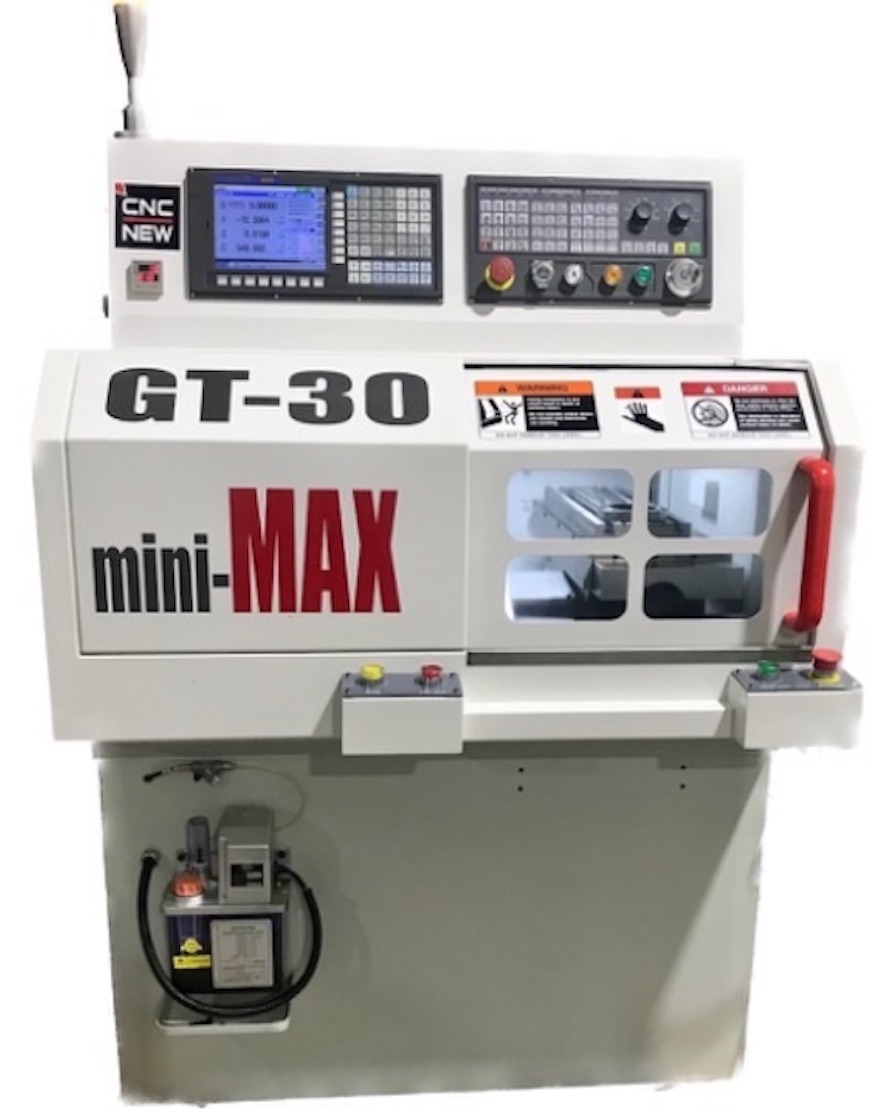

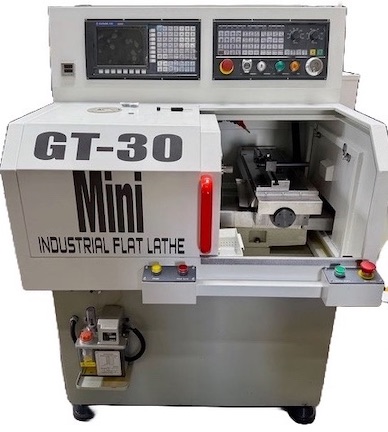

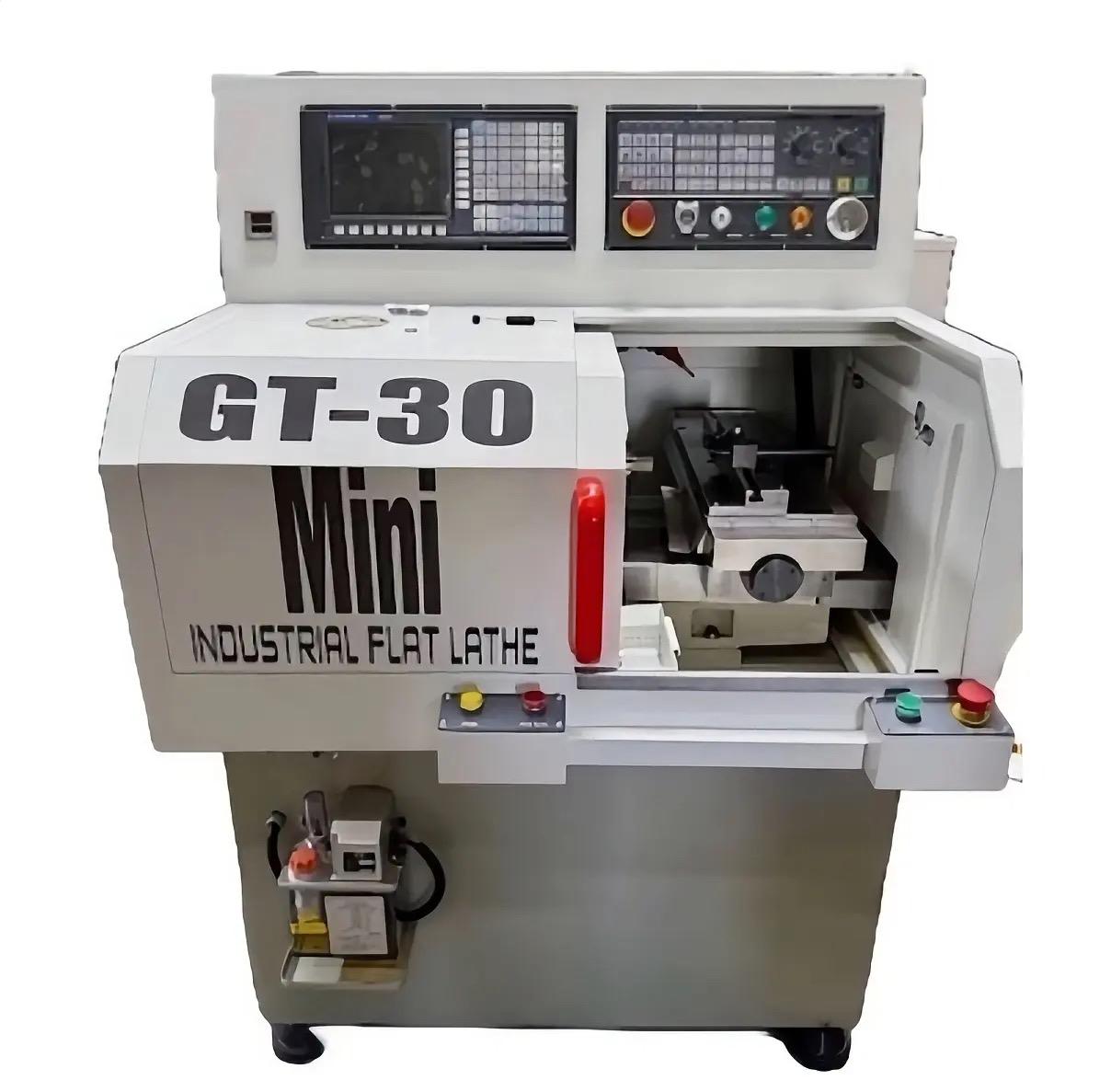

Absolutely. Both the GT-30 Mini and the GT-30L MAX are equipped with robust 1-HP axis motors and a powerful 5-HP servo-drive spindle, allowing them to power through difficult alloys while consistently holding extremely tight tolerances.

The state-of-the-art GSK CNC control utilizes the same industry-standard G-code commands as Fanuc. Machinists transition to it effortlessly. Fanuc controls are also available for shops that prefer them.

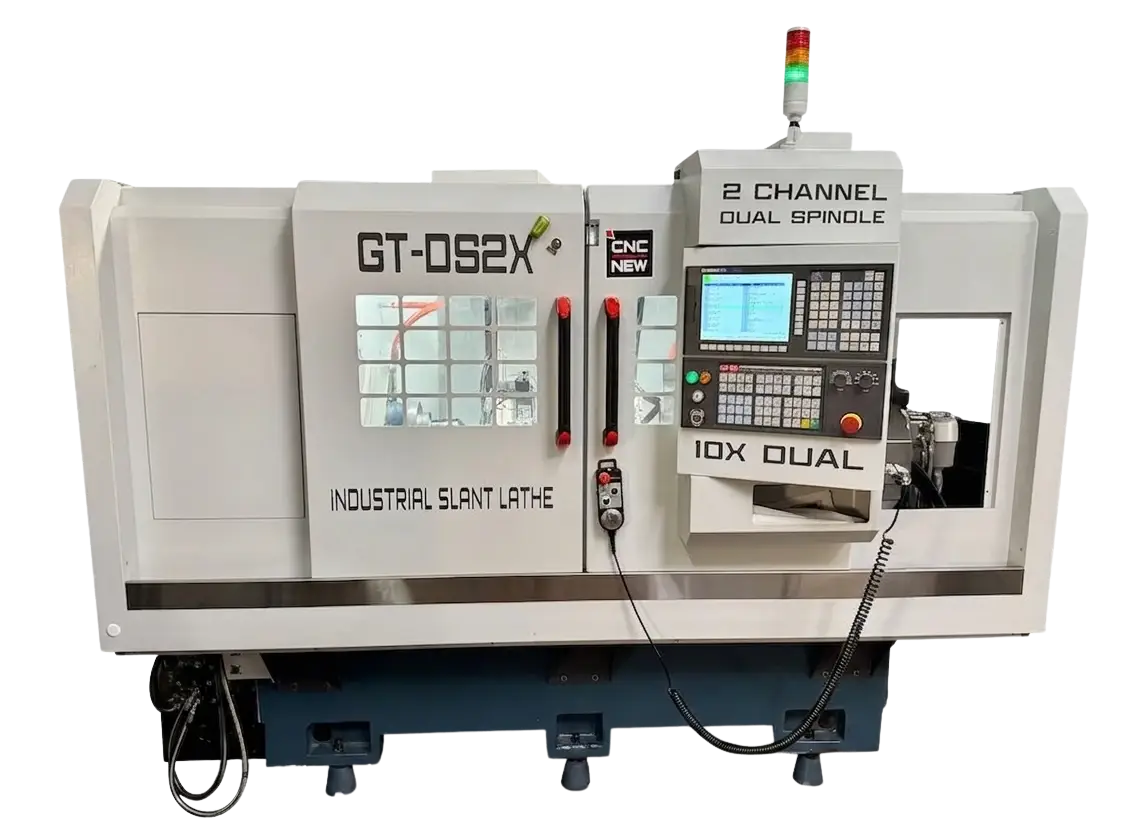

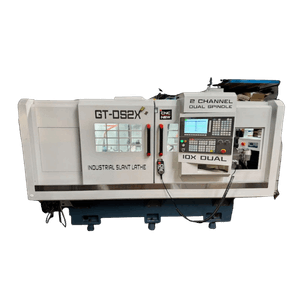

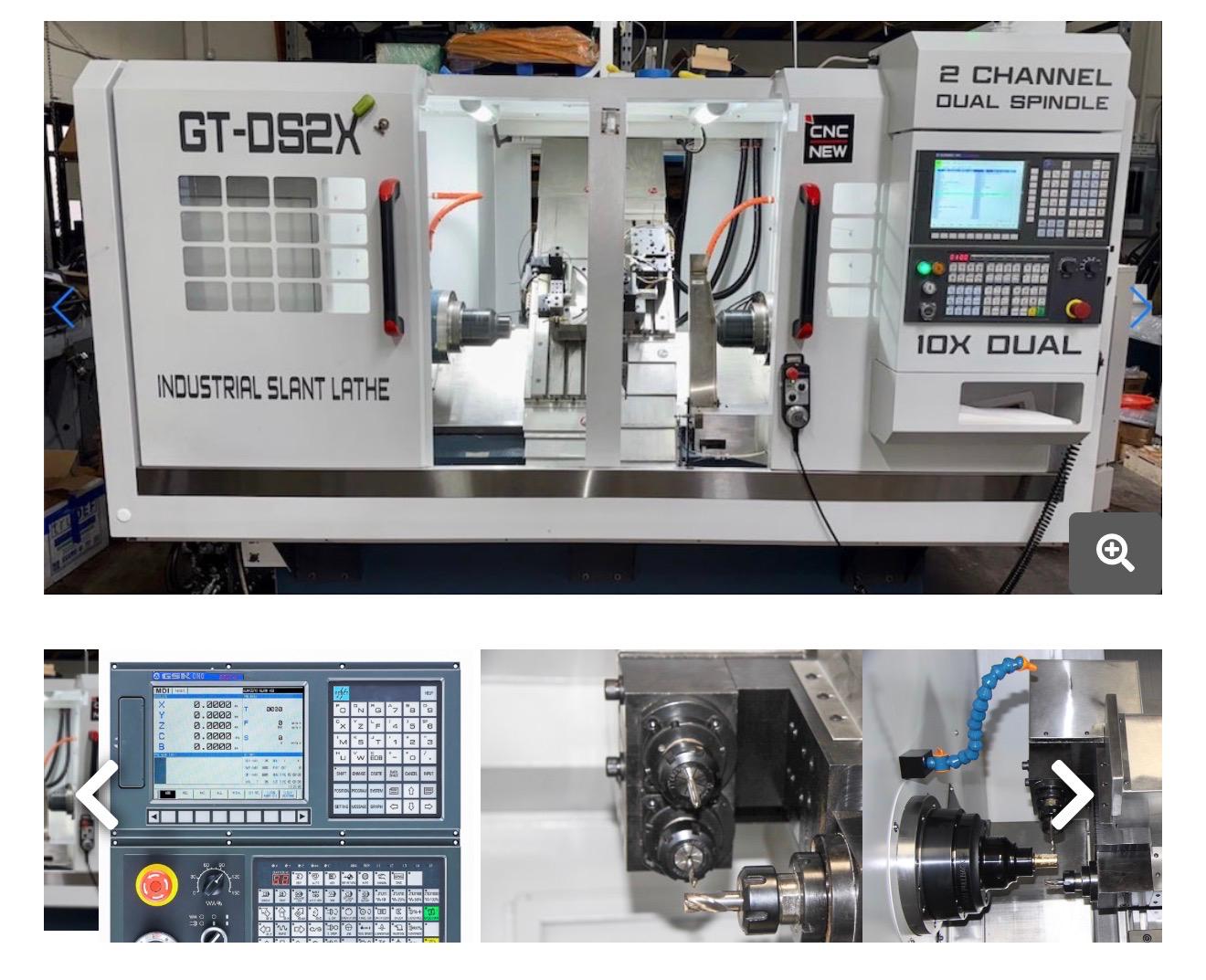

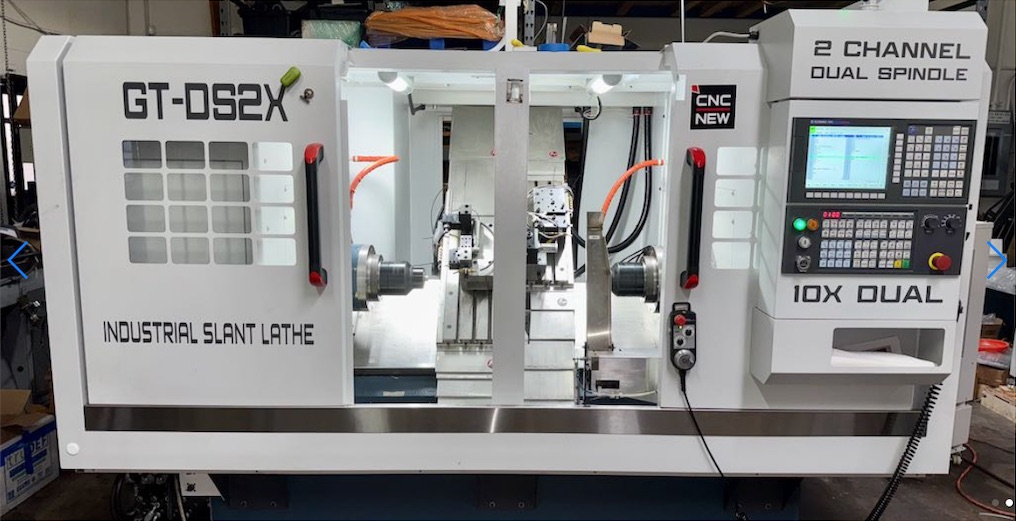

Sub-spindle and dual-spindle configurations are available across the CNC New lineup. Contact us to discuss the right configuration for your production requirements.

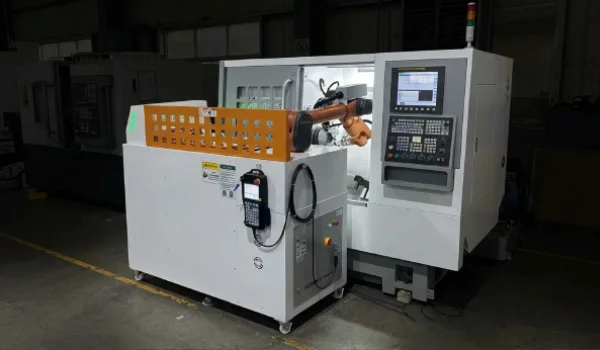

Absolutely. The GT-30L MAX integrates seamlessly with robotic arm loading systems, vibratory bowl feeders, gravity feed & track loaders, and bar feeders — creating a fully automated turning cell with minimal operator intervention.

A gang tool lathe mounts all cutting tools on a linear gang plate simultaneously — the axes simply slide to the next tool, eliminating turret indexing time entirely. For high-volume precision parts, gang tool turning centers deliver dramatically shorter cycle times and higher hourly part yields.

Iron-Clad Warranty & Lifetime Support

Your production doesn't stop, and neither do we. Every GT-30L MAX is backed by our comprehensive warranty and supported directly from our Santa Ana, California headquarters — no overseas time zones, no outsourced call centers.

We stand firmly behind the rugged durability of our machines. All warranty support and parts dispatch are handled directly from our SoCal facility.

1-Year Mechanical Warranty Every GT-30L MAX comes with one year of comprehensive coverage on all mechanical components, ensuring your investment is fully protected from day one.
2-Year Electrical Warranty An industry-leading two years of coverage on all electrical components — drives, motors, cables, and controls — because electronics are where most post-sale surprises occur.
Extended Warranty Available For added peace of mind, we offer custom extended warranties upon request. Contact our Santa Ana team for details.
OEM Control Warranties Enjoy added coverage directly from our control partners Fanuc and GSK — global warranties backed by the manufacturers themselves.
Direct U.S.-Based Support When you call CNC New, you speak directly to the engineers and technicians who build, integrate, and program these machines. No third parties, no delays.
Massive On-Site Parts Inventory We maintain a large inventory of spare parts, precision ball screws, and electronics at our Southern California facility — ready for immediate dispatch.
Remote Diagnostics & Integration Our technicians can troubleshoot, optimize cycle times, and resolve programming issues remotely to get you back to making chips fast.

The CNC New Commitment

"Purchasing a machine from an importer often means you are on your own after the sale. We have over 30 years of PLC development and CNC integration experience under one roof. We build them. We warrant them. We support them for life."

GT-30L MAX Custom Options & Upgrades

Configure the GT-30L MAX to fit your exact production workflow. From standalone precision machining to fully automated, lights-out manufacturing cells.

Because we engineer and assemble these machines in-house, we can tailor the GT-30L MAX to solve your specific production bottlenecks. Choose from our factory-integrated options:

Automation & Material Handling

Maximize your spindle uptime and reduce operator intervention.

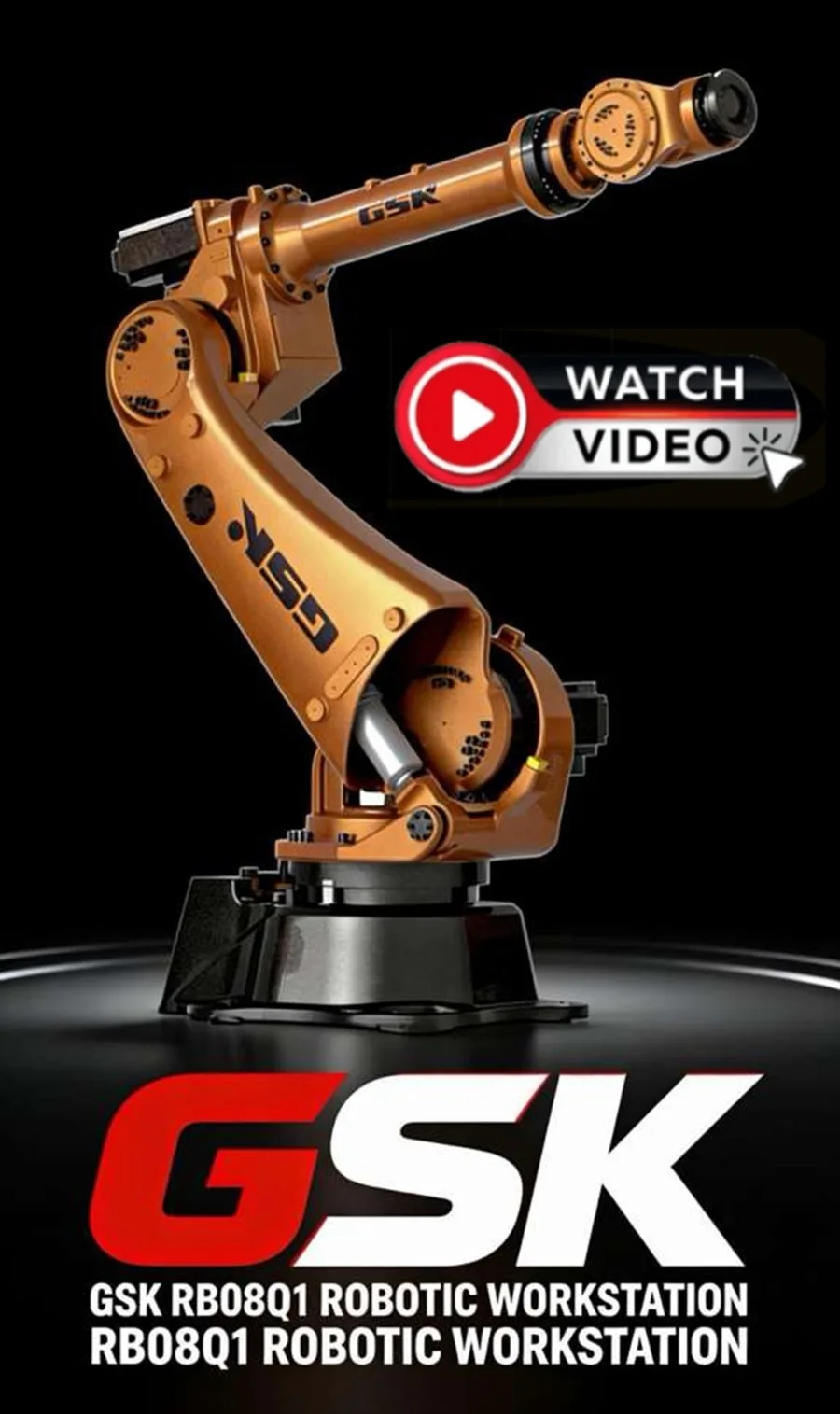

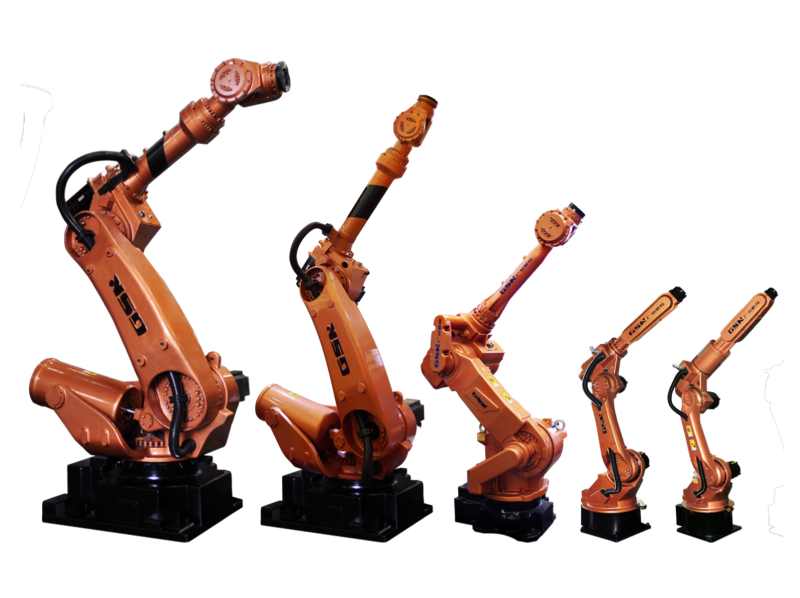

High-Speed Autoloading Integrate robotic arm-loading systems, gantry loaders, vibratory bowls, or gravity feed tracks for continuous, unattended production of individual parts.

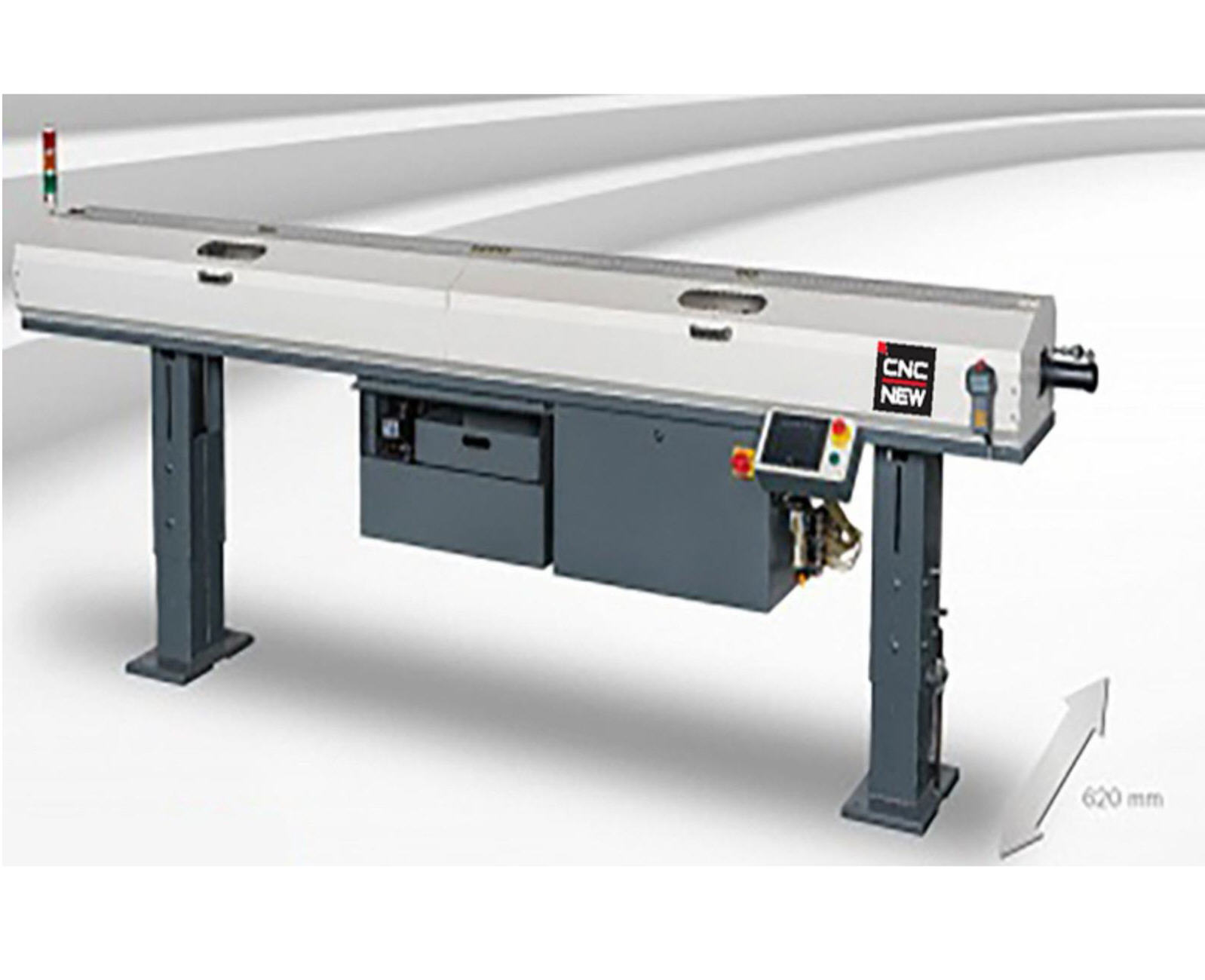

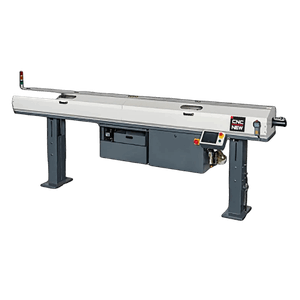

CNC New 320 12-Ft Bar Feeder Seamlessly pair your lathe with our dedicated 12-foot bar feed system for high-volume, continuous slug production and maximum lights-out capability.
Finished Part Catchers Safely separate delicate finished components from the chip tray to prevent surface damage.
Chip Conveyors Automated chip evacuation systems keep your workspace clean and prevent thermal buildup during 24/7 runs.

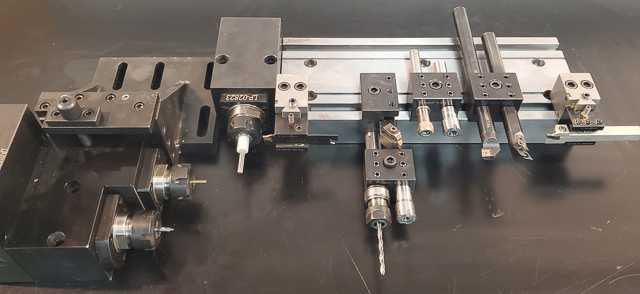

Workholding & Tooling Configurations

Adapt to any part geometry with versatile, ultra-rigid setups.

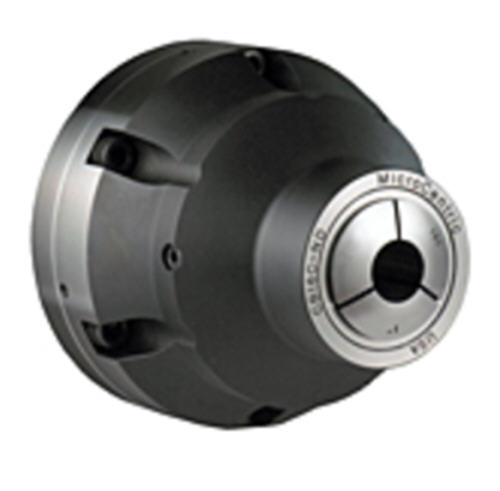

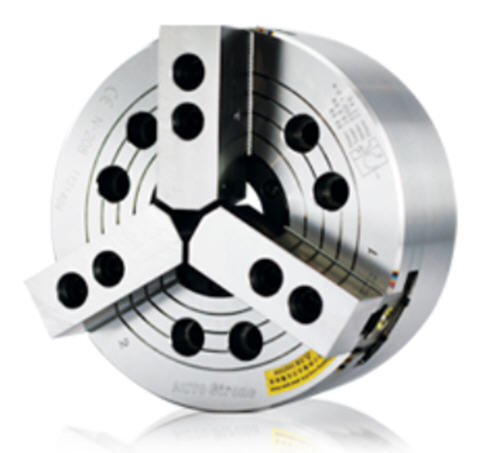

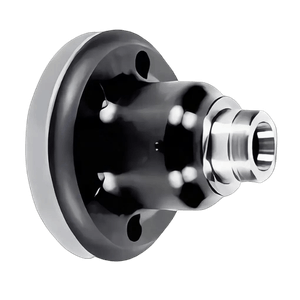

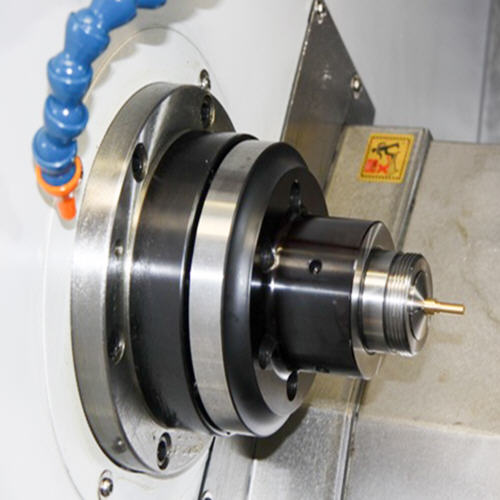

Collet & Chuck A2-4 Spindle Nose that can utilize a wide variety of collet chucks (5C, 16C) and pneumatic 3-Jaw Chucks.
Flexible Plates Tool table center height 55mm.

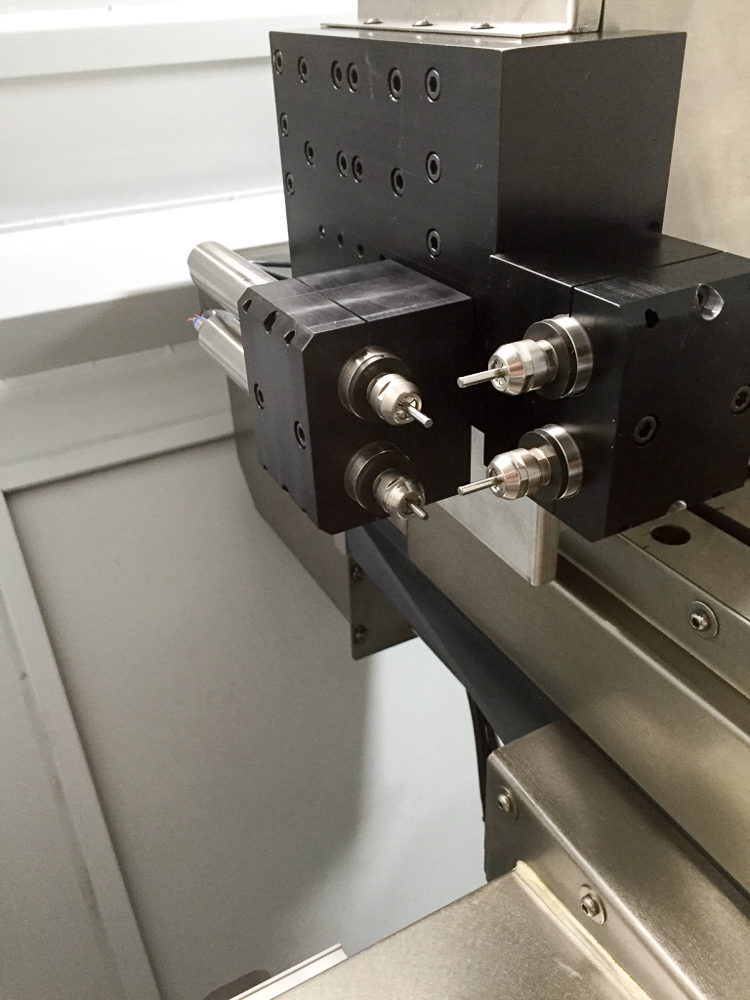

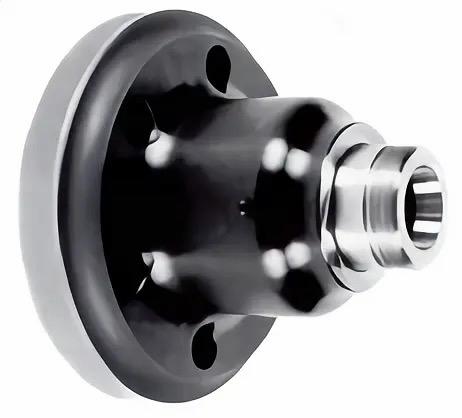

Live Tooling Packages The lower table height gives room for servo-driven radial and axial live tools. Standard 3/4" tool holders to utilize standard tooling.
Spindle Motor Upgrade Standard 3 HP, with an optional upgrade to 5 HP.
Expanded Bar Capacity Upgrade the standard 30 mm drawtube bore.

Control Systems

Standardize your shop floor.

Fanuc or GSK Controls Select the CNC brain that your machinists already know and trust. Both options are fully supported by our custom Autodesk Fusion 360 post-processors.

Need a Highly Specialized Setup?

"Our California-based engineering team routinely develops custom macro-programming, unique tooling fixtures, and specialized automation cells. If your part requires a custom solution, we can build it."

01 Footprint & Specs

02 K25 Swiss Gallery

03 FAQs

04 Support & Warranty

05 Custom Options

K25 AUTOMATIC GANG-STYLE SWISS LATHE SPECIFICATIONS
Specification	Standard / S.A.E.	Metric
Capacities
Max. Bar Capacity	0.98 in	25 mm
Max. Part Length	7.87 in	200 mm
Max. Part Length Sub-Spindle	3.14 in	80 mm
Max Drill Diameter Axial	0.39 in	Φ10 mm
Max Tapping Diameter Axial	0.2657 in	M8
Axes Rapid Speeds
X1 Rapid Speed	1,260 in/min	32,000 mm/min
Y1 Rapid Speed	1,260 in/min	32,000 mm/min
Z1 Rapid Speed	1,260 in/min	32,000 mm/min
X2 Rapid Speed	1,260 in/min	32,000 mm/min
Z2 Rapid Speed	1,260 in/min	32,000 mm/min
Spindles
Main Spindle Bore	1.06 in	27 mm
Max Spindle Speed	10,000 rpm	10,000 rpm
Max Sub-Spindle Speed	8,000 rpm	8,000 rpm
Tool Stations
O.D. Tools	Five	Five
Front Cutting Tools	Four	Four
Radial Tools	Four	Four
Tool Holder Size	12×12×100–120 mm
Requirements & Motors
Main Spindle	5 hp	3.7 kW
Axes Motors	1 hp (750 W)	0.750 kW, 4 Nm
Live Tool Motors	¾ hp (600 W)	0.600 kW, 3.2 Nm
Coolant Capacity	32 gallons	100 Liters
Power Required	30 KVA, 208–240 VAC 3-Phase
Machine Dimensions
Machine Height	72 in (6 ft)	1,830 mm
Sheet Metal Length	85 in (7.1 ft)	2,165 mm
Sheet Metal Width	49 in (3.9 ft)	1,205 mm
Machine Weight	5,732 lbs	2,600 kgs

A Swiss-type lathe uses a sliding headstock — the bar stock moves axially through a guide bushing while the tools remain stationary near the cutting zone. This dramatically reduces deflection on long, slender parts, enabling micron-level precision that conventional lathes simply cannot achieve. The K25 takes this further with 7-axis simultaneous machining, a sub-spindle for backwork, and servo-driven live tooling — making it a complete done-in-one production center rather than just a turning machine.

The K25 handles bar stock up to 25 mm (0.98″) in diameter — covering the vast majority of small-part Swiss machining applications in medical, aerospace, and electronics. Despite its full 7-axis capability, the machine occupies a compact 85″ × 49″ footprint and weighs 5,732 lbs, making it easy to fit multiple K25 cells on a typical shop floor without sacrificing production capacity.

Yes. The K25 comes standard with a sub-spindle running up to 8,000 rpm, enabling complete part machining in a single chucking. The sub-spindle picks off the part directly from the main spindle, machines the back face, and ejects the finished component — eliminating secondary operations, reducing handling errors, and dramatically increasing throughput on complex parts.

The K25 is available with the new GSK 988TD dual-core CNC — featuring a 1 ms interpolation period, 0.1 µm accuracy, up to 12 feed axes and 6 spindles, and a color touchscreen interface. Fanuc controls are also available for shops that prefer to standardize on an existing platform. Both options are fully supported by our custom Autodesk Fusion 360 post-processors, and machinists familiar with G-code transition seamlessly to either control.

The K25 excels in any application requiring high precision on small-diameter, long, or complex parts. Primary industries include medical (bone screws, dental abutments, surgical instruments), aerospace & defense (fasteners, hydraulic fittings, sensor housings), automotive (fuel system components, transmission parts), and electronics (connectors, micro-shafts, pins). If your parts are under 25 mm diameter and demand tight tolerances, the K25 is built for them.

Absolutely. The K25 is equipped with a 5 HP servo C-axis main spindle and 1 HP axis motors delivering the torque and rigidity needed to cut stainless steel, titanium, Inconel, and other difficult alloys without chatter. C3 precision-ground ball screws and H-style linear rails maintain ±0.002 mm travel deviation even under aggressive cutting conditions — so you hold tight tolerances on hard materials without sacrificing tool life or surface finish.

Yes. The K25 supports servo-driven radial and axial live tools for milling, drilling, tapping, cross-drilling, and slotting — all within the same chucking as the turning operations. Combined with full C-axis interpolation on both the main and sub-spindle, the K25 functions as a complete Swiss mill-turn center. Complex features like hex flats, cross-holes, and off-center bores are produced in a single automated cycle with no operator intervention.

Absolutely. The K25's open architecture is purpose-built for 24/7 unattended production. It integrates seamlessly with the UF-326 servo-driven bar feeder, robotic arm-loading systems, vibratory bowl feeders, and finished-part catchers — creating a complete Swiss turning cell that runs lights-out from raw bar to finished part with minimal operator intervention.

Every K25 purchase includes hands-on training from our engineering team in Santa Ana, California — the same people who built, configured, and programmed your machine. We cover control operation, G-code programming, tooling setup, and maintenance. Because the GSK 988TD is highly intuitive, most machinists with prior CNC experience are running production parts within their first day. Post-sale, our local SoCal team provides direct phone and remote diagnostic support, and we maintain a massive on-site spare parts inventory for rapid dispatch.

Iron-Clad Warranty & Lifetime Support

Your precision production can't afford downtime — and with CNC New behind your K25, it won't have to. Every K25 Gang-Style Swiss Lathe is backed by our comprehensive warranty and supported directly by our engineering team in Santa Ana, California — the same people who built, configured, and programmed your machine.

1-Year Mechanical Warranty Complete coverage on all mechanical components from the moment your K25 is installed — spindle, gang tool slide, ballscrews, guideways, and every moving part in between.
2-Year Electrical Warranty Industry-leading protection on all drives, servo motors, cables, encoders, and CNC controls — the most comprehensive electrical coverage in its class.
OEM Control Warranties Manufacturer-level protection backed directly by Fanuc and GSK — global coverage on every control system, straight from the source.
Direct U.S.-Based Support When you call CNC New, you speak directly to the engineers and technicians who build, integrate, and program these machines. No third parties, no delays.
Massive On-Site Parts Inventory We maintain a large inventory of spare parts, precision ball screws, and electronics at our Southern California facility — ready for immediate dispatch.
Remote Diagnostics & Integration Our technicians can troubleshoot, optimize cycle times, and resolve programming issues remotely to get you back to making chips fast.

The CNC New Commitment

"Purchasing a machine from an importer often means you are on your own after the sale. We have over 30 years of PLC development and CNC integration experience under one roof. We build them. We warrant them. We support them for life."

K25 Automatic Gang-Style Swiss Lathe Custom Options & Upgrades

Configure the K25 Automatic Gang-Style Swiss Lathe to fit your exact production workflow. From standalone precision machining to fully automated, lights-out manufacturing cells.

Because we engineer and assemble these machines in-house, we can tailor the K25 Automatic Gang-Style Swiss Lathe to solve your specific production bottlenecks. Choose from our factory-integrated options:

Automation & Material Handling

Maximize your spindle uptime and reduce operator intervention.

High-Speed Autoloading Integrate robotic arm-loading systems, gantry loaders, vibratory bowls, or gravity feed tracks for continuous, unattended production of individual parts.
CNC New 320 12-Ft Bar Feeder Seamlessly pair your lathe with our dedicated 12-foot bar feed system for high-volume, continuous slug production and maximum lights-out capability.
Finished Part Catchers Safely separate delicate finished components from the chip tray to prevent surface damage.
Chip Conveyors Automated chip evacuation systems keep your workspace clean and prevent thermal buildup during 24/7 runs.

Workholding & Tooling Configurations

Adapt to any part geometry with versatile, ultra-rigid setups.

Collet & Chuck A2-4 Spindle Nose that can utilize a wide variety of collet chucks (5C, 16C) and pneumatic 3-Jaw Chucks.
Flexible Plates Tool table center height 55mm.
Live Tooling Packages The lower table height gives room for servo-driven radial and axial live tools. Standard 3/4" tool holders to utilize standard tooling.

Push harder materials and larger stock.

Spindle Motor Upgrade Standard 3 HP, with an optional upgrade to 5 HP.
Expanded Bar Capacity Upgrade the standard 30 mm drawtube bore.

Control Systems

Standardize your shop floor.

Fanuc or GSK Controls Select the CNC brain that your machinists already know and trust. Both options are fully supported by our custom Autodesk Fusion 360 post-processors.

Need a Highly Specialized Setup?

01 Footprint & Specs

02 GT Series Gallery

03 FAQs

04 Support & Warranty

05 Custom Options

GT SERIES SPECIFICATIONS
Specification (S.A.E. / Metric)	GT-15	GT-10	GT-7
Capacities
Chuck Size	8.26 in210 mm	6 in152 mm	5.3 in135 mm
Max. Turning Diameter	15.74 in400 mm	15.74 in400 mm	12.6 in320 mm
Max. Swing Over Table	7.55 in192 mm	7.55 in192 mm	4.33 in110 mm
Bar Capacity	1.96 in50 mm	1.96 in50 mm	1.37 in35 mm
Travels & Feed Rate
Max. X-Axis Travel	17.5 in420 mm	17.5 in420 mm	12 in304 mm
Max. Z-Axis Travel	13 in333 mm	13 in333 mm	11 in280 mm
Rapid on X-Axis	590 in/min15 m/min	590 in/min15 m/min	590 in/min15 m/min
Rapid on Z-Axis	787 in/min20 m/min	787 in/min20 m/min	787 in/min20 m/min
Axis Max. Feed Rate	400 in/min10.15 m/min	400 in/min10.15 m/min	400 in/min10.15 m/min
Spindle & Motors
Spindle Power	15 hp11 kW	15 hp11 kW	5 hp (opt. 7.5 hp)3.7 kW (opt. 5.5 kW)
X/Z Axis Servo Motors	5.2 hp3.9 kW	5.2 hp3.9 kW	2 hp1.5 kW
Spindle Speed	15–4,500 rpm	15–4,500 rpm	15–4,500 rpm
Spindle Bore	2.40 in61 mm	2.21 in56 mm	1.81 in46 mm
Draw Tube Bore	1.96 in50 mm	1.77 in45 mm	1.37 in35 mm
Spindle Nose	A2-6	A2-5	A2-4
Collet Actuator	Hydraulic (opt. pneumatic)	Hydraulic	Hydraulic (opt. pneumatic)
Base
Integral Casting	One-piece, 45° slant	One-piece, 45° slant	One-piece, 45° slant
Rail Span	17.32 in440 mm	17.32 in440 mm	14.25 in362 mm
Casting Weight	3,300 lb1,500 kg	3,300 lb1,500 kg	2,600 lb1,200 kg
Linear Rails	X/Z: 30 mm, P accuracy	X/Z: 30 mm, P accuracy	X: 25 mm, Z: 30 mm, P accuracy
Ground Ball Screws	X/Z: 32 mm, C3	X/Z: 32 mm, C3	X: 25 mm, Z: 32 mm, C3
Auto Lubrication	Linear rails & ball screws	Linear rails & ball screws	Linear rails & ball screws
Headstock	Cast iron	Cast iron	Cast iron
Tooling & Work Holding
Gang Tool Table Height	3.543 in90 mm	2.756 in70 mm	2.165 in55 mm
T-Slot Table Length	24.41 in620 mm	24.41 in620 mm	19.68 in500 mm
Center Height Holders	1/2, 3/4 in riser blocks or custom holders	1/2, 3/4 in riser blocks or custom holders	3/8, 1/2, 3/4 in custom blocks
Collet Nose Options	A2-6	A2-5	5C, 16C, 3J, threaded, dead length
Precision
Positional Repeatability	±0.0001 in±0.00254 mm	±0.0001 in±0.00254 mm	±0.0001 in±0.00254 mm
Positional Accuracy	±0.0001 in±0.00254 mm	±0.0001 in±0.00254 mm	±0.0001 in±0.00254 mm
Positional Resolution	±0.00005 in±0.00127 mm	±0.00005 in±0.00127 mm	±0.00005 in±0.00127 mm
Spindle Runout	±0.00005 in±0.00127 mm	±0.00005 in±0.00127 mm	±0.00005 in±0.00127 mm
C-Axis Indexing	0.001° increment	0.001° increment	0.001° increment
Requirements
Coolant Capacity	18.5 gal70 L	18.5 gal70 L	15.8 gal60 L
Coolant Pump	3/4 hp0.5 kW	3/4 hp0.5 kW	3/4 hp0.5 kW
Compressed Air (live tools)	5 SCFM, clean & dry	5 SCFM, clean & dry	5 SCFM, clean & dry
Power Required	16 KVA, 42 A	16 KVA, 42 A	7.5 KVA, 25 A
Voltage	208–240 VAC, 3-phase	208–240 VAC, 3-phase	208–240 VAC, 3-phase
Machine Dimensions
Floor Space (L × W)	68 × 35 in1,730 × 890 mm	68 × 35 in1,730 × 890 mm	60 × 34 in1,530 × 860 mm
Machine Height	63.0 in1,600 mm	63.0 in1,600 mm	61.0 in1,550 mm
Sheet Metal Length	87.4 in2,220 mm	87.4 in2,220 mm	78.7 in2,000 mm
Sheet Metal Width	56.6 in1,438 mm	56.6 in1,438 mm	51 in1,295 mm
Machine Weight	4,500 lb2,045 kg	4,500 lb2,045 kg	3,500 lb1,600 kg

Specifications are subject to change. Contact CNC New to confirm the configuration for your application.

GT-15 industrial slant gang tool lathe - image 1

GT-15 industrial slant gang tool lathe - image 2

GT-15 industrial slant gang tool lathe - image 3

GSK 980TDi CNC control on GT Series gang tool lathes

GT-10 industrial slant gang tool lathe - image 1

GT-10 industrial slant gang tool lathe - image 2

GT-10 industrial slant gang tool lathe - image 3

GT-7 CNC gang tool slant bed lathe - image 1

GT-7 CNC gang tool slant bed lathe with doors open

GT-7 CNC gang tool slant bed lathe - image 3

GT-7 CNC gang tool slant bed lathe, angled view

All three are 45° slant-bed CNC gang tool lathes on one-piece cast bases. The GT-15 is the largest, with an A2-6 spindle nose, 8-inch chuck, 1.96-inch bar capacity and 15 hp spindle. The GT-10 is the mid-size model, with an A2-5 nose, 6-inch chuck and 1.77-inch draw tube bore. The GT-7 is the compact model, with an A2-4 nose that accepts 5C, 16C, 3J, threaded and dead-length collets, 1.37-inch bar capacity and a 5 hp spindle (7.5 hp optional).

The GT-15 has a 1.96-inch (50 mm) bar capacity and the GT-7 has a 1.37-inch (35 mm) bar capacity. The GT-10 has a 1.77-inch (45 mm) draw tube bore. The GT-15 is also offered with larger spindle bore options; contact us to match a spindle to your bar size.

The GT-15 and GT-10 are available with Fanuc or GSK CNC controls. Call us to discuss control options for the GT-7.

Yes. Each model has a T-slot gang tool table and a 5 SCFM air supply for live tools, with 0.001° C-axis indexing. The GT-15 and GT-10 can also mount turrets, Y-axis modules and combinations of axial, radial and vertical live tools.

All three models list ±0.0001-inch positional repeatability and positional accuracy, ±0.00005-inch positional resolution and ±0.00005-inch spindle runout.

Yes. CNC New integrates bar feeders, vibratory bowl feeders and gravity feed loaders with gang tool lathes, and offers the GT-15 paired with the GSK RB08Q1 6-axis robot loader for lights-out production.

The GT-15 needs 68 × 35 inches of floor space and 16 KVA at 208–240 VAC three-phase. The GT-7 needs 60 × 34 inches and 7.5 KVA at 208–240 VAC three-phase. Contact us for GT-10 installation requirements.

Sales, service, repairs and spare parts are handled directly from CNC New's Southern California headquarters in Santa Ana. Call (626) 249-5050.

Support & Warranty

Direct Local Support Sales, service and repairs are handled directly by CNC New from our Southern California headquarters at 1516 E. Edinger Ave., Santa Ana, CA.
Spare Parts Rapid access to spare parts and expert service to keep your GT Series lathe in production.
Warranty Contact our team for warranty coverage details on new GT Series machines.
Machine Tending & Trade-Ins Ask about machine tending services and our Trade-In Program when upgrading to a new GT Series lathe.

Call (626) 249-5050

GT Series Custom Options

Controls & Spindle

Fanuc or GSK CNC controls (GT-15, GT-10)
GT-15 spindle bore options
GT-7 7.5 hp spindle upgrade
Pneumatic collet actuator option (GT-15, GT-7)

Tooling

Axial, radial and vertical live tool spindles
Turrets and Y-axis modules (GT-15, GT-10)
Riser blocks and custom center-height tool holders

Work Holding

Micro Centric work holding
Auto Strong chucks
ATS collet chucks with spindle nose mounting for GT-15, GT-10 and GT-7
5C, 16C, 3J, threaded and dead-length collet noses (GT-7)

Automation

Bar feeders

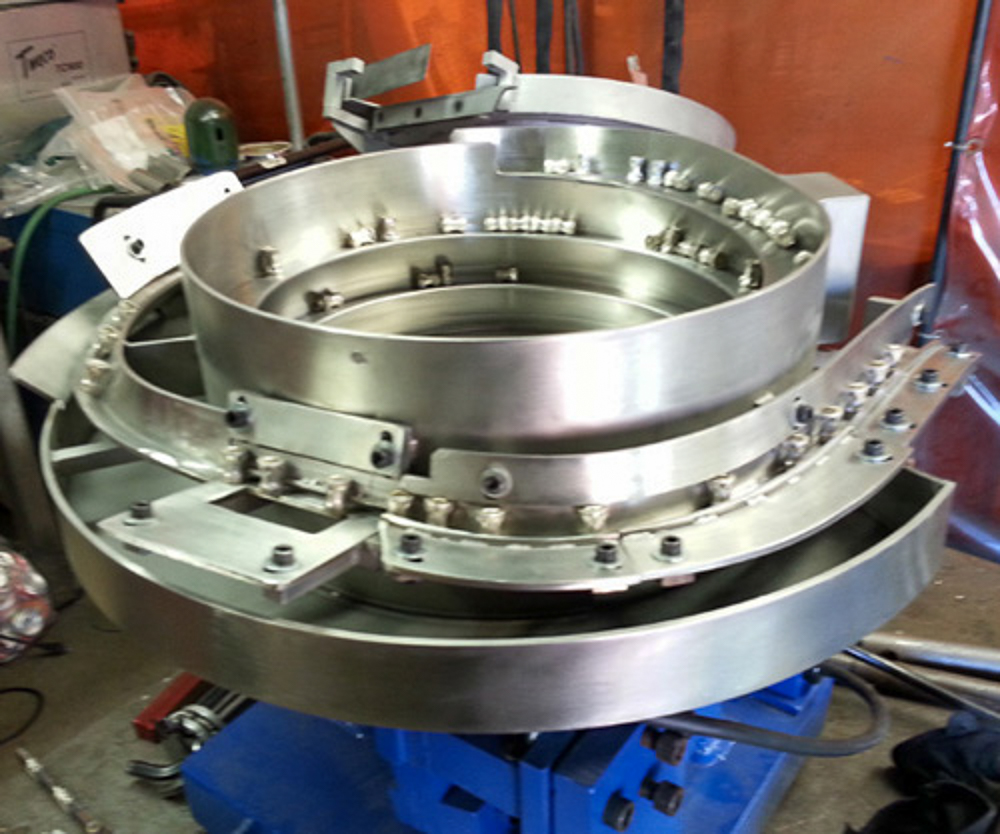

Vibratory bowl feeders and gravity feed loaders
GSK RB08Q1 6-axis robot loader with the GT-15

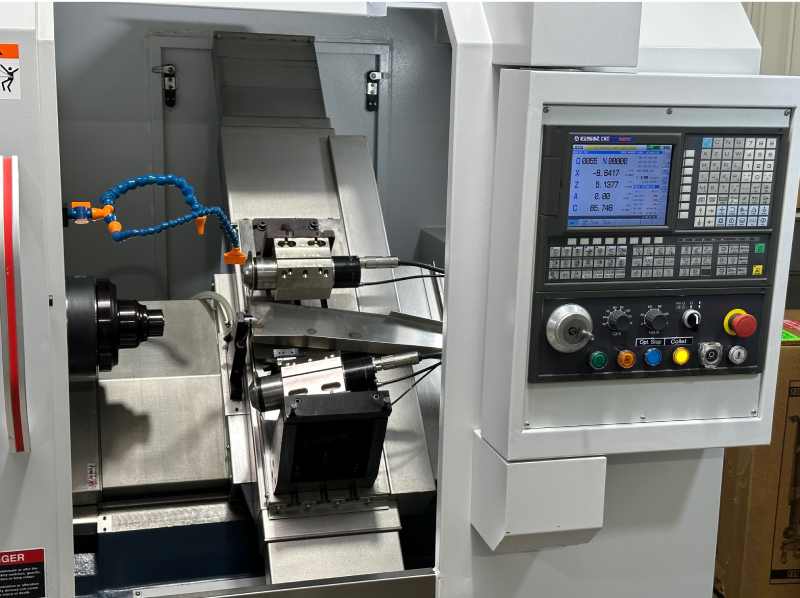

Special order configurations

01 Technical Specs

02 GSK Control Gallery

03 FAQs

04 Support & Warranty

05 Turnkey Package

GSK RB08Q1 TECHNICAL SPECIFICATIONS
Specification	Value
General
Model	GSK RB08Q1
Axes	6-Axis
Payload Capacity	8 kg / 17.6 lbs
Machine Weight	75 kg / 165 lbs
Drive Method	AC Servo Motors & Drives
Installation Options	Floor, Ceiling, or Wall Mount
Reach & Accuracy
Standard Work Reach	1,440 mm / 56.7"
Max. Horizontal Reach	1,500 mm
Max. Vertical Reach	1,600 mm
Repeated Positioning Accuracy	±0.05 mm

Joint Motion Range
Joint	Range
J1 — Base Rotation	±170°
J2 — Lower Arm	+120° / -85°
J3 — Upper Arm	+75° / -155°
J4 — Wrist Roll	±180°
J5 — Wrist Up/Down	±135°
J6 — Wrist Twist	±360°

Maximum Speed
Joint	Speed
J1, J2, J3	130°/s
J4	420°/s
J5	252°/s
J6	620°/s

GSK RB08Q1 robotic workstation - main view

The RB08Q1 is designed to handle payloads of up to 8 kg (17.6 lbs) and boasts a massive working reach of 1,440 mm. It also features a maximum horizontal reach of 1,500 mm and a vertical reach of 1,600 mm.

Programming is incredibly fast and user-friendly. Using the intuitive “teach-in” mode, an operator can physically guide the robotic arm through its pick-and-place path, and the system instantly memorizes the exact movements. Because of this, full programming from scratch can easily be completed in just a single shift.

Yes! The RB08Q1 eliminates proprietary lock-in by interfacing readily with Haas, Fanuc, and GSK CNC controls. When paired with a GSK-controlled machine, the communication between the controller and the robot is flawlessly synchronized, giving you the reliability of a single-source provider.

Absolutely. The RB08Q1 carries an IP65 rating, meaning it is fully sealed against shop dust and cutting fluids. It is engineered for relentless, 24/7 unattended operation on the shop floor.

The robot arm itself is built on a nimble, lightweight 75 kg (165 lbs) frame. To maximize your available workspace, the robot offers flexible installation and can be mounted directly on the floor, ceiling, or wall.

The $29,995 base price gets your automation journey started with the GSK RB08Q1 6-Axis Robot Arm, the Electrical Cabinet & Controller System, standard installation, and one (1) day of on-site training. (Note: Travel/per diem, specialized grippers, and auxiliary conveyor equipment are quoted separately.)

The workstation is currently available in specialized models that are optimized for tending disk-shaped workpieces and shafts. It utilizes a smart three-point inner/outer positioning method, which allows operators to make rapid, on-the-fly adjustments without needing to replace parts.

Yes. The system features a rotary lifting table that fully supports both single-part lifting and continuous conveyor line integration. This makes it an ideal drop-in solution for true lights-out manufacturing.

Warranty & Direct Support

Your production doesn’t stop, and neither do we.

Every GSK RB08Q1 Robotic Workstation is backed by our comprehensive warranty and supported directly from our Santa Ana, California headquarters — no overseas time zones, no outsourced call centers. We stand firmly behind the rugged durability of our automation systems. All warranty support and parts dispatch are handled directly from our SoCal facility.

1-Year Mechanical Warranty Every GSK RB08Q1 comes with one year of comprehensive coverage on all mechanical components, ensuring your automation investment is fully protected from day one.
2-Year Electrical Warranty An industry-leading two years of coverage on all electrical components — drives, servo motors, cables, and controllers — because electronics are where most post-sale surprises occur.
Extended Warranty Available For added peace of mind, we offer custom extended warranties upon request. Contact our Santa Ana team for details.
OEM Manufacturer Warranty Enjoy added coverage directly from GSK — global warranties backed by the robotics manufacturer itself.
Direct U.S.-Based Support When you call CNC New, you speak directly to the automation engineers and technicians who configure, integrate, and program these robotic cells. No third parties, no delays.
Massive On-Site Parts Inventory We maintain a large inventory of robotic spare parts, end-of-arm tooling components, and electronics at our Southern California facility — ready for immediate dispatch.
Remote Diagnostics & Integration Our technicians can troubleshoot, optimize robotic motion paths, and resolve programming issues remotely to get you back to lights-out production fast.

The CNC New Commitment

"Purchasing automation from an importer often means you are on your own after the sale. We have over 30 years of PLC development and robotic integration experience under one roof. We integrate them. We warrant them. We support them for life."

Turnkey Automation Package

GT-15 & GSK RB08Q1

The Ultimate Palletized System for Lights-Out Production

System Status: Available for Custom Quote
Manufacturer: CNC New, Inc.
Installation: Full Turnkey Integration Available

GT-15 and GSK RB08Q1 Integrated Turnkey Automation System

Overview

Take your production floor to the next level with our fully integrated, palletized automation cell. By combining the heavy-duty milling and turning power of the GT-15 Industrial Slant Gang Tool Lathe with the high-speed precision of the GSK RB08Q1 Robotic Workstation, we have created a seamless, drop-in solution for true lights-out manufacturing.

This turnkey package eliminates the bottleneck of manual part loading. The GT-15’s massive 18 inches of X-axis travel easily accommodates complex multi-tool setups, while the IP65-rated GSK robot automatically tends the machine with rapid, repeatable precision. Whether you are machining disk-shaped workpieces or heavy shafts, this bundled system drastically reduces cycle times, lowers labor costs, and maximizes your spindle uptime.

Key System Advantages

True Unattended Production The GSK RB08Q1 effortlessly handles payloads up to 8 kg (17.6 lbs), loading and unloading parts from its integrated rotary lifting table directly into the GT-15’s chuck.
Seamless Single-Source Communication When paired with the GT-15’s available GSK CNC controls, communication between the machine and the robotic arm is highly intuitive and flawlessly seamless. Fanuc control integration is also fully supported.
Palletized “Drop-In” Design Engineered so the robotic workstation sits perfectly next to the GT-15, allowing for rapid installation and segregated human-robot safety zones.
Complex Machining, Done-in-One The GT-15 features a 97 mm center height, giving you the clearance to run traditional gang tools alongside Y-axis modules and live tooling (Axial, Radial, and Vertical).
Shop-Floor Durability Built on a highly rigid, single-piece heavy slant casting, the GT-15 pairs with the IP65-rated robot for relentless reliability in the harshest machining environments.

System Components
