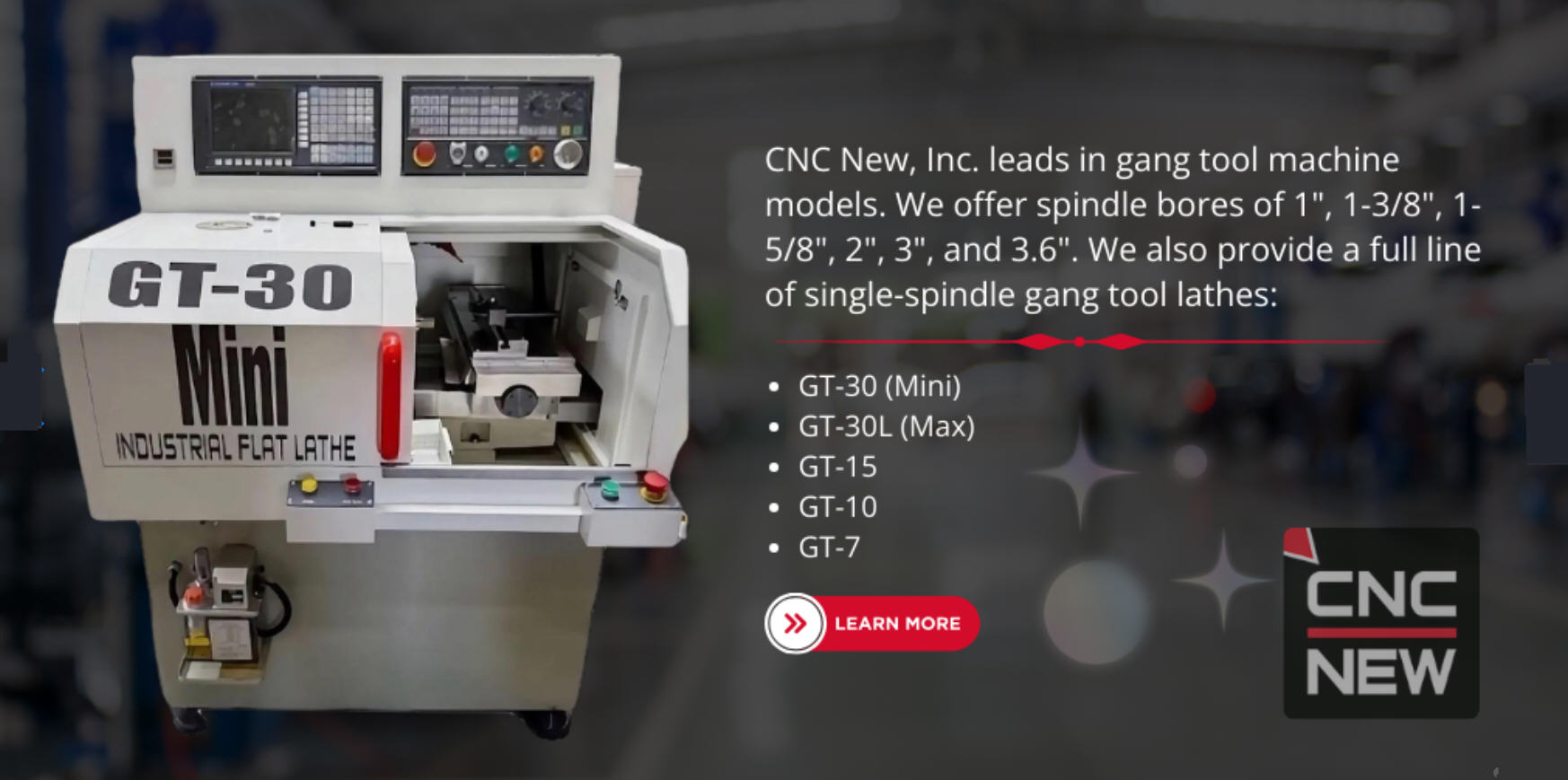

Single Spindle Gang Tool Lathes
Gang Tool Lathe — The GT-30 Mini CNC Gang Tool Turning Center
Cut cycle times, not floor space. The industry's most versatile gang tool CNC lathe with 5-axis capability, C-axis live tooling, and optional sub-spindle — built for high-volume precision turning.
Maximize production density with ultra-fast turning and industrial rigidity. The GT-30 Mini gang tool lathe is now available with Fanuc or GSK controls for high-volume medical, aerospace, defense, and automotive applications.
- Lightning-Fast Cycle Times: True gang tool positioning eliminates turret indexing delays. High-speed X/Z-axis motion at 1,180 IPM ensures near-zero tool changes and maximum hourly part yield — making this the ultimate high precision lathe for second operation work and primary turning alike.
- Massive Output, Minimal Footprint: Deploy a high-performance 6,000 RPM / 5 HP spindle in a compact 52" × 44" envelope — reclaiming your shop floor without sacrificing turning capacity. Ideal as a small footprint lathe for cell-based manufacturing.
- Uncompromising Precision: A 1,500 lb Meehanite cast base provides the thermal stability and damping required for 24/7 operations on exotic materials with < 0.0001" tolerances. This is the high precision turning center your production demands.
- Complete Part Processing: Available with axial live tools, radial live tools, and C-axis capability — transforming the GT-30 into a true mill-turn lathe and multi-tasking turning center that eliminates secondary operations.
5-Axis Gang Tool Lathe Capability — The GT-30 Mini 5-Axis Turning Center
Machine complex geometries in a single setup. Simultaneous 5-axis operation allows the cutting tool to approach the workpiece from virtually any angle — unlocking entirely new capabilities and profit centers for your shop floor. The GT-30 Mini is not just a gang tool lathe; it's a fully capable 5-axis turning center and C-axis lathe designed for complete part machining.
Unlock Maximum Production Efficiency with Multi-Tasking Turning
- Infinite Complexity:Produce intricate parts, deep undercuts, and complex contours that traditional CNC lathes simply can't touch. With full C-axis interpolation and radial live tools, your gang tool turning center becomes a mill-turn turning center capable of milling, drilling, tapping, and cross-work — all in one chucking.
- "Done-in-One" Setup: Eliminate secondary handling and costly multi-fixture workflows to drastically reduce setup errors. This is the core advantage of a multi-tasking lathe — parts come off complete.
- Superior Surface Finish: Continuous, simultaneous tool motion prevents dwell lines and guarantees superior surface quality — critical for medical, aerospace, and defense components machined on high precision turning centers.
- Accelerated Cycle Times: Consolidate multiple operations into one fluid cycle to slash total machining time and speed up prototyping. Whether you need a second operation lathe or a primary production machine, the GT-30 delivers.
Upgrade to the GT-30L Max Gang Tool Lathe
The big brother to the Mini — same proven gang tool platform, engineered for larger bar capacity, higher spindle power & heavier production cycles.
More Productivity
Higher output per shift with faster cycle times & greater capacity.
Better Price
Maximum ROI — world-class performance at an unbeatable price point.
Why Manufacturers Trust CNC New Gang Tool Lathes — 30+ Years of Excellence
The industry's most complete line of high-production gang tool lathes and turning centers.
Rapid access to spare parts and expert service to keep your production running.
World-class components, including Japanese NSK ball screws, at a highly competitive price.
Direct sales, service, and repairs backed by our Southern California headquarters.
Industries Powered by CNC New Gang Tool Lathes & Automated Turning Centers
Delivering complex geometries and uncompromising accuracy for the world's most demanding sectors. From flight-critical aerospace hardware to life-saving medical implants, the GT-30 Mini's gang tool precision, 5-axis capability, and optional robotic arm loading systems meet the strict regulatory and tolerance requirements of every application.
Aerospace & Aviation
Flight-critical parts, jet engine blisks, and turbine components machined on high precision gang tool lathes with 5-axis simultaneous turning.
Medical & Dental
Orthopedic implants, dental abutments, bone screws, and surgical instruments produced on C-axis turning centers with sub-micron repeatability.
Defense & Military
Fire control fittings, guidance system housings, and projectile components manufactured on multi-tasking turning centers meeting MIL-SPEC requirements.
Automotive Performance
High-precision differential shafts, fuel injector bodies, and turbo components turned on automated lathes with vibratory bowl loading systems for unattended production.
Energy Sector
Rugged valve stems, specialized downhole components, and high-tolerance fittings machined on dual spindle lathes for maximum throughput.
Electronics & Technology
Micro-connectors, semiconductor handling parts, and fiber optic ferrules produced on small footprint lathes with axial live tools and radial live tools.
Tool, Die & Mold Making
Hardened punch pins, cavity inserts, core pins, and specialized tool holders turned on mill-turn lathes with full C-axis capability.
Marine Engineering
Corrosion-resistant shaft components, propeller hubs, and hydraulic fittings machined on twin spindle turning centers built for heavy-duty, high-volume runs.
Big Automation In A Small Footprint
Don't let the compact size fool you—the GT-30 Mini is built for serious 24/7 automation. Its open architecture allows for straightforward integration of turnkey loading and tooling solutions, transforming this space-saving lathe into a fully automated, lights-out turning cell.
VIBRATORY BOWL FEEDERS
Maximize spindle uptime on dedicated small-part runs. Bowl feeders take the operator out of the equation, letting the machine run itself for a true "set it and forget it" solution.
GRAVITY FEED PARTS & TRACK LOADERS
A brilliant, cost-effective way to achieve consistent, unattended throughput. Gravity feeds are the perfect way to achieve continuous unattended operation without the heavy investment of a robotic arm.
CONTINUOUS BAR FEEDING
Seamlessly pair your Mini with automated bar feed systems to keep raw materials flowing for uninterrupted shaft, pin, and high-volume slug production around the clock
LIVE TOOLING INTEGRATION
Turn the Mini into a multi-tasking powerhouse. Add live tooling to mill, drill, and tap in a single setup, completely eliminating secondary operations during your automated cycle
General Questions About the GT-30 Mini Gang Tool Lathe
See more details: GT30 - Mini Photos, FAQs, Support & Warranty, and Custom Options.
| GT-30 MINI SPECIFICATIONS | ||
|---|---|---|
| Specification | S.A.E. | Metric |
| Capacities | ||
| Max. Swing Over Bed | 9.4 in | 240 mm |
| Max. Turning Diameter | 2.7 in | 70 mm |
| Max. Swing Over Table | 4.7 in | 120 mm |
| Bar Capacity | 1.181 in | 30 mm |
| Travels & Feed Rates | ||
| X-Axis Travel | 10 in | 254 mm |
| Z-Axis Travel | 7 in | 180 mm |
| Rapid on X-Axis | 787 in/min | 20,000 mm/min |
| Rapid on Z-Axis | 787 in/min | 20,000 mm/min |
| Spindle | ||
| Power Rating | 3 hp | 2.2 kW |
| RPM | 100 – 6,000 rpm | 100 – 6,000 rpm |
| Spindle Bore | 1.41 in | 36 mm |
| Drawtube Bore | 1-1/16 in | 27 mm (Optional 30 mm) |
| Spindle Nose | A2-4 | A2-4 |
| Collet Actuator | Pneumatic Cylinder | Optional Hydraulic |
| Base | ||
| Integral Casting | One Piece Construction | Flat Bed |
| Rail Span | 14.25 in | 362 mm |
| Casting Weight | 1,763 lbs | 800 kg |
| Linear Rails | 0.98 in P3 Accuracy | 25 mm P3 Accuracy |
| Ball Screws | Precision Ground 0.98 in C3 Accuracy | 25 mm |
| Auto Lubrication | Linear Rails & Ball Screws | Linear Rails & Ball Screws |
| Head Stock | Cast Iron | Cast Iron |
| Turret Workholding | ||
| Gang Turret Table Height | 1.377 in | 35 mm |
| Table Length T-Slot | 17.71 in | 450 mm |
| Chuck Size | 5.3 in | 135 mm |
| Collet Nose Options | 5C | Special Custom Collets |
| Center Height Holders | 35 mm Tool Holders | Square & Round Holders |
| Precision | ||
| Positional Repeatability | ±0.0001 in (One-Tenth) | 0.003 mm |
| Positional Resolution | ±0.00005 in (50 Millionths) | 0.00127 mm |
| Positional Accuracy | ±0.0001 in (One-Tenth) | 0.003 mm |
| Spindle Runout | 0.00005 in (50 Millionths) | 0.003 mm |
| C-Axis Indexing (GSK) | Increment 0.001° | 360,000 Radial Position |
| Requirements | ||
| Coolant Capacity | 15 gallons | 60 Liters |
| Coolant Pump | 1/4 hp | 0.5 kW |
| Power Required | 2.5 kW KVA 30 amps | 208-240 VAC 3-Phase |
| Machine Dimensions | ||
| Floor Space (L x W) | 55 x 29 in | 1,380 x 710 mm |
| Machine Height | 56 in | 1,415 mm |
| Sheet Metal Length | 52 in | 1,320 mm |
| Sheet Metal Width | 44 in | 1,130 mm |
| Machine Weight | 2,425 lbs | 1,100 kg |
A gang tool lathe is a type of CNC turning center where multiple cutting tools are mounted on a linear gang plate instead of a rotating turret. Because all tools are positioned simultaneously, the machine eliminates turret indexing time, dramatically reducing cycle times for small to medium precision parts. Gang tool CNC lathes are ideal for high-volume production of parts under 2" in diameter.
A gang tool lathe uses a fixed gang plate with tools positioned side by side, allowing near-zero tool change times — the axes simply slide to the next tool. A turret lathe rotates between tool stations, which adds time per index. Gang tool turning centers excel at small-part, high-volume work where cycle time is critical.
Yes. Modern gang tool lathes like the CNC New GT-30 Mini feature C-axis capability with axial live tools and radial live tools, transforming the machine into a mill-turn lathe that can drill, tap, mill flats, mill slots, and perform off-center work — all in a single setup.
CNC gang tool lathes are used across aerospace, medical & dental, automotive, defense & military, electronics, energy, marine engineering, and tool & die industries. Any application requiring high-volume, high precision turning of small to medium parts benefits from gang tool turning centers.
A sub-spindle lathe (or sub-spindle turning center) features a secondary spindle that grabs the part from the main spindle to machine the back side — enabling "done-in-one" complete part processing without manual re-chucking. CNC New offers sub-spindle lathes as part of the GT-30 platform.
Absolutely. CNC New gang tool lathes integrate with robotic arm loading systems, vibratory bowl loading systems, and bar feeders to create fully automated turning centers for lights-out, unattended machine tending production.
Iron-Clad Warranty & Lifetime Support
Your production doesn't stop, and neither do we. Every GT-30 Mini is backed by our comprehensive warranty and supported directly from our Santa Ana, California headquarters.
When you invest in a machine from CNC New, Inc., you are never left waiting on an overseas time zone for answers. We provide the localized, rapid-response support that high-volume shops require.
- Comprehensive Machine Warranty: Every GT-30 Mini comes with a robust factory warranty covering mechanical and electronic components, ensuring your investment is fully protected from day one. (Link to full warranty PDF here).
- OEM Control Warranties: Enjoy the added peace of mind that comes with industry-leading, global warranties directly from our control partners, Fanuc and GSK.
- Direct U.S.-Based Support: No outsourced call centers. When you call CNC New, you speak directly to the engineers and technicians who build, integrate, and program these machines.
- Massive On-Site Parts Inventory: We maintain a multi-million-dollar inventory of spare parts, Japanese ballscrews, and electronics at our Southern California facility—ready for immediate, overnight dispatch.
- Remote Diagnostics & Integration: Leveraging our custom-built support software, our technicians can help troubleshoot, optimize cycle times, and resolve programming issues remotely to get you back to making chips instantly.
The CNC New Commitment
"Purchasing a machine from an importer often means you are on your own after the sale. We have over 25 years of PLC development and CNC integration experience under one roof. We build them. We warrant them. We support them for life."
