GSK RB165 6-Axis Material Handling: Load 363 Lbs. Reach 96"


GSK RB165 6-Axis: This unit has an 96" reach and can handle pay loads up to 363 pounds. Can be adapted to a wide range of applications.

Year: New
Location: Southern California
Status: 8-16 Week Lead Time
Manufacturer: GSK CNC Equipment Co., LTD.

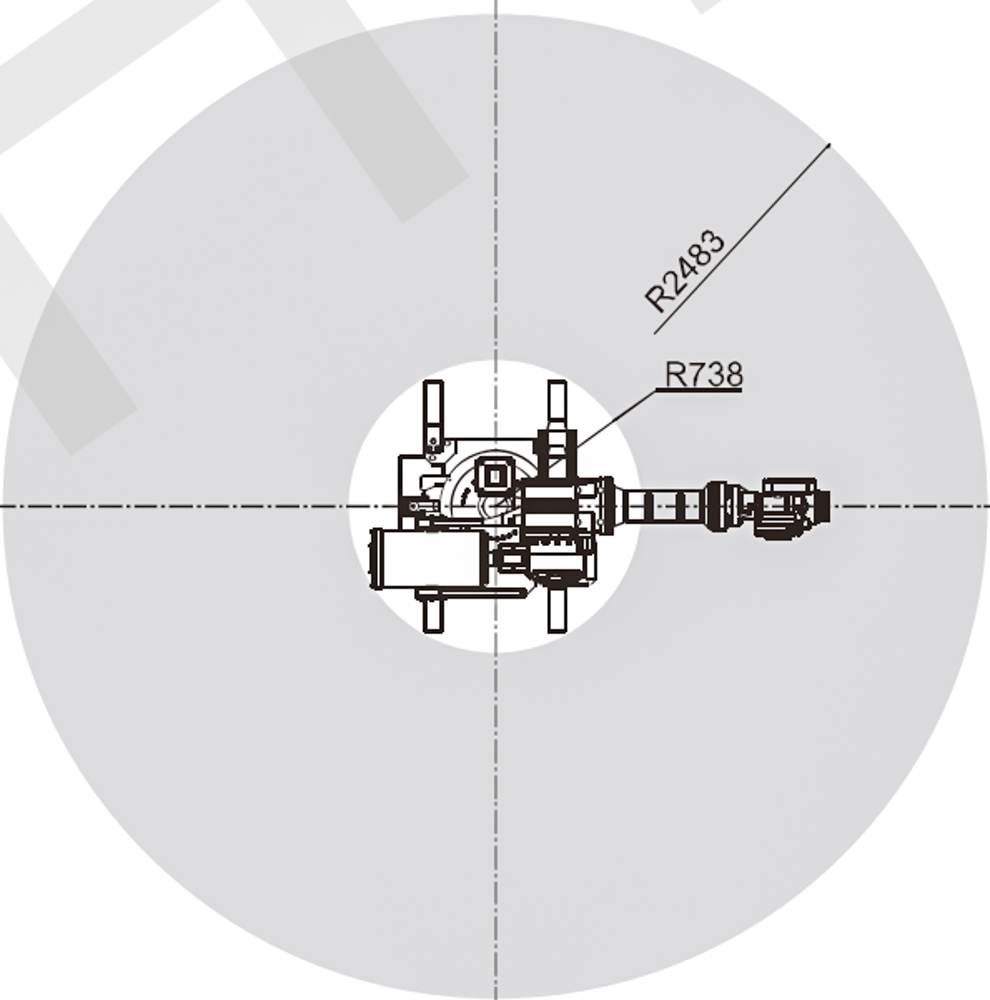

GSK RB165 6-Axis Applications can include a wide range of applications. Payload maximum of 165 kg or 363 pounds weight, 2,463 mm or 96" radius range. Programming terminology between robot varies. GSK uses the programming terminology of J1 to J6 for their 6-Axis robots. Other robots reference the axis as SLURBT. (S) Swing or swivel, (L) lower Arm, (U) Upper Arm, (R) Rotate, (B) Bend, (T) Twist for Robot programming. The GSK communications between the CNC control and the Robot is very intuitive and seamless operation single source provider. Program instruction of the robot can be accomplished in as little as a single day of instruction. The arm can be manually moved and will memorize those movements in a teach in mode, which is more than enough capability for pick and place operations. The grippers can be configured to simulate hand movements. Situations where a robot should be considered include a long run of a single part, or a family of parts, heavy parts, parts that should not be touched because they are hot, cold, sharp, radioactive or otherwise dangerous to handle. Our mechanical engineering group can make recommendations on grippers, end-effectors, part load and unload tray, conveyor and pallet systems as well as complete enclosures as part of a complete system. Price includes robot, electrical cabinet, controller system, installation with a day of training not including travel costs or per diem expenses. Items to be determined would include grippers, fixtures, material handling requirements, palletizing, part conveyors, pick & place trays, enclosures and other auxiliary equipment including additional training.
