GSK RB03 6-Six Axis Table Top Robot: Load 6.6 Lbs. Reach 22"


GSK RB03 6-Axis Robot: Applications include deburring, polishing, video measuring, laser measurement systems, CMM, linear variable differential transformer (LVDT)-based hard gaging, marking systems and multiple automated infeed/outfeed options.

Year: New
Location: Southern California
Status: 8-16 Week Lead Time
Manufacturer: GSK CNC Equipment Co., LTD.

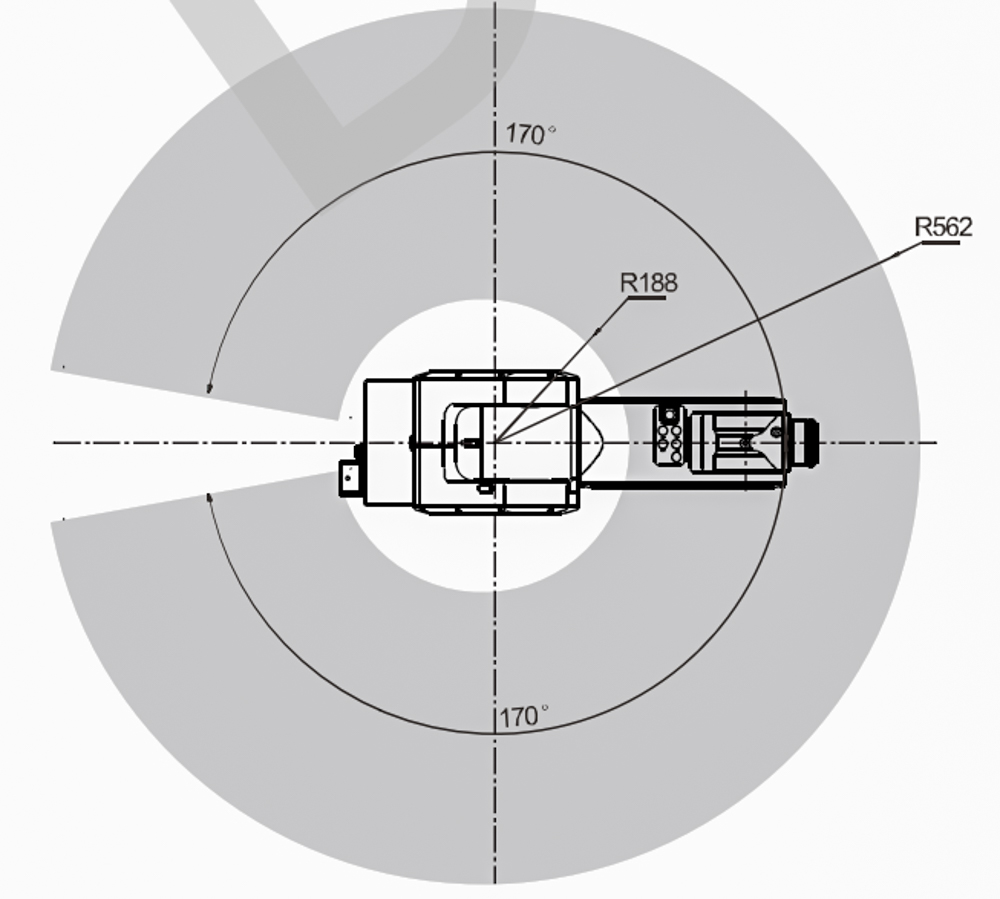

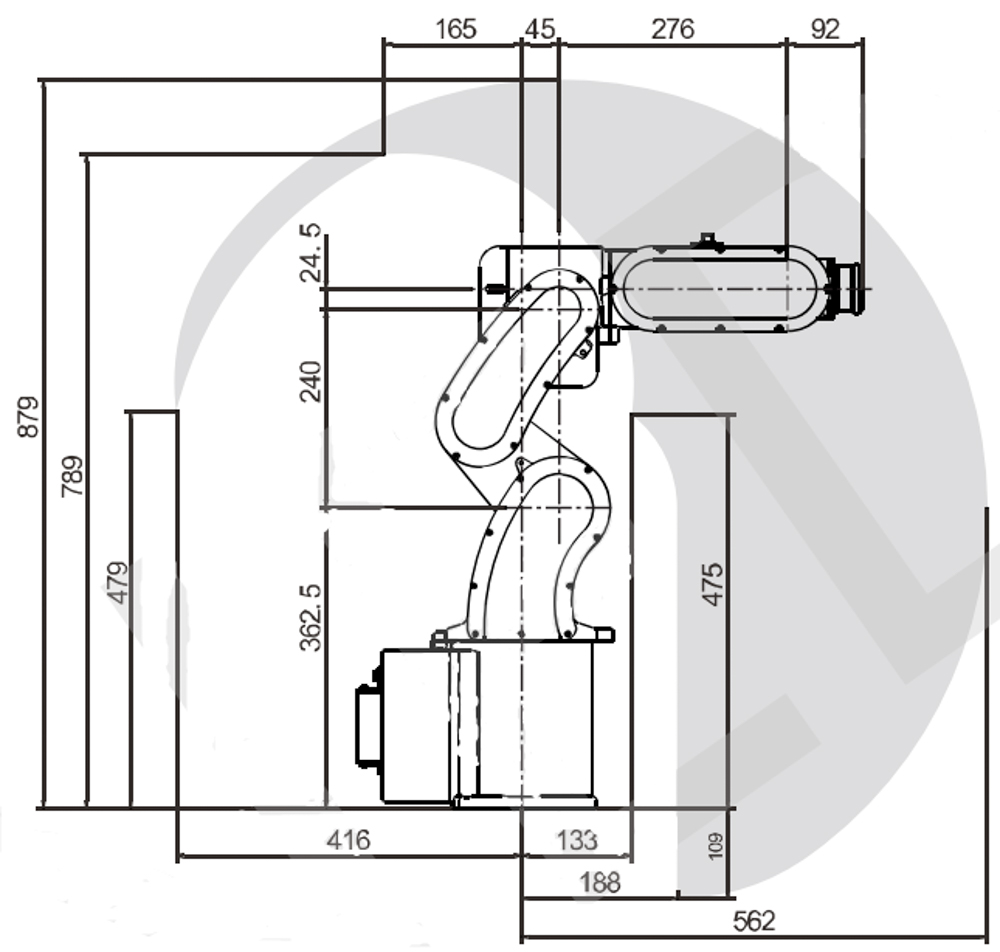

GSK RB03 6-Axis CNC Machine Loading & Unloading used for applications with CNC machines. Payload maximum of 3 kg or 6.6 pounds weight, 562mm or 22" radius range. Programming terminology between robot varies. GSK uses the programming terminology of J1 to J6 for their 6-Axis robots. Other robots reference the axis as SLURBT. (S) Swing or swivel, (L) lower Arm, (U) Upper Arm, (R) Rotate, (B) Bend, (T) Twist for Robot programming. The GSK communications between the CNC control and the Robot is very intuitive and seamless operation single source provider. Program instruction of the robot can be accomplished in as little as a single day of instruction. The arm can be manually moved and will memorize those movements in a teach in mode, which is more than enough capability for pick and place operations. The grippers can be configured to simulate hand movements. Situations where a robot should be considered include a long run automotive, aerospace and medical applications. Parts can be fed to the machine in bulk on trays, or from a feeder or parts conveyor. Our mechanical engineering group can make recommendations on grippers, end-effectors, part load and unload tray, conveyor and pallet systems as well as complete enclosures as part of a complete system. Price includes robot, electrical cabinet, controller system, installation with a day of training not including travel costs or per diem expenses. Items to be determined would include grippers, fixtures, material handling requirements, palletizing, part conveyors, pick & place trays, enclosures and other auxiliary equipment including additional training.
