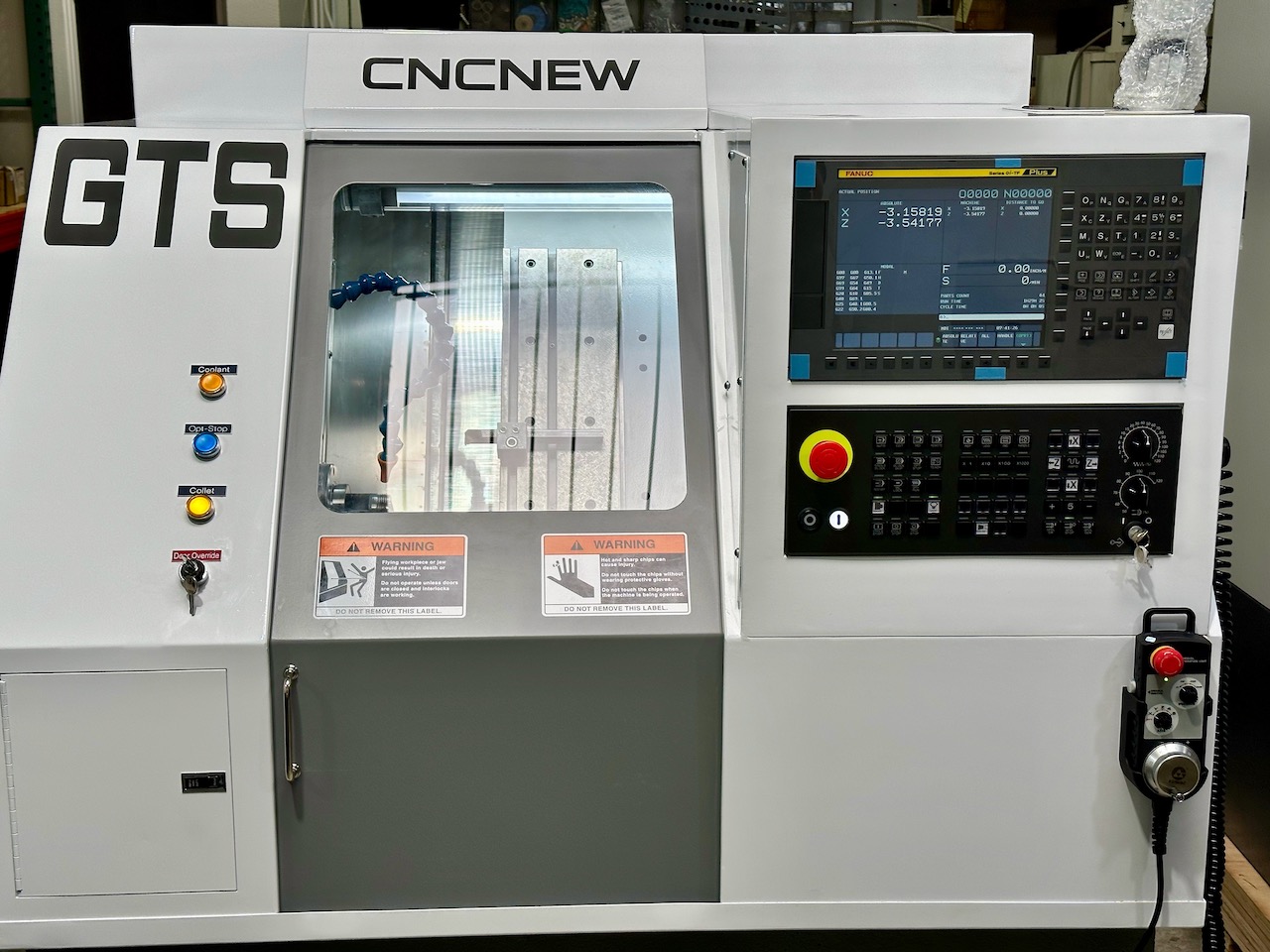

Smaller Space Requirements, The GTS Series Turning Centers provide superior mechanical advantages that equate to longer life, better performance, and highly accurate machining specifications. The GTS-27 mm (1.062 inches) and 15 inches X-axis travel, slant bed lathe is built with the most advanced machine construction technology offered in the industry today with features and flexibility unmatched in an affordable and sophisticated design. This document provides specifications for all models of GTS series machines.
This Model includes the 4-axis GTS-27 which includes the 5hp C-Axis Yaskawa spindle motor and drive and Mitsubishi X & Z Axis motors. Super Polymer Mineral Base The material used in our Super Polymer Mineral Base is superior to all metallic materials in dimensional and thermal stability, as well as being more resistant to chemicals and water. The one-piece Super Polymer Mineral Base absorbs sound and cutting energy, which provides quieter operation, reduces cutter excitement, and produces superior surface finishes. It will not rust; warp, bend, or bow under stress. It also supports faster travel with shorter settling times and enhanced tool life.
Blending a variety of mineral fillers with a polymer resin-binding agent produces the Super Polymer composite material. When blended, molded, and cured an extremely powerful cross-linked bond is formed producing an exceptionally strong, stable, and durable structure. The end result is an ideal structure for a machine tool base. Previously, polymer construction was only used by large companies like Hardinge, Studer, and Mikron. This superior material technology is universally accepted for its performance and stability advantages but, until now, has only been available in premium-priced machines.
X-Axis Travel: 15"
Z Axis Travel: 7.5"
Spindle Motor: 5hp
Spindle RPM : 0 to 6000
Spindle Bore: 1 1/16"
Maximum Bar Size: 1 1/16"
Axis Thrust: 900lbs
Feed Rate: 300 IPM
Rapid Travels: 800 IPM (1000 optional)
Positioning Accuracy: .0001"
Positioning Repeatability: .00005"
Machine Weight: 5650lbs
Machine Dimensions : 51" x 53" x 70"
