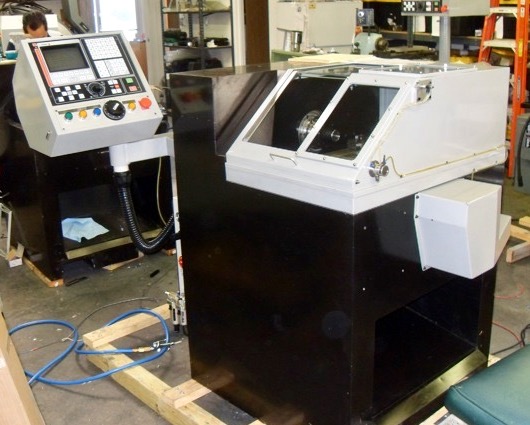

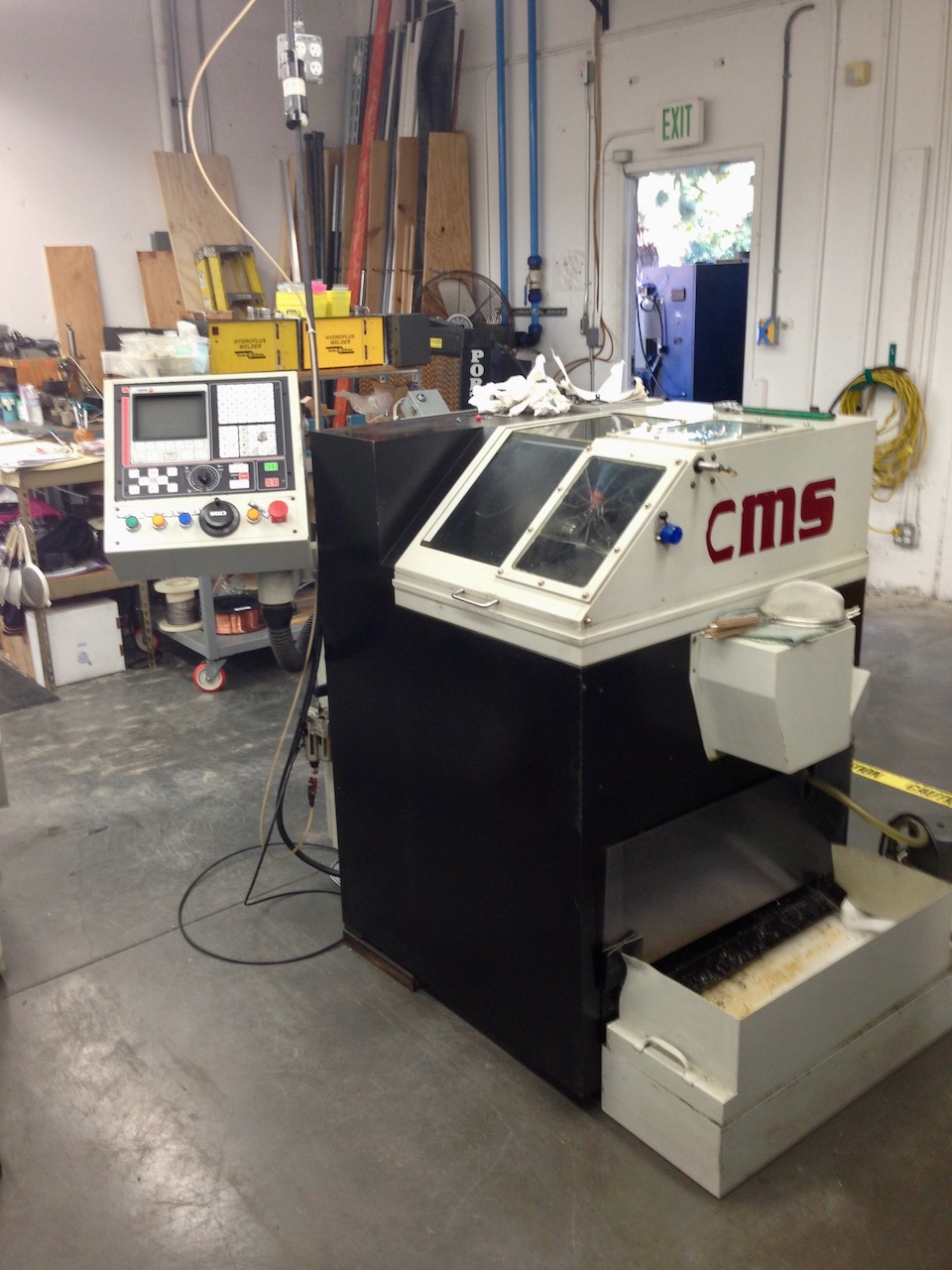

We have two GT-Xpress available at this time. We can provide the machines with Fagor 8025T CNC controls or can upgrade the machine to Fagor 8037T CNC controls. These machines have 5-bearing spindles with 6,000 rpm 5hp capacity. These are a very compact footprint and can provide years of reliable service. Call to discuss the best options for us to quote the machines.
X-Axis Travel: 12"
Z Axis Travel: 6.5"
Spindle Motor: 5hp
Spindle RPM: 100 to 6000
Spindle Bore : 1 1/16"
Spindle Nose: 5C
Maximum Chuck Size: 5"
Maximum Bar Size: 1 1/16"
Feed Rate: 300 IPM
Rapid Traverse: 800 IPM
Positioning Accuracy: .0001"
Positioning Repeatability: .00005"
Voltage: 230VAC
Machine Weight: 3240lbs
Machine Dimensions : 34" x 34" x 47"
