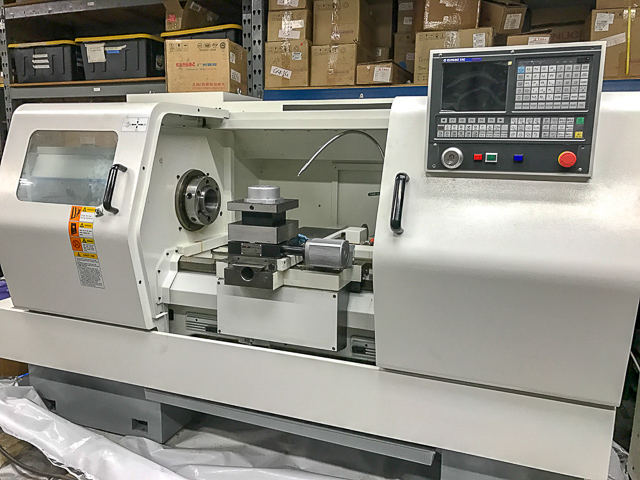

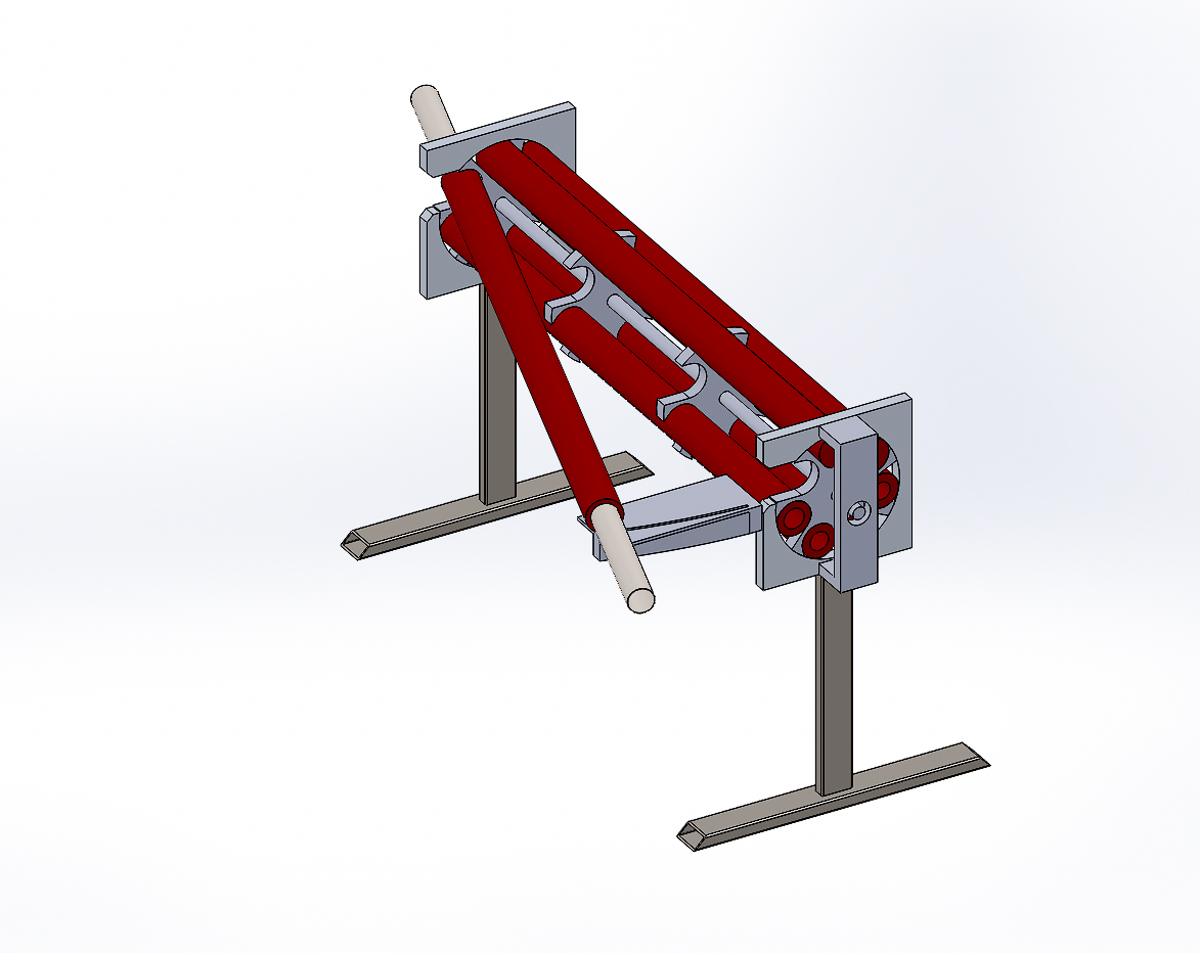

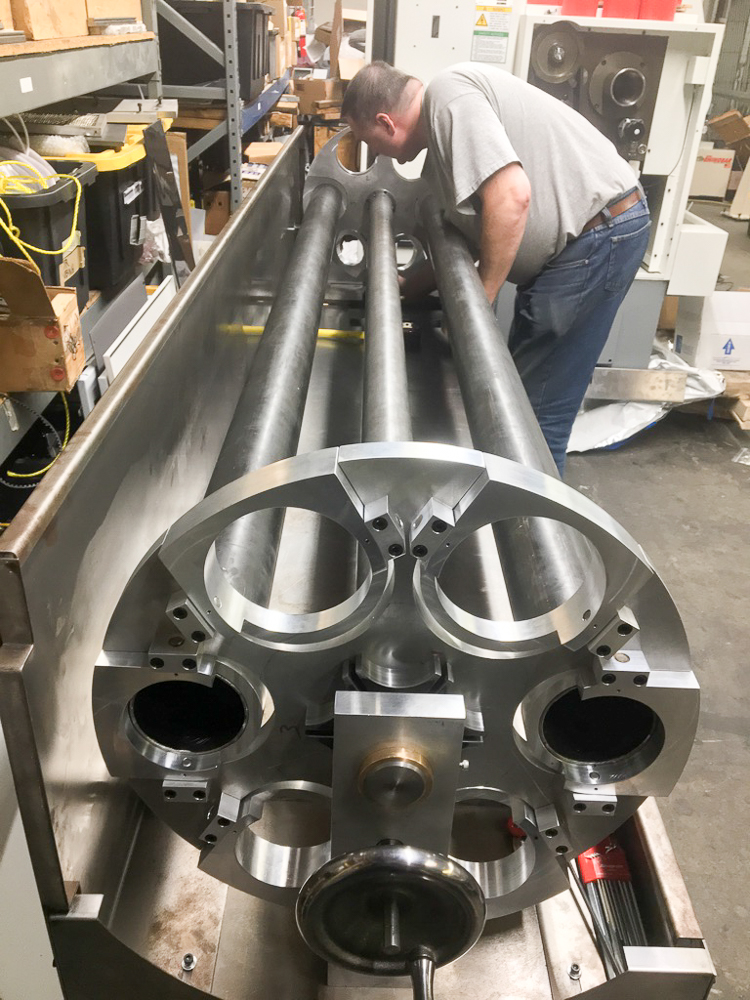

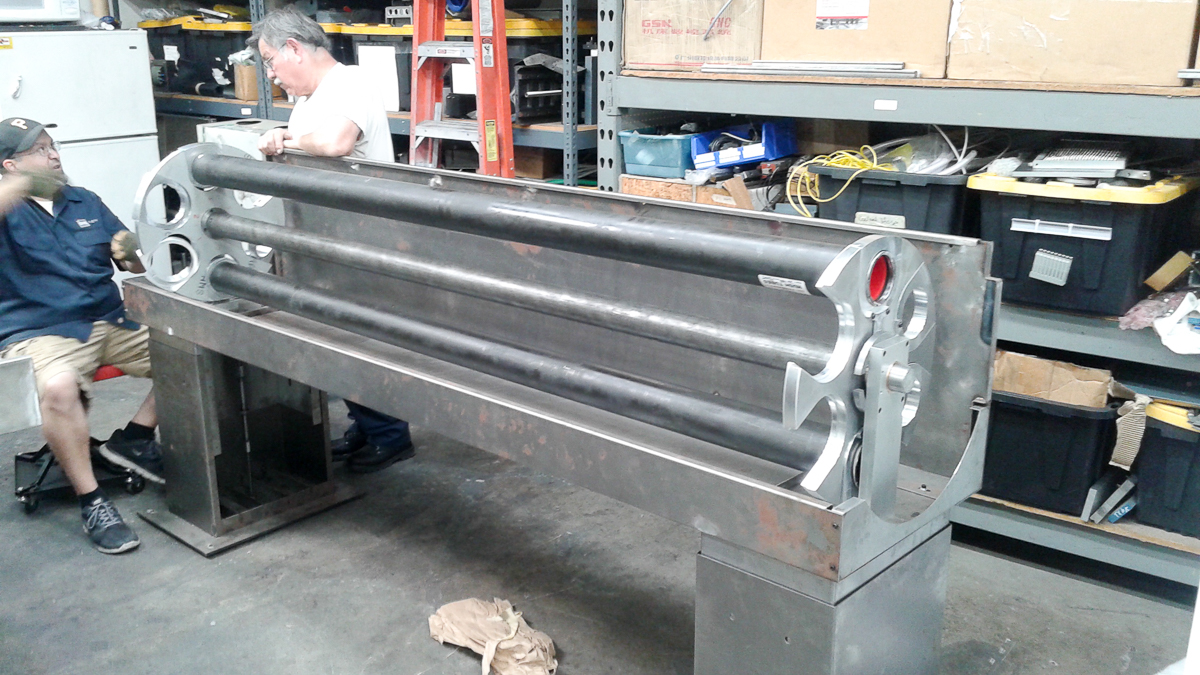

We manufactured the loader system on a 4" through-hole spindle machine for one of our customers. Very special project.
|

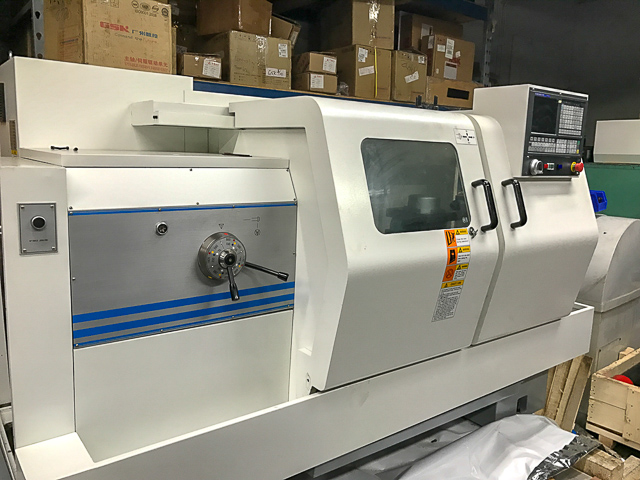

4" Tube Machine Specifications
|
|
Capacities
|
S.A.E
|
Metric
|
|
Max Swing Over Bed
|
19.6 in
|
500 mm
|
|
Max Swing Over Carriage
|
11 in
|
280 mm
|
|
Max Turning Diameter
|
19.6 in
|
500 mm
|
|
Distance Between Centers
|
77 in
|
1960 mm
|
|
Max Turning Length
|
72 in
|
1820 mm
|
|

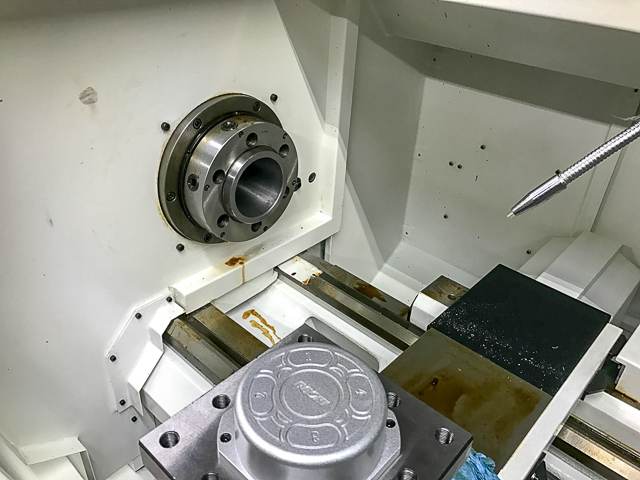

Spindle
|
|
|
|
Spindle Nose Type
|
D8 Short Taper, ISO 702
|
Cam-Locking Type
|
|
Spindle Bore
|
4”
|
105 mm
|
|
Spindle Speed RPM
|
12 Levels
|
36-1600
|
|
Spindle Drive Power
|
10 hp
|
7.5 kw
|
|
Tailstock
|
|
|
|
Quill Diameter
|
2.9 in
|
75 mm
|
|
Quill Travel
|
5.9 in
|
150 mm
|
|
Tail Stock Quill Taper
|
Morse No. 5
|
|
|
Turret
|
|
|
|
X & Z Rapid Traverse Rate
|
472.44 (in/min)
|
6/12 (m/min)
|
|
Number of Tools
|
4
|
4
|
|
Tool Selection
|
25 X 25
|
25 X 25
|
|
X-Axis Travel
|
11.8 in
|
300 mm
|
|
Z-Axis Travel
|
74.8 in
|
1900 mm
|
|
Requirements
|
|
|
|
Coolant Capacity
|
15 gallons
|
60 Liters
|
|
Coolant Pump
|
3/4 hp
|
0.5 Kilowatt
|
|
Power Required
|
7.5 KVA 25 amps
|
208-240 VAC 3-Phase
|
|
Machine Dimension
|
|
|
|
Floor Space L X W
|
138 X 54 in
|
3500 X 1370 mm
|
|
Machine Height
|
66.5 in
|
1690 mm
|
|
Machine Weight
|
4982 lbs.
|
2260 kgs
|
