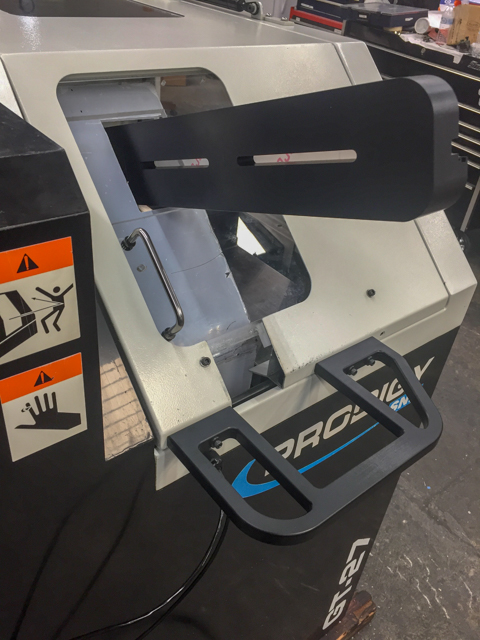

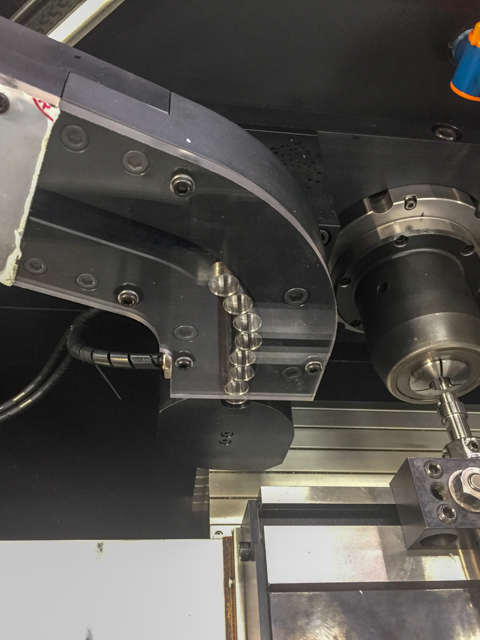

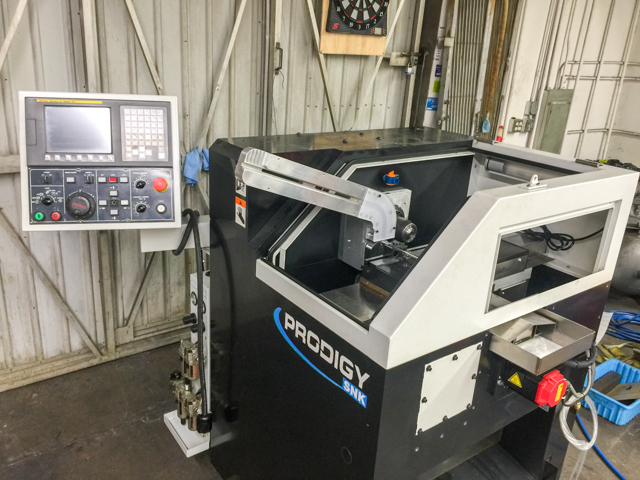

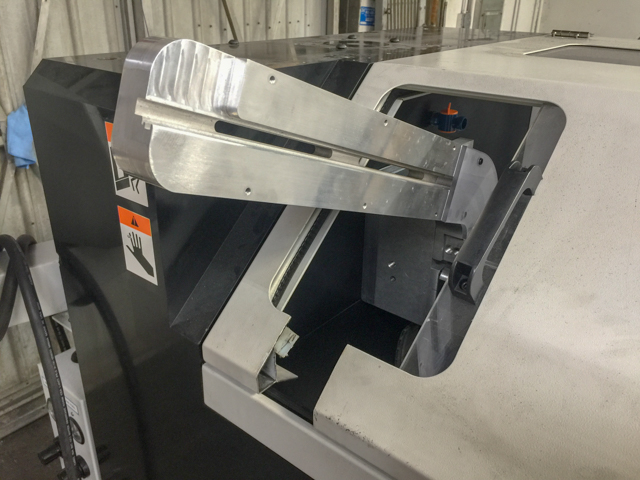

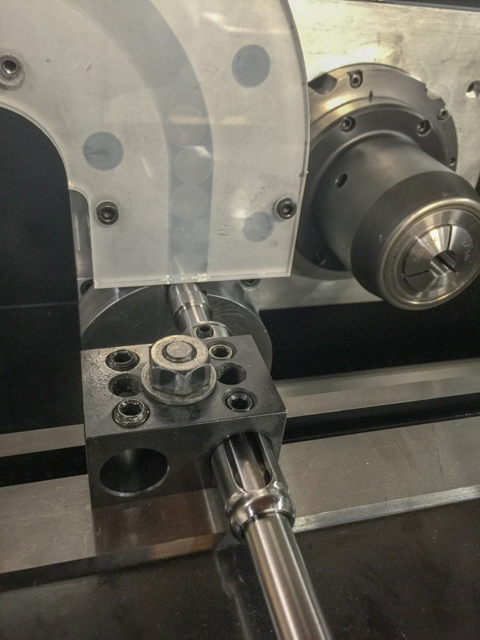

GT-27 Prodigy with Fanuc controls automated with gravity loader system. A very easy approach to loading parts into the lathe. We can offer the same approach with the new GT-30 models. Fanuc Automation Products and Robotics by CNC New, Inc has various options, including the GT-27 Prodigy to suit your needs.
X-Axis Travel: 12" (305mm)
Z-Axis Travel: 6.5" (165mm)
C Axis Indexing Increment: Indexes at every 0.001*
Feed Rate: 300 IPM
Rapid Traverse: 800 IPM
Spindle Motor: 7.4hp
Spindle RPM: 100 to 6000
Spindle Bore: 1.0625" (27mm)
Maximum Bar Size: 1.0625" (27mm)
Tool Block Center Height: 0.5" (12.7mm)
Spindle Nose: 5C
Maximum Chuck Size: 4" (101.6mm)
Voltage: 208-230V
Power Requirements: 7.5KVA
Machine Weight: 3840lbs
Machine Dimensions : 38" x 34" x 47"
