Spindle Bore 2.21 in, 56 mm; Drawtube Bore 1.77 in, 45 mm

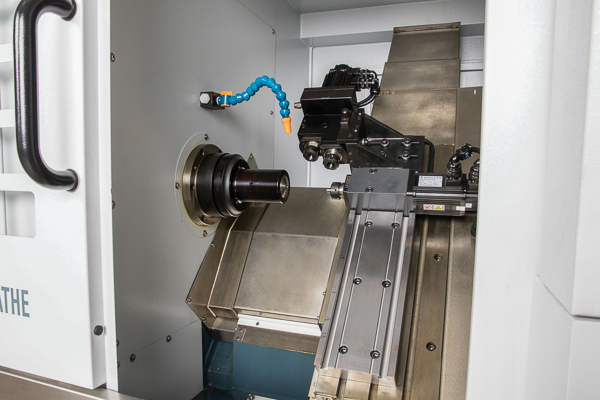

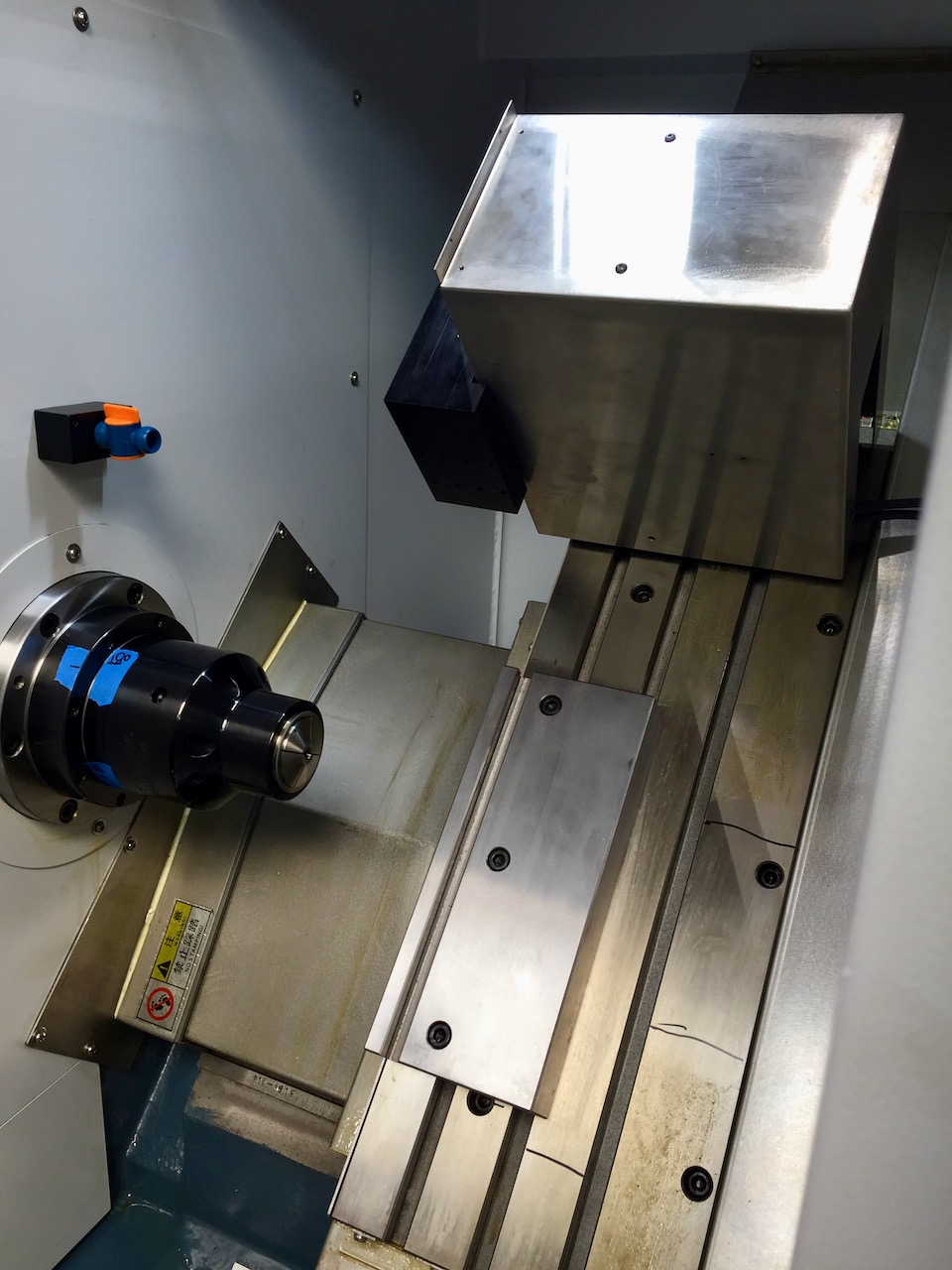

We are delighted to present the GT-10 and other models of gang tool lathes that are affordable for Mill-Turn options for turning centers. We are confident that you will find this product a versatile, flexible, and reliable addition to your company’s manufacturing capabilities. Our single-piece heavy casting is the culmination of years of experience in machine tool manufacturing and offers the best features for gang tool and turret lathe construction
X-Travel: 18”
GT-10 Specifications
|
Capacities
|
S.A.E
|
Metric
|
|
Max Turning Diameter
|
14.1 in
|
360 mm
|
|
Max Swing Over Table
|
5.1 in
|
130 mm
|
|
Bar Capacity
|
1.77 in
|
45 mm
|
|
Travels & Feedrates
|
|
|
|
X-Axis Travel
|
17.75 In
|
444 mm
|
|
Z-Axis Travel
|
13 in
|
330 mm
|
|
Rapid on X-Axis
|
590 in/min
|
15 m/mm
|
|
Rapid on Z-Axis
|
787 in/min
|
20 m/mm
|
|
Axis Max Feed Rate
|
400 in/min
|
10.15 m/min
|
|
Spindle
|
|
|
|
Power Rating
|
10hp (Optional 15hp)
|
7.5 kw (opt. 11 kw)
|
|
RPM
|
15 – 4,500
|
|
|
Spindle Bore
|
2.21 in
|
56 mm
|
|
Drawtube bore
|
1.77 in
|
45 mm
|
|
Spindle Nose
|
A2-5
|
A2-5
|
|
Collet Actuator
|
Hydraulic Cylinder
|
|
|
Base
|
|
|
|
Integral Casting
|
One Piece Construction
|
Slant Angle 45-degree
|
|
Rail Span
|
17.32 in
|
440 mm
|
|
Casting Weight
|
3300 lbs
|
1500 kgs
|
|
Linear Rails
|
X/Z: 1.81”, in P Accuracy
|
X/Z: 30mm in P Accuracy
|
|
Ball Screws Precision
|
X/Z: Ground 1.26” in C3 Accuracy
|
X/Z: Ground 32mm in C3 Accuracy
|
|
Auto Lubrication
|
Linear rails and ball screws
|
|
|
Head Stock
|
Cast Iron
|
|
|

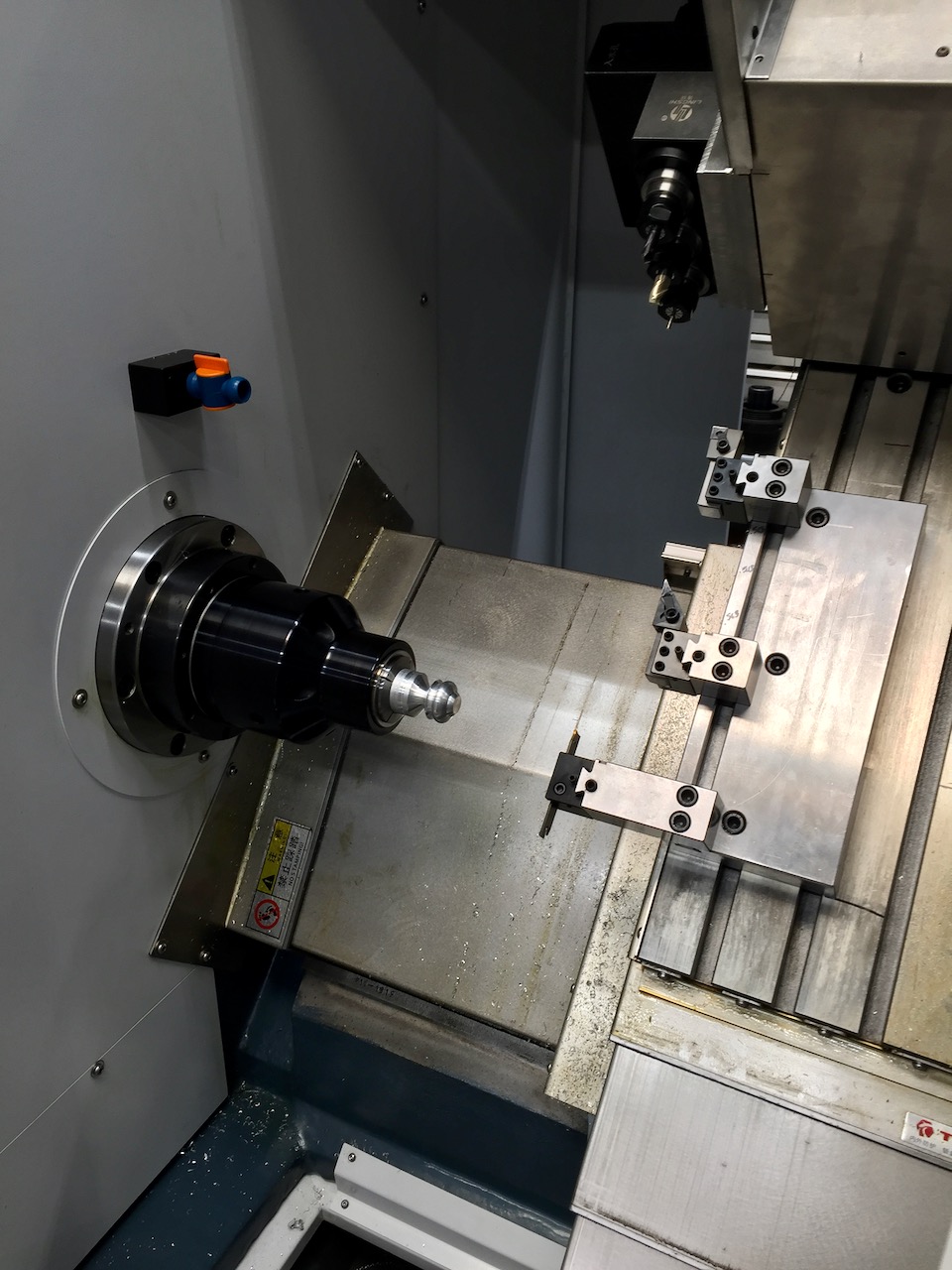

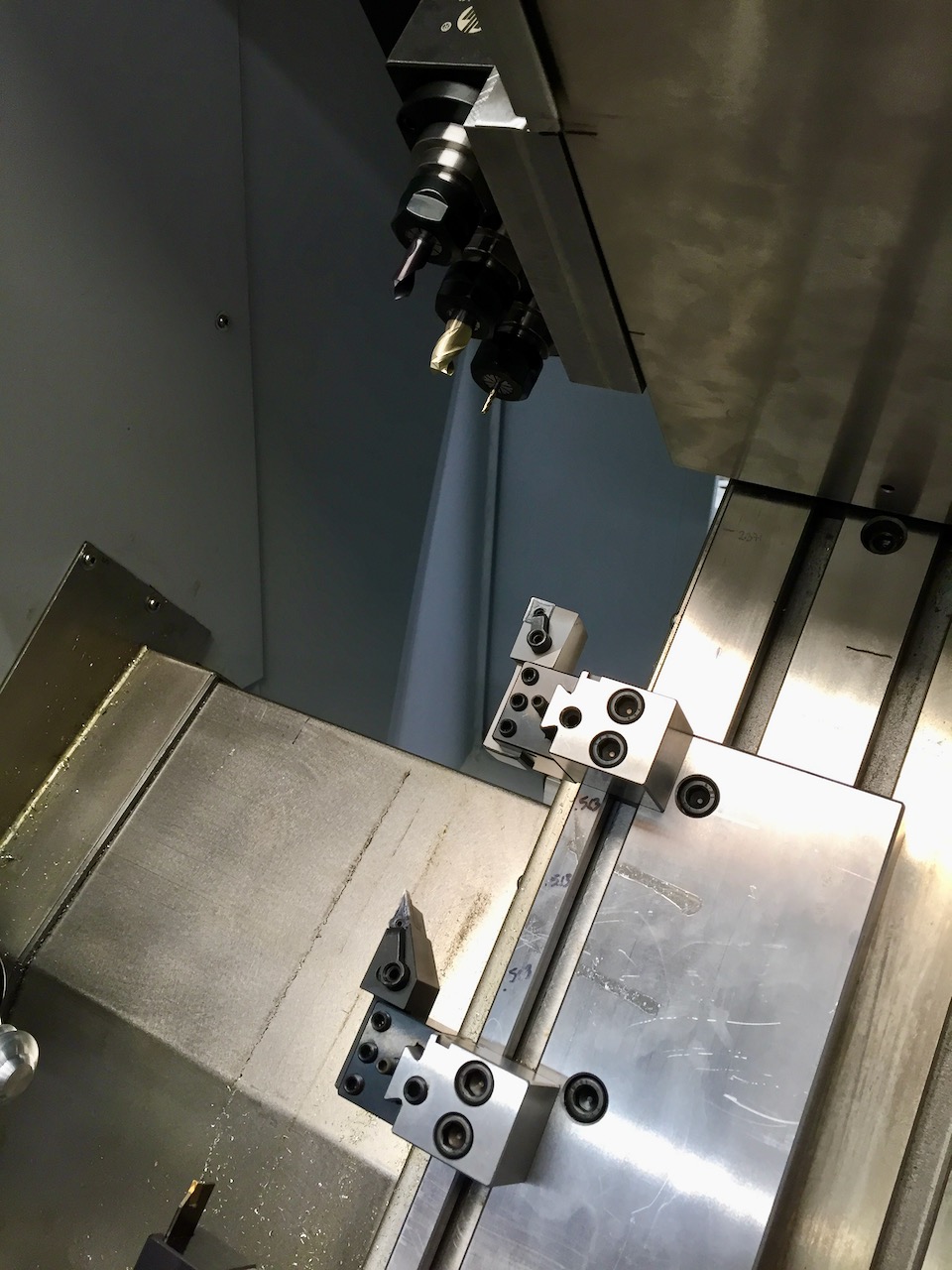

Turret Work Holding
|
|
|
|
Gang Turret Table HT.
|
2.756 in
|
70 mm
|
|
Table Length T-Slot
|
24.41 in
|
620 mm
|
|
Chuck Size
|
6 in
|
|
|
Collet Nose Options
|
A2-5
|
|
|
Center Height Holders
|
¾” standard tool holders
|

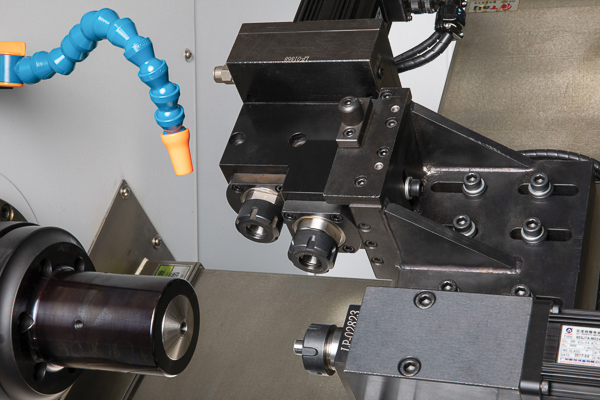

Custom live tool holders, etc.
|
|
Precision
|
|
|
|
Positional Repeatability
|
±0.0001 (one-tenth)
|
0.00254 mm
|
|
Positional Resolution
|
±0.00005(50 millionths)
|
0.00127 mm
|
|
Positional Accuracy
|
±0.0001 (one-tenth)
|
0.00254 mm
|
|
Spindle Runout
|
0.00005 (50 millionths)
|
0.00127 mm
|
|
C-Axis Indexing
|
Increment 0.001°
|
360,000 Radial Position
|
|
Requirements
|
|
|
|
Coolant Capacity
|
18.5 gallons
|
70 Liters
|
|
Coolant Pump
|
3/4 hp
|
0.5 Kilowatt
|
|
Power Required
|
16 KVA- 42 amps
|
Voltage 208-240 VAC 3-Phase
|
|
Machine Dimension
|
|
|
|
Floor Space L X W
|
68 x 35 in
|
1730 x 890 mm
|
|
Machine Height
|
63 in
|
1600 mm
|
|
Sheet Metal Length
|
87.4 in
|
2220 mm
|
|
Sheet Metal Width
|
56.6 in
|
1438 mm
|
