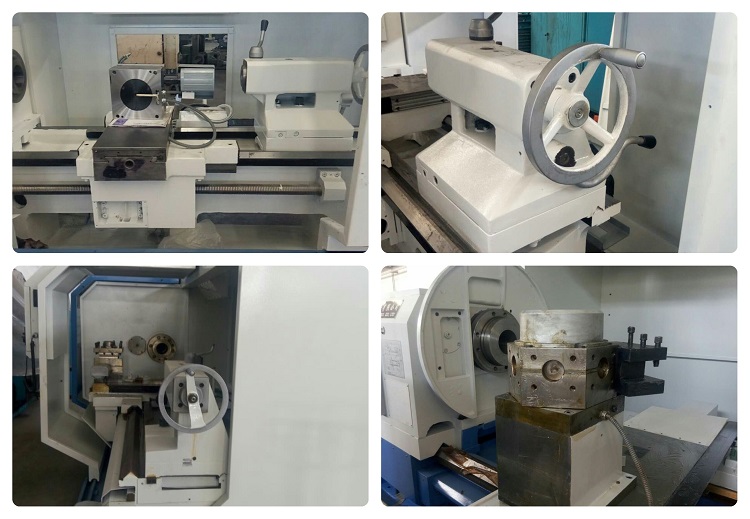

We are delighted to present the FL2050 Turret lathe: Standard Features include GSK 980TDi CNC Control with GSK motors and drives with absolute encoders, 4-Position Turret, automatic lubrication pump, 3-Jaw manual chuck, manual tailstock, work light, tailstock center, meter/inch box, tool box with tools, complete set of manuals, Two year warranty GSK components, one-year warranty on the mechanical components of the machine. Optional Features: Hydraulic chuck, pneumatic chuck, hydraulic tailstock, pneumatic tailstock, 6-Station Turret, bar feed system and other optional CNC control models.
CNC Software/Hardware: 980TDi CNC control full-featured control with 2ms block processing and programs with G-codes and M-functions. Encoders: 17-bit absolute, C-Axis.
Standard Features: 4-Axis simultaneous control 5-axis digital feed control 2-axis analog feed control, LAN interface Ethernet Port, Complex Curve Surface Machining speed: 8m/min Optimum Machining speed: 4m/min, Max. Positioning speed: 60m/min max Feed-Rate: 15m/min, 1000 block look-ahead and spline interpolation, Excellent high-precision and high-speed interpolation
Supports macro programs (Macro B) more concise programs, Supports PLC online monitoring, edit, compile and signal follow functions, Supports multiple languages with a change of a parameter
Supports RS232, USB, and network interfaces and data transfer, DNC machining and USB on-line machining, Color LCD monitor with 800 X600 resolution 8.4 or Optional 10.4
Rigid tapping, Graphic programming, run and test program by hand wheel, 208v (Range 190-240) 3-phase system electronics
