We are delighted to present the DSPTT-40 Mill-Turn dual-spindle turning the with C-Axis and a power tool driven turret to create a powerful "done in one" machining solution. Off center milling, drilling and tapping operations are possible for increased machining capabilities. The opposed spindles support fully synchronized turning, and allow on-the-fly part pass-off to reduce cycle times. These machines offers the widest selection of options at the very best value in it's class. This dual spindle model has an A2-6 main spindle and counter spindle nose.

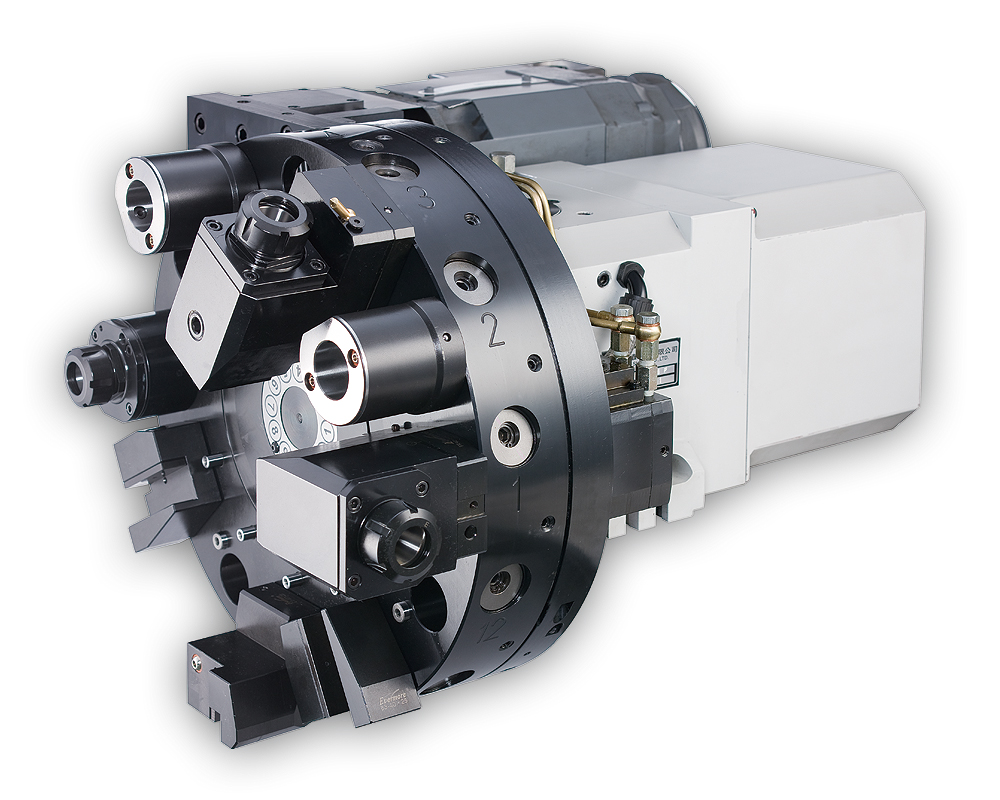

The DSPTT-40 Mill-Turn Dual Spindle Twin turret tuning centers have a LS-200DTR 12-Station Servo Turret manufactured by Lio Shing one of the largest manufactures of turrets in Taiwan with a gear ratio of 1-1, Hydraulic power source: P=40 kg/CM2, and clamping force of 4,240. Design includes three-piece type curvic clutch ensures high precision accuracy. Tool holders are driven by a servomotor that features high torque output and with low noise. Repeatability accuracy reaches 0.003 mm. 4,000 maximum high speed. Inside mechanism employs parallel cam, featuring high indexing accuracy and fast tool change.
Turret clamping/ unclamping is operated through hydraulic power, assuring smooth motion and permitting for heavy duty machining. The turret can be mounted at right or left side with random tool selection function. Tool Shank Specifications: VDI40, DIN5480 W20 X 0.8/, BMT65-ER32 Other turret options available on request. We have the most affordable magazine bar feeds in the industry and the same for robotic arm loaders. The DSPTT-40 uses the NEW 988TD CNC control is a dual-channel turning center CNC control developed by GSK Equipment Co., LTD. And is based on ARM+DSP dual core hardware architecture by connecting with the industrial Ethernet bus with the (GSK-Link), the servo drives and a remote I/O unit.
The 988TD can control up to 10 axis and 4 spindles, each path includes 6 feed axis (including C Axis) in each path, 3-axis link and 3 spindles to realize the turning with compound milling operations. The servos motors use high-resolution absolute encoders that provide 0.1 m position precision, and 1ms interpolation period to perform a turning-milling compound machining and can provide the control performance for multi-axis turning and machining centers.
