B432 Magazine Type Servo Controlled Bar Feed Sizes .04~ .032 mm

Request Quote

832-B432 Magazine Type Servo Controlled Bar Feed Sizes .04~ .032 mm, .3~1" diameters, and feed lengths 1000~3200 mm lengths, 39" to 12.5' maximum lengths.

Year: New
Location: Southern, CA
Status: New
Manufacturer: CNC Partner
addthis

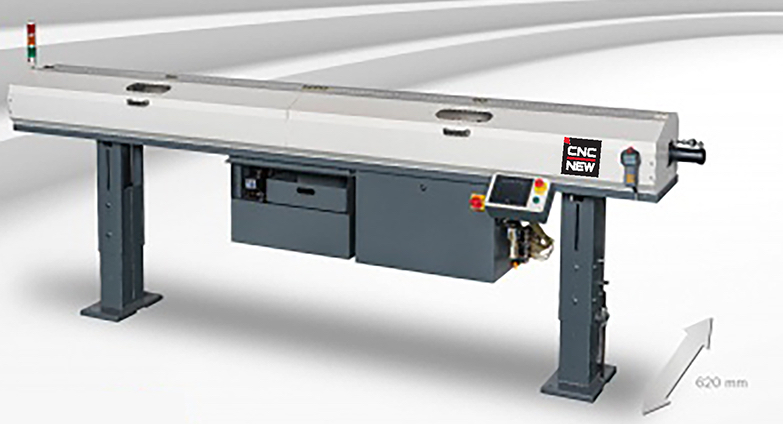

Bar Feed B326 is a servo-driven bar feed for both sliding headstock and fixed headstock machines with the range of sizes .03~ .032 mm, .04~1-3/8" diameters, and feed lengths 1000~3200 mm lengths, 39" to 12.5' maximum lengths. High stability, high efficiency, and low noise unit. This unit is a one-piece fabricated machine body, which features maximum durability and stability. The system allows for quick and convenient replacement of bar channels. Roller-type anti-vibration can be adjusted according to bar sizes. Magazine capacity 010 (22) Pieces.

The clamping mechanism mechanical structure ensures stable and smooth bar clamping in/out motions. The hand-wheel control box operator can make adjustments to the workpiece. User-friendly HMI touch screen LCD display and malfunction alarm, easy to set up and operate the system. Bar feed controlled by a Mitsubishi AC servo motor providing fast and smooth motions with high positioning accuracy of the bar. The unit has a built-in powerful discharge pump that delivers oil to the bar channel to form an oil film that surrounds the bar. These bar feeders utilize a Mitsubishi PLC controller enabling the entire motions to be operated smoothly. This bar feed can work with any CNC machine tool. The control system consists of high-quality electronic components that ensure maximum stability of control performance and a very long reliable service life. Two-year warranty.



Bar Feed Specs : SAE METRIC

Model Number: 832-B432
Controller & Operation Interface: PLC Control & HMI Touch Panel
Range of Bar Diameters: .04~1-3/8 in 1000~3200 mm
Maximum Bar Length: 12.5" ft, 3200 mm
Magazine Capacity: .39 in 10 mm 21 Bars
Feed Drive: AC Servo Motor
Machine Weight: 1280 lbs., 580 kg
Machine Length: 12.9' ft, 3950 mm
Machine Heigth : 33~51 in, 1000~1300 mm
Height of Spindle : 35~45 in, 850~1150 mm
Machine Width: 26 in, 660 mm
Power Supply: 220-Volt
