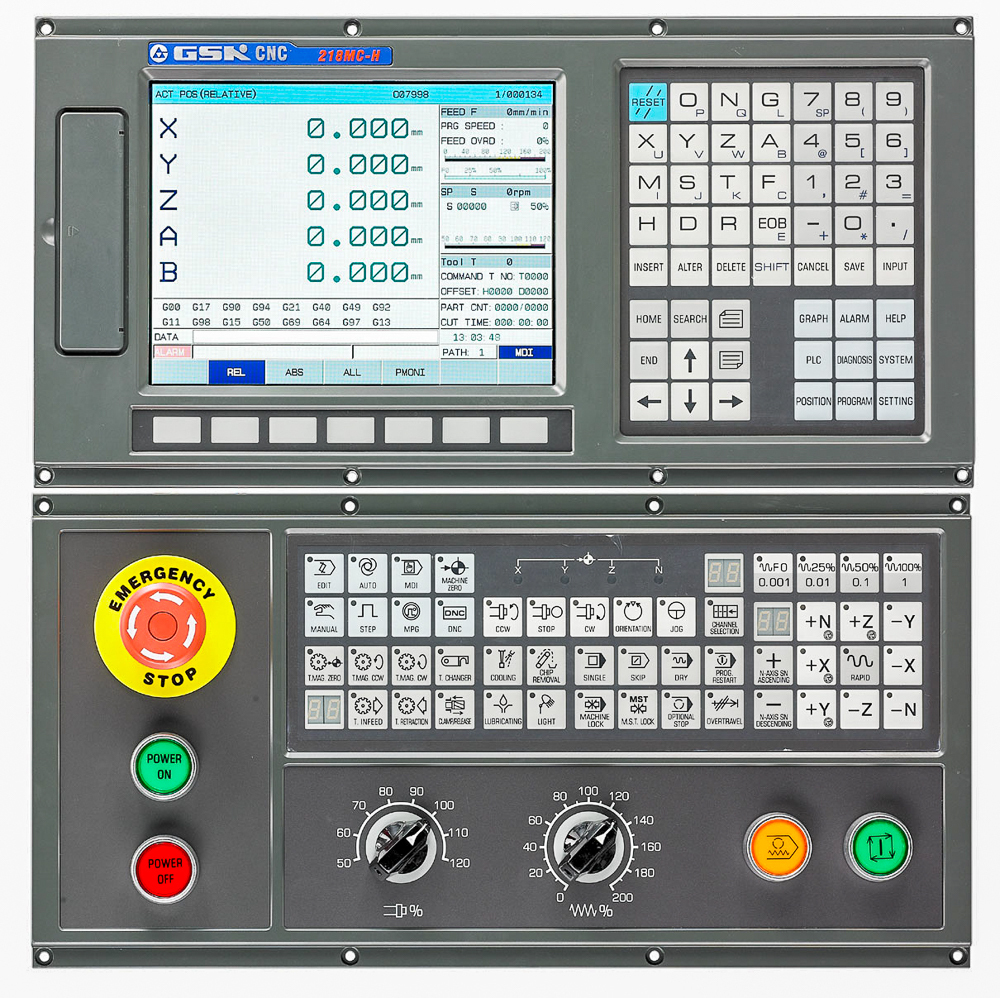

GSK218MC-H: Is a high-speed spline interpolation algorithm designed to control providing precision surface finishes and is an excellent control for mold making. The CNC system supports GSK-link Ethernet bus function and is very easy to connect and supports and supports macro programs (Marco B) for very precise programming. Hardened CNC control where the software is burnt directly into the eproms of the hardware maximizing the reliability of the system. The GSK218MC-H works with the GSK GS series AC servo drives and motors.
This control is available with a wide selection of motor sizes and drives. Our standard motors come in 80 mm, 110 mm, 130 mm and 175 mm flange sizes with a wide range of torque to select from. Programming, post processors and operation compatible with Fanuc CNC controls. The modular design is extremely reliable as well as easily serviced or replaced. Call for a price quote based on the number and size of the motors and drives required. Components can be sold loose or as a pre-wired kit with a complete electrical box and CNC control enclosure and on one of our economical machining center models.
