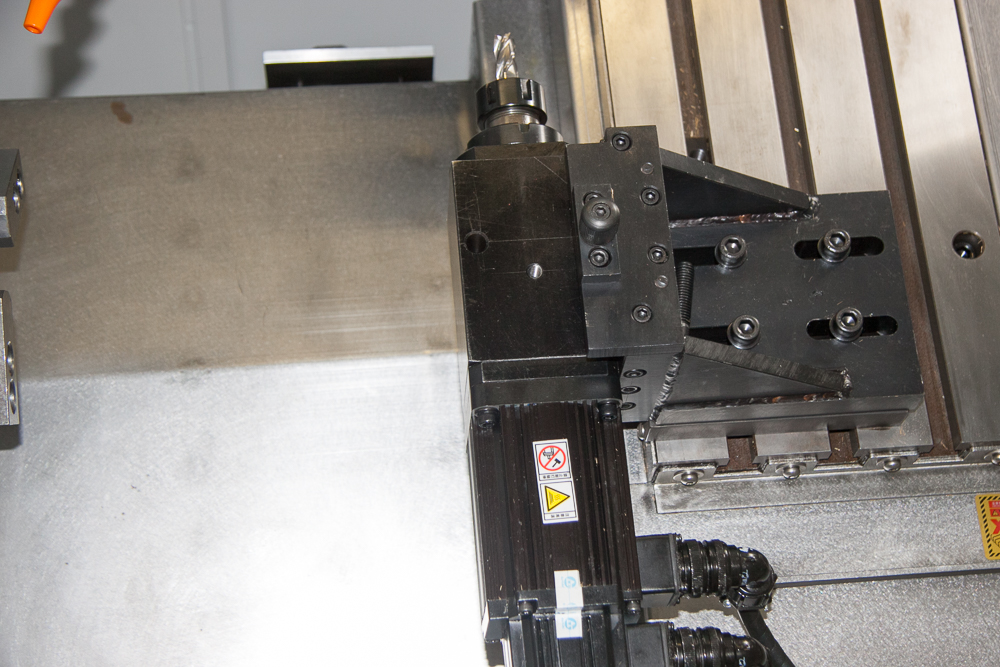

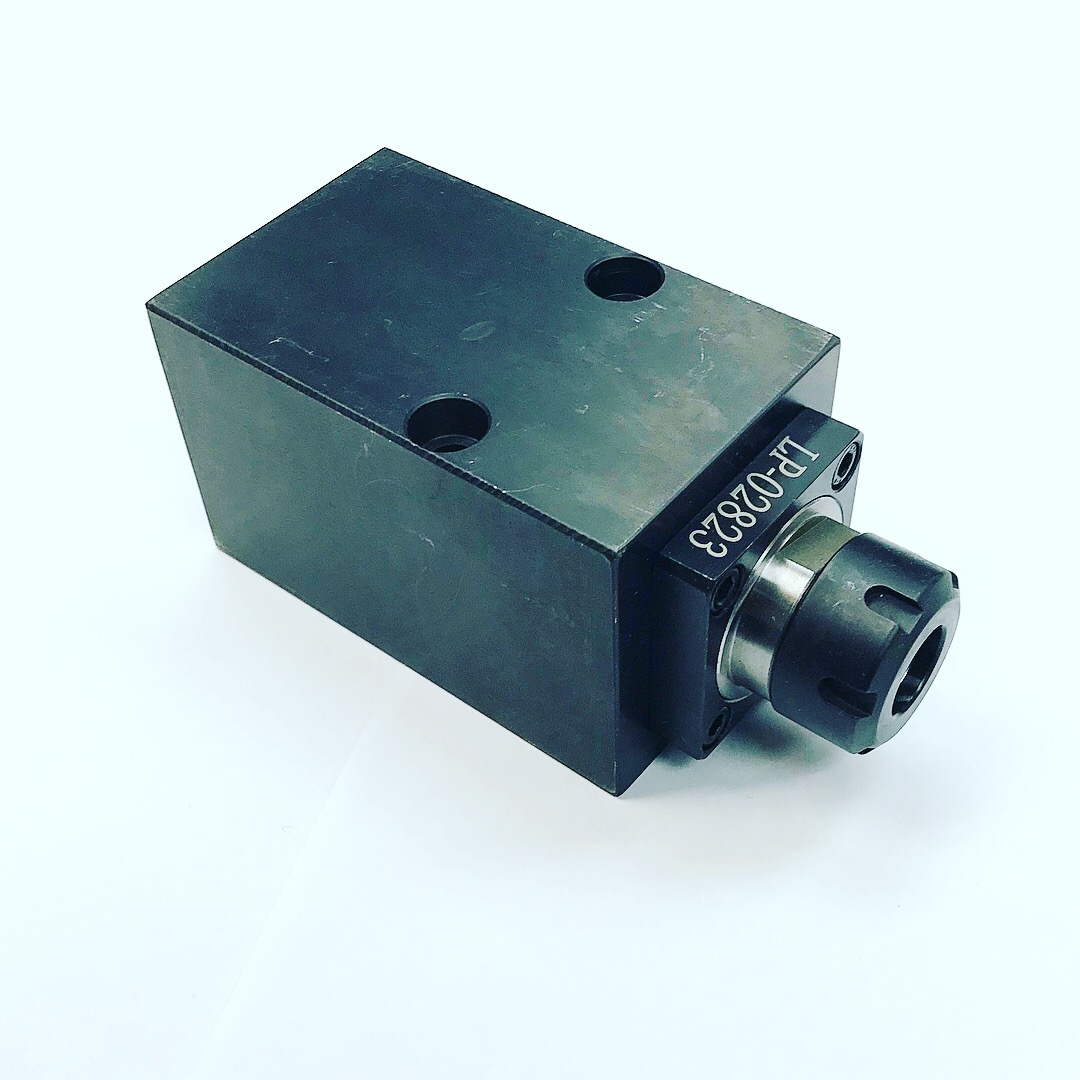

This spindle has an ER-25 collet and is gear driven with a 1kw motor with a rated torque of the 3.2Nm motor. This system is an aggressive cutting single, double, spindle package that can be mounted in axial or radial positions. With the larger models of lathes, we also offer twin spindle axial and radial tool systems as well as a vertical or Y-Axis type system. Includes motor, drive spindle and attachment for the selected system. The motor is a high-performance rare earth permanent magnet material with long-term continuous work in rated working mode. Included with a matching AC servo driver to realize optimum servo performance.
