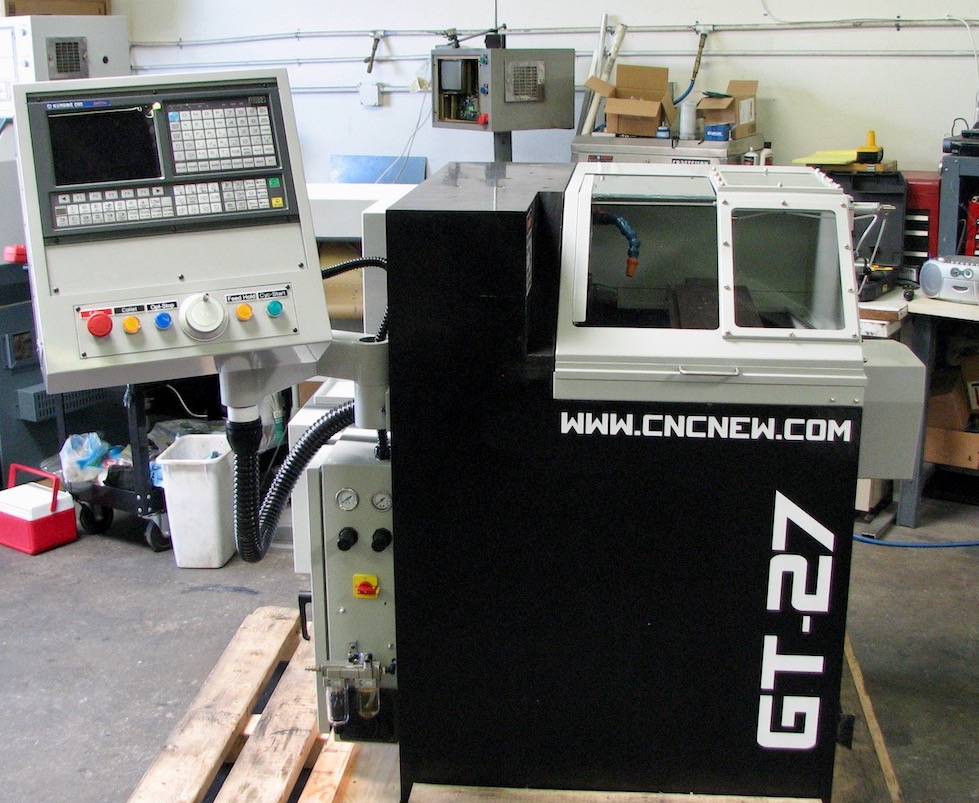

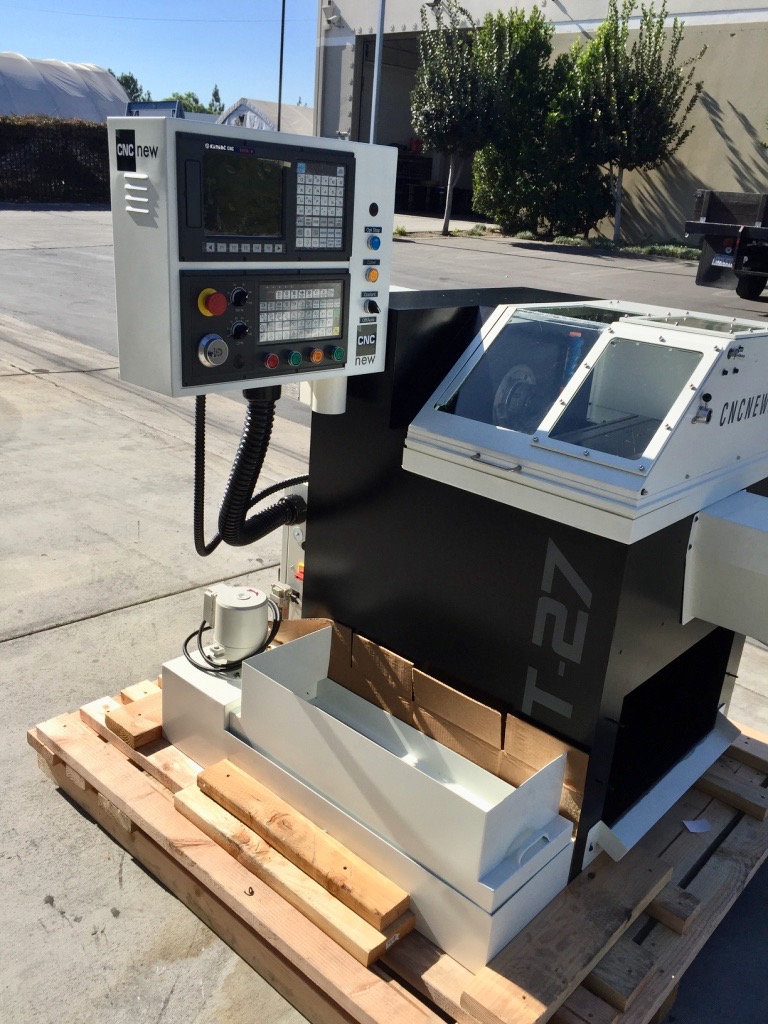

Check out GT-Xpress completely remanufactured with the latest GSK 98TDi with a 5hp Servo Spindle motor and drive with C-Axis. This machine has a five-bearing 6,000 rpm spindle and is produced from a 3,000 lbs polymer base. This machine has a 12" X-Axis travel and is built with a 1/2" center height tool plate. They are a lot of work but beautiful once complete.
X-Axis Travel: 12"
Z Axis Travel: 6.5"
Spindle Motor: 3hp
Spindle RPM: 100 to 4000
Spindle Bore: 1 1/16"
Spindle Nose: 5C
Maximum Chuck Size: 5"
Maximum Bar Size: 1 1/16"
Feed Rate: 300 IPM
Rapid Traverse: 800 IPM
Positioning Accuracy: .0001"
Positioning Repeatability: .00005"
Voltage: 230VAC
Machine Weight: 3240lbs
Machine Dimensions : 34" x 34" x 47"
