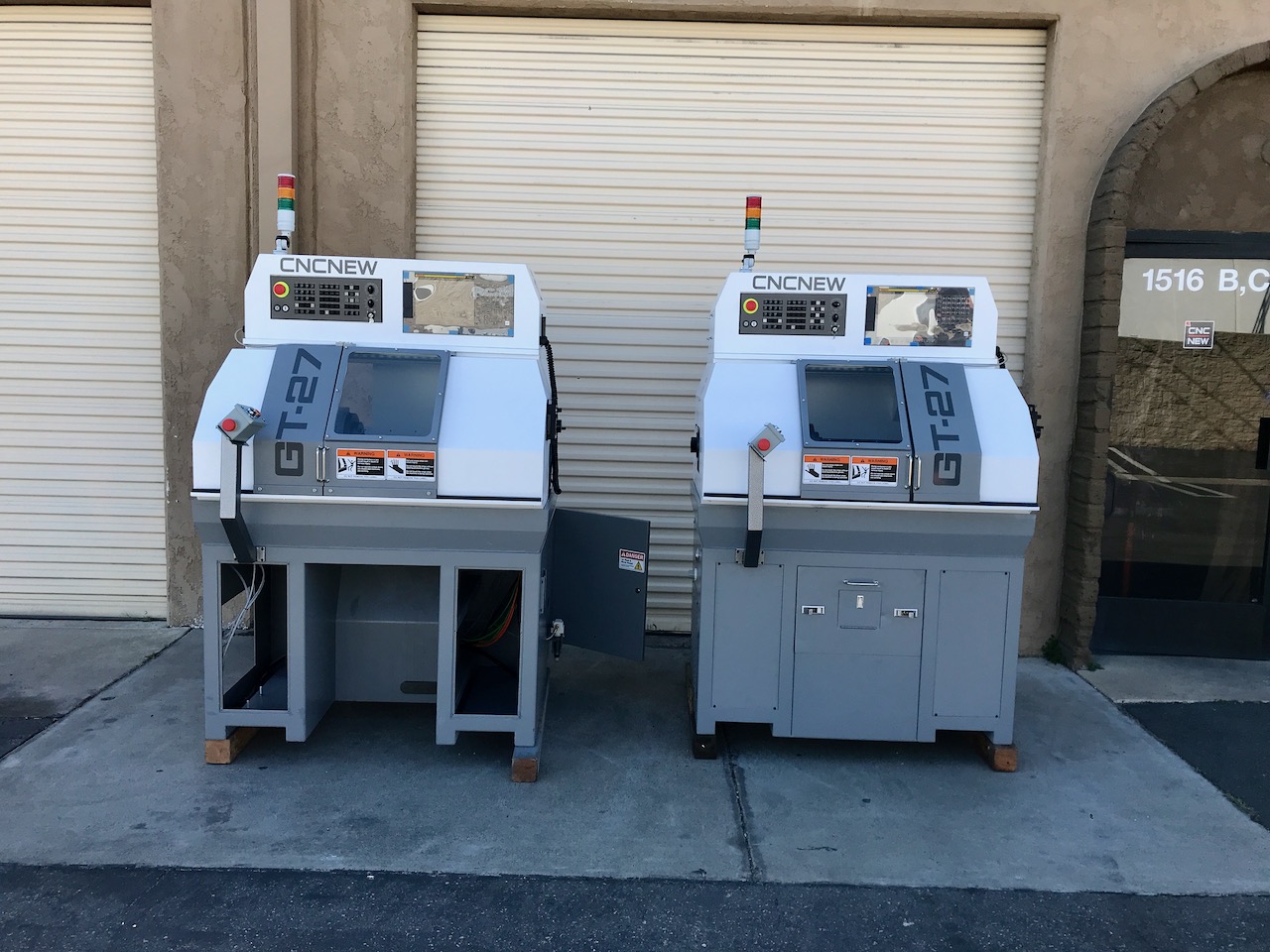

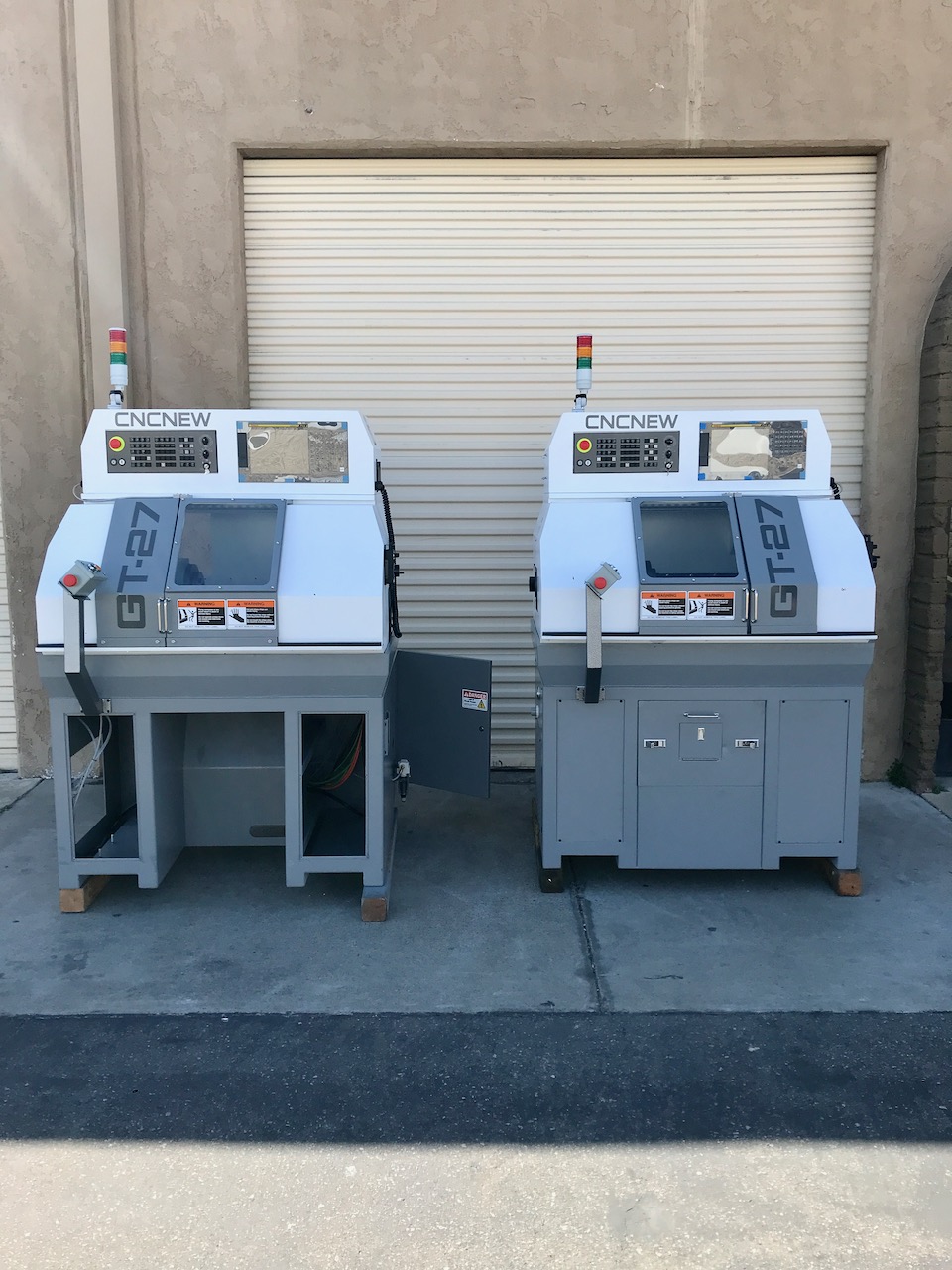

Factory-rebuilt machines with the option of adding Fanuc 0TiD CNC controls. We are replacing or repairing ball screws, and linear rails, and adding much larger axis motors. Full C-Axis servo spindle drives. Call for a quote with the options that you would like included.
X-Axis Travel: 11.75" (215mm)
Z-Axis Travel: 8.5" (298mm)
Spindle Motor: 5hp
Spindle RPM : 0 to 4500
Spindle Bore: 5/8"
Maximum Bar Size: 1 1/16"
Spindle Taper: 5-C
Spindle Nose: ANSI A-3 or A2-4
X-Axis Thrust: 600lbs
Z Axis Thrust: 900lbs
Interpolated Feed Rate: 250 IPM
X & Z Axis Rapid Traverse Rate: 600 IPM
Positioning Accuracy: .0001"
Positioning Repeatability: .00005"
Floor Space to Spindle Center: 40"
Machine Weight: 2800lbs
Machine Dimensions : 48" x 36" x 70"
