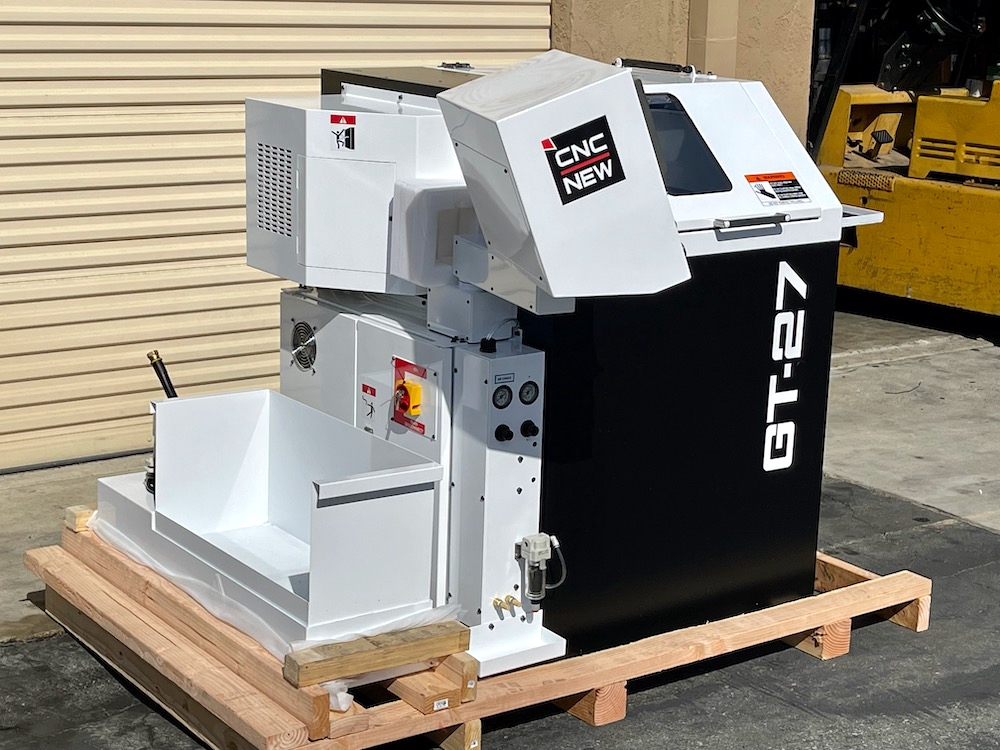

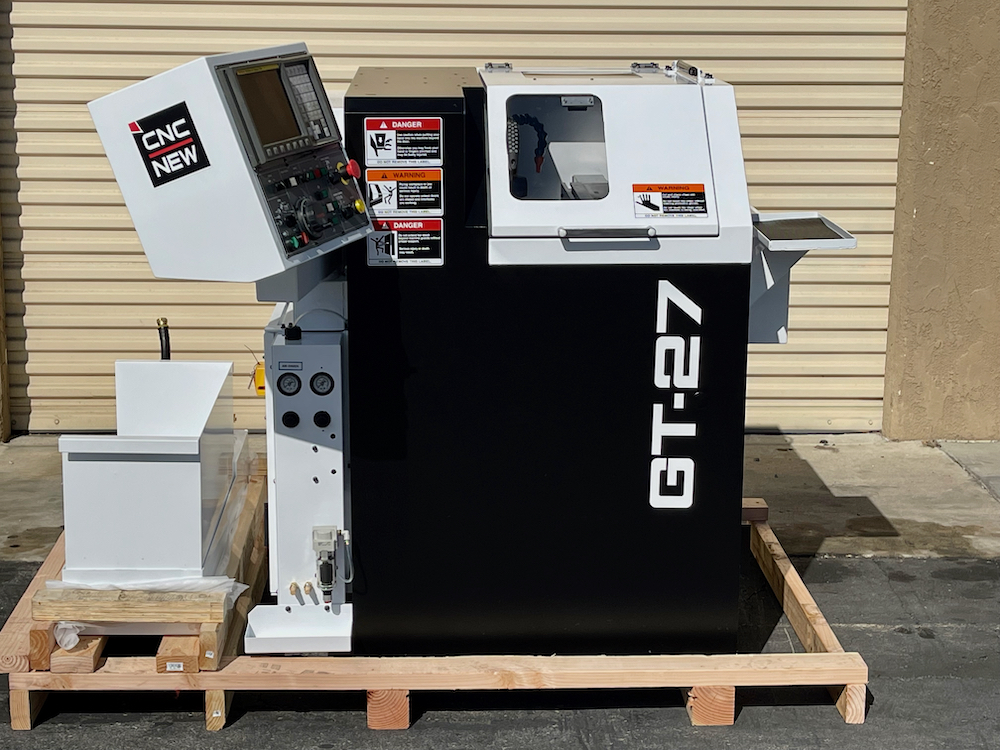

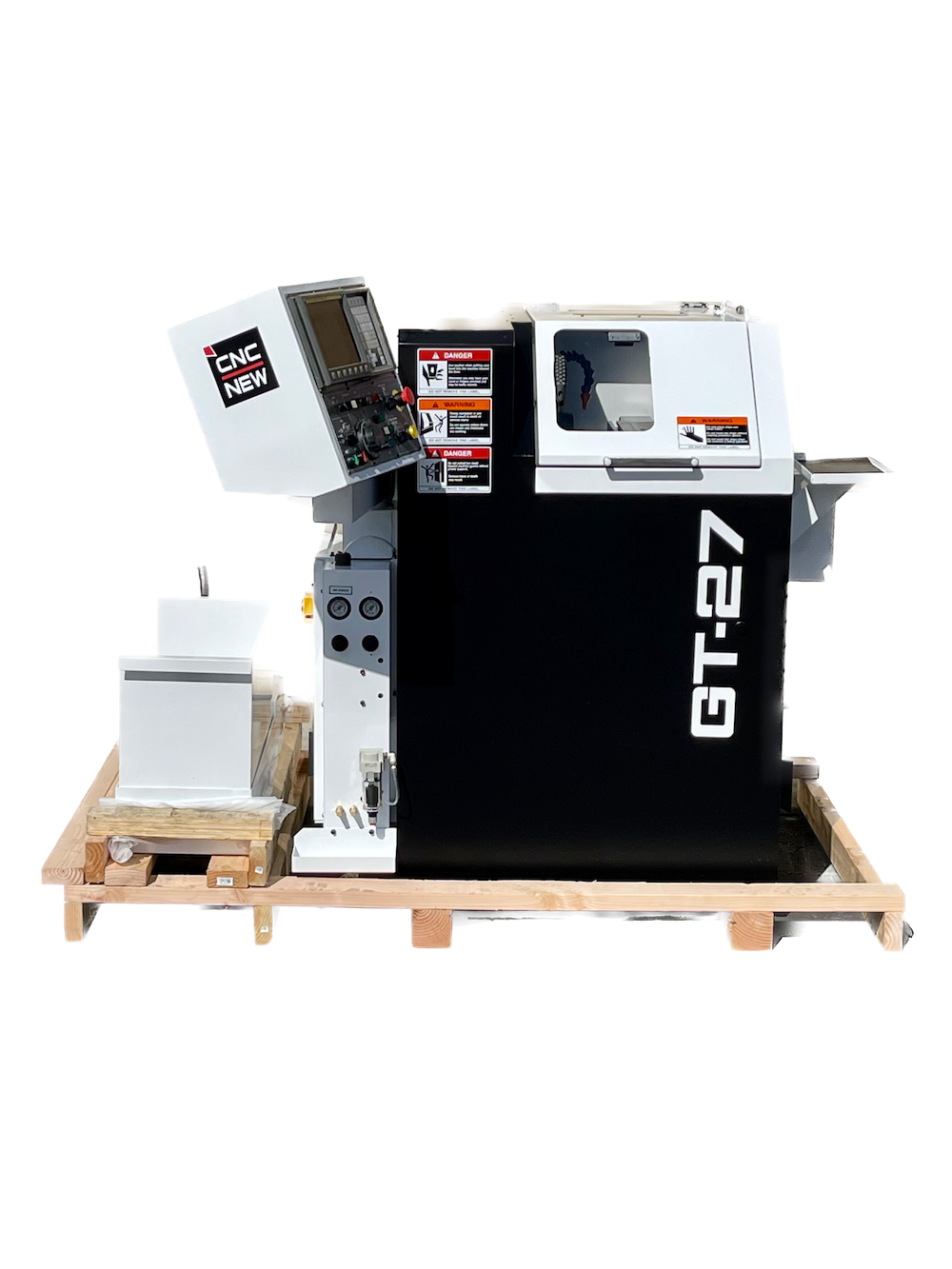

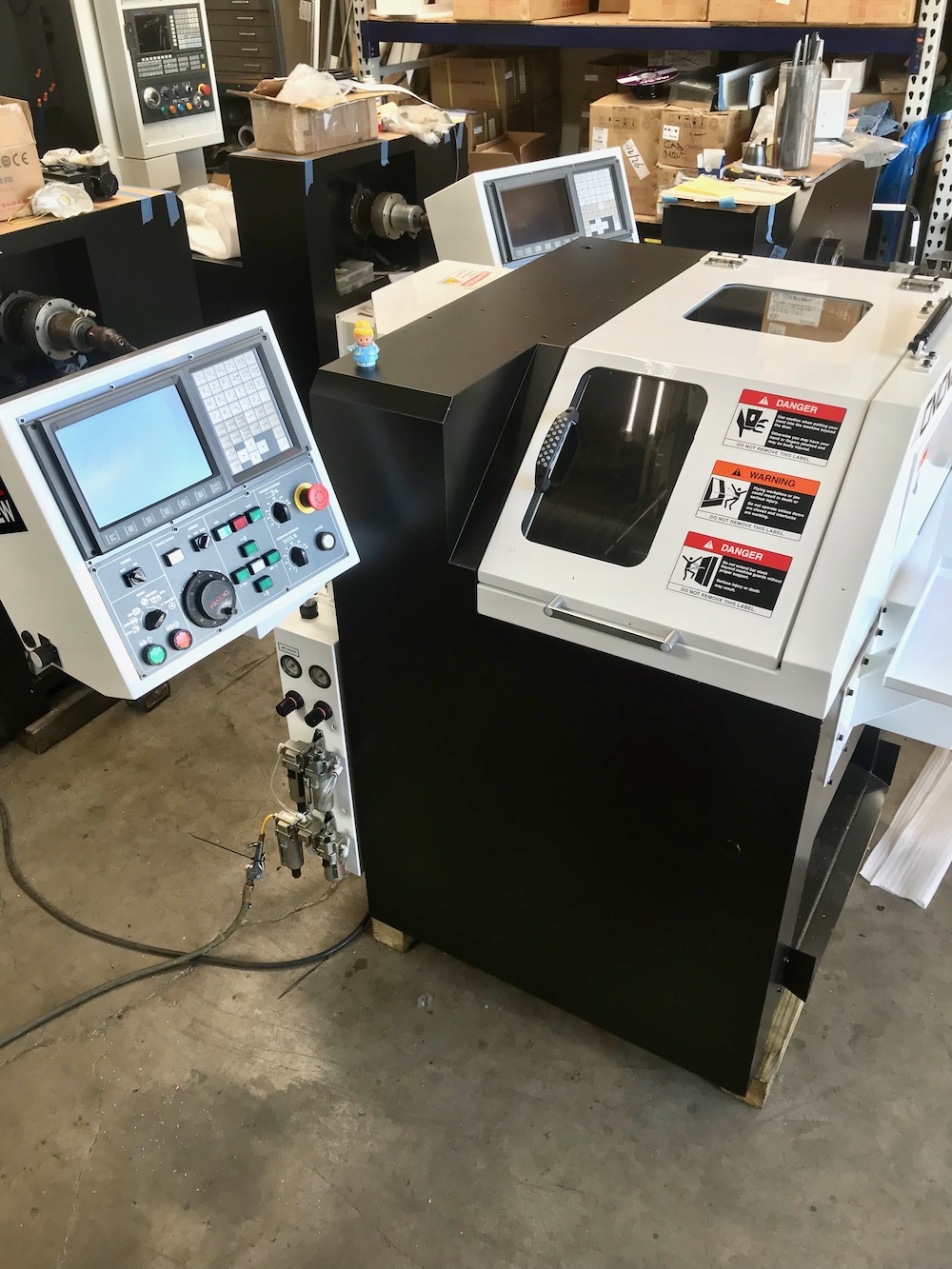

The CNC New GT-27 is retrofitted with Fanuc 0i-TFP from our facility in Santa Ana we can produce machines with specific features and accessories. We can build the machine in an effort to meet your budget and your machining requirements. With the high-performance spindle motor and drive the machines will provide the maximum number of duty cycles per minute and can perform C-Axis contouring moves. CNC New, Inc. provides sales and service for the GT-27 in the United States, Canada, and Mexico. The polymer base construction of the GT-27 makes it a perfect building block for automated production projects. Send sample parts for evaluation. Call to discuss the possibilities.
X-Axis Travel: 12" (305mm)
Z-Axis Travel: 6.5" (165mm)
C Axis Indexing Increment: Indexes at every 0.001*
Feed Rate: 300 IPM
Rapid Traverse: 800 IPM
Spindle Motor: 7.4hp
Spindle RPM: 100 to 6000
Spindle Bore: 1.0625" (27mm)
Maximum Bar Size: 1.0625" (27mm)
Tool Block Center Height: 0.5" (12.7mm)
Spindle Nose: 5C
Maximum Chuck Size: 4" (101.6mm)
Voltage: 208-230V
Power Requirements: 7.5KVA
Machine Weight: 3840lbs
Machine Dimensions : 38" x 34" x 47"
